96 Adding and Replacing Parts
www
.dell.com | support.dell.com
NOTICE: To avoid damaging the Mini PCI card, never place cables on top of
or under the card.
NOTICE: The connectors are keyed to ensure correct insertion. If you feel
resistance, check the connectors and realign the card.
2 Align the Mini PCI card with the connector at a 45-degree angle, and
press the Mini PCI card into the connector until you hear a click.
3 Connect the antenna cable(s) on the Mini PCI card to the antenna
connector(s) on the computer.
4 Replace the cover, and tighten the screws.
Adding a Modem
If you ordered the optional modem at the same time that you ordered your
computer, the modem is already installed.
1 If a modem is not already installed, go to step 2. If you are replacing a
modem, remove the existing modem:
a Remove the screw(s) securing the modem to the system board.
b Pull straight up on the attached pull-tab to lift the modem out of
its connector on the system board, and disconnect the modem
cable.

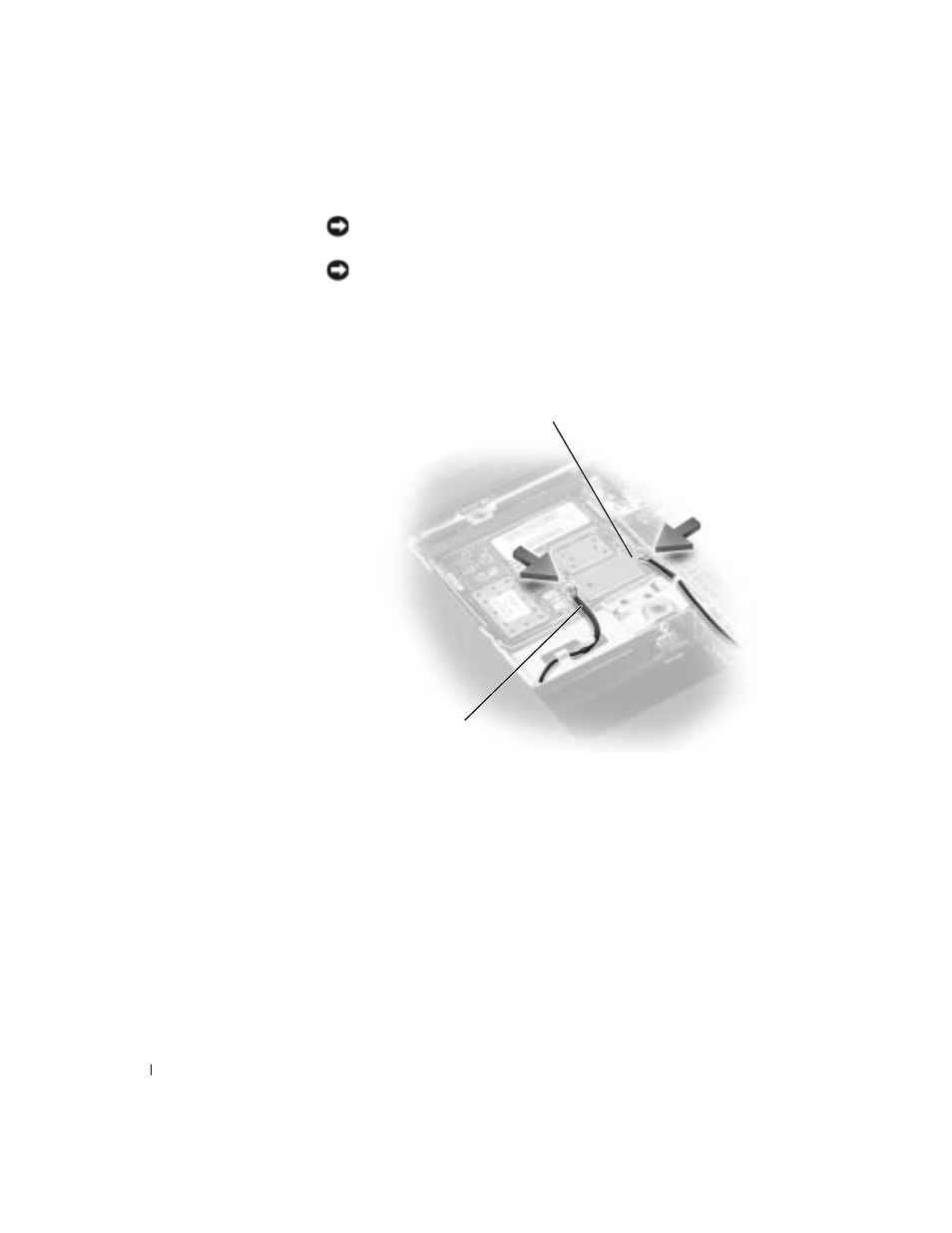

antenna cables (2)
antenna connectors on card (2)
