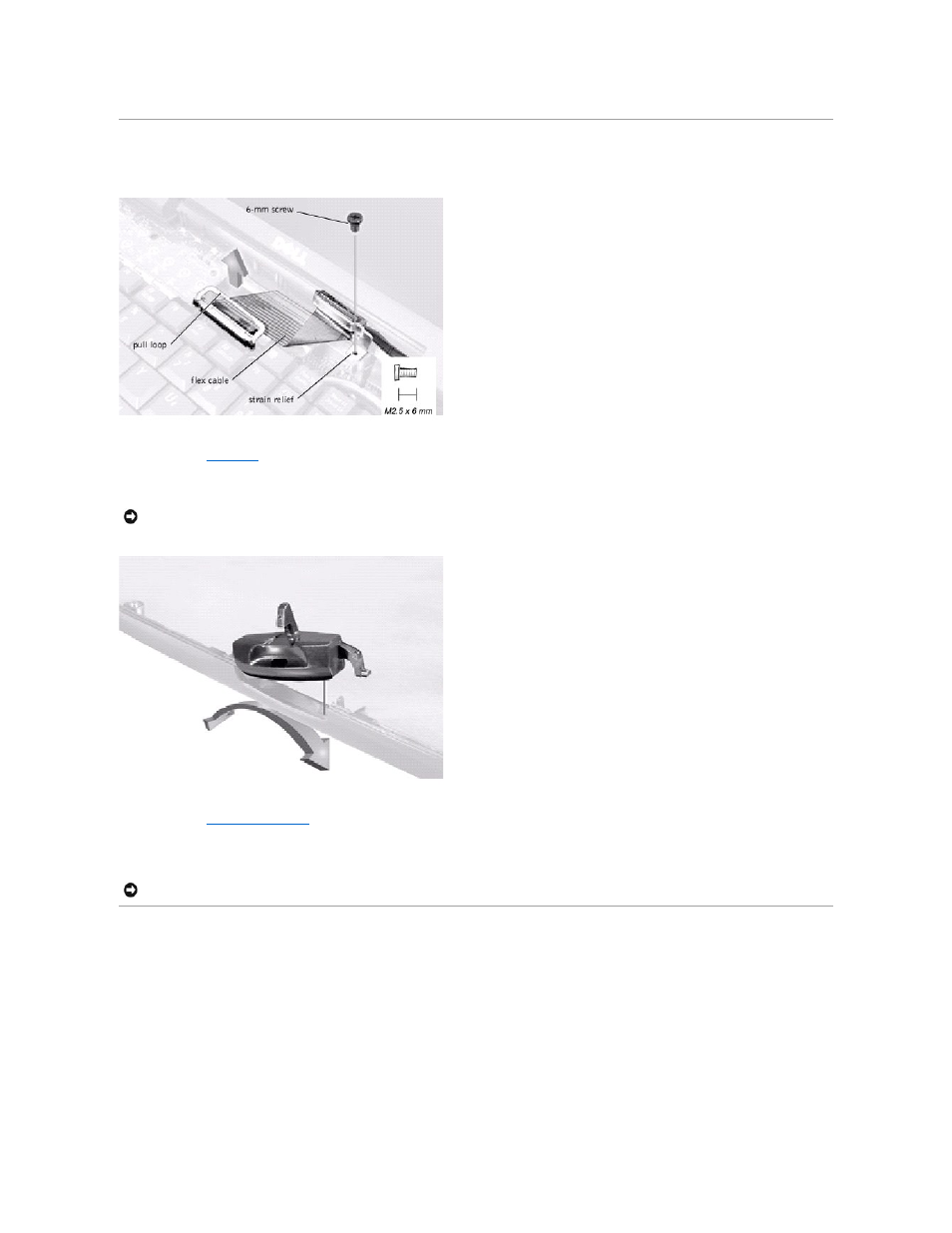

Display Latch Assembly
1. Remove the hinge cover .
2. Remove the screw securing the flex cable to its strain relief, and then use the pull loop to remove the flex cable from the system board memory cache
card.
3. Remove the display assembly bezel .
4. Remove the display panel from the top cover.
5. Remove the display latch by unsnapping the latch and captive spring.
Microprocessor Thermal Cooling Assembly
NOTICE: When reconnecting the flex cable, press down on both ends of the connector, not in the middle. Pressing the middle of the connector can
damage fragile components.
NOTICE: When replacing the display assembly latch, it may help to flex the cover slightly to allow more space while seating the latch.
