Dell MD Storage Array vCenter Plug-in | 20
Clicking the icon will open the Storage Array Manager view where you can manage Dell storage arrays. The
Storage Array Manager view displays a list of known storage arrays and lets additional storage arrays be added
or removed. See Figure 14.

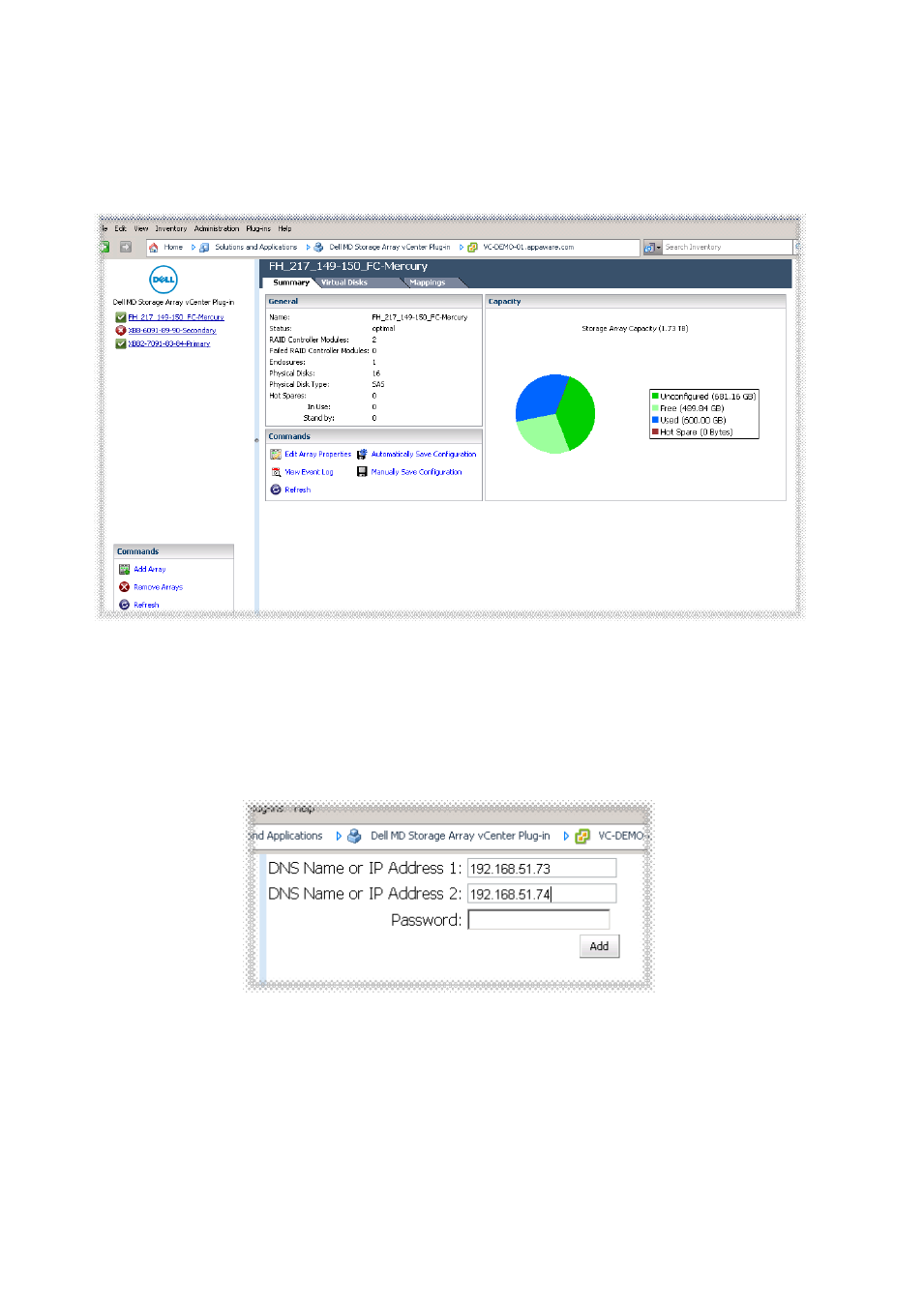

Figure 14. vCenter Plug-in Array Manager View
Adding a Storage Array
1
In the Commands area of the vCenter Plug-in Array Manager view, click Add Array.
2
A dialog box appears with the DNS Name or IP Address text boxes and the Password text box. See
Figure 15.
Figure 15. Add Array Dialog Box
3
In the DNS name or IP address 1 text box, type the IP address or name of the storage array’s controller
A.
4
In the DNS name or IP address 2 text box, type the IP address or name of the storage array’s controller
B.
5
In the Password text box, type the password for the storage array that you are adding to the vCenter
Plug-in.
6
Click Add.
