38 Cabling Your Blade Cluster Hardware

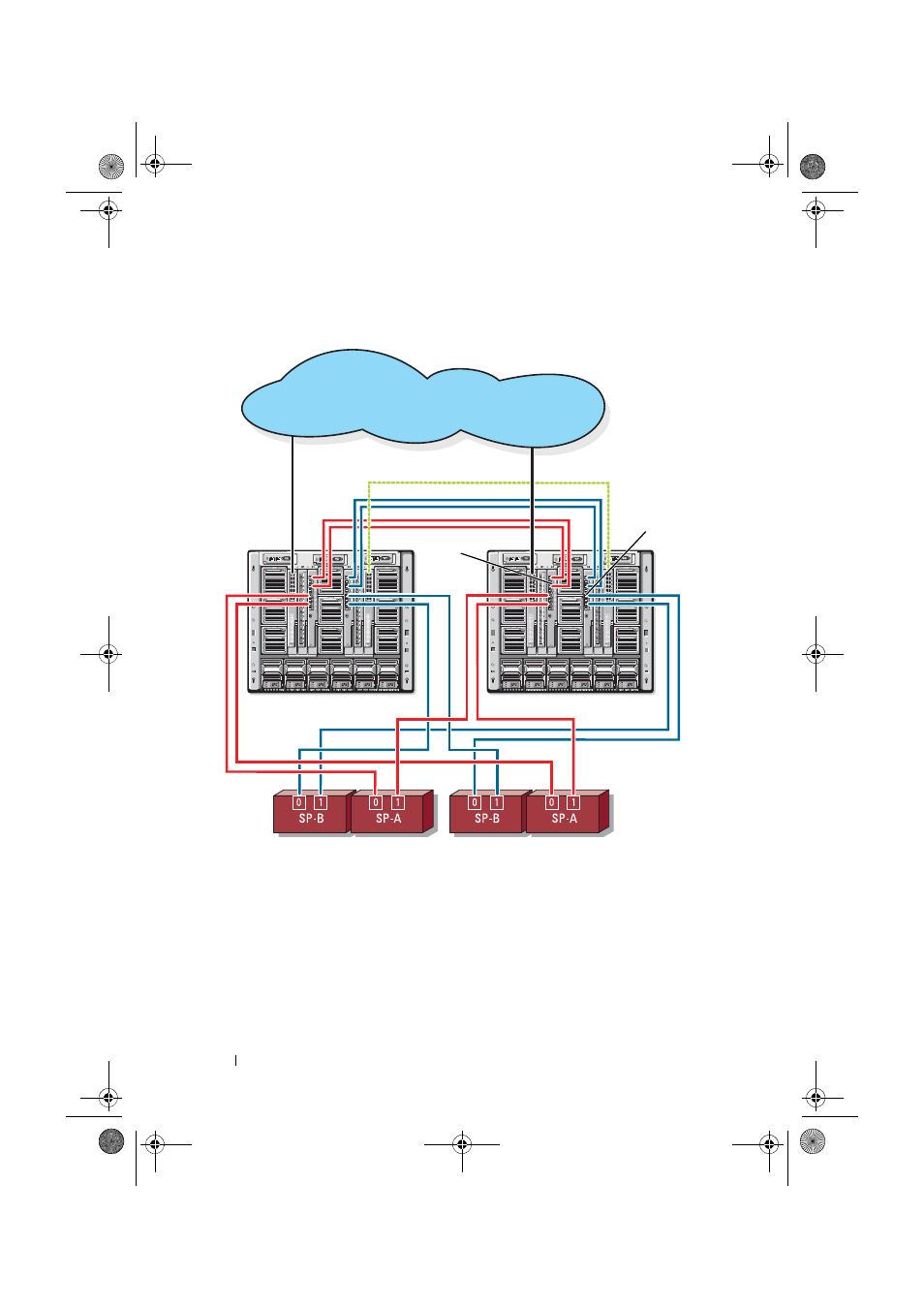

Figure 2-7. Two PowerEdge Server Enclosures Connected to Two Storage Systems
1 Fibre Channel switch module (2) 2 Fibre Channel switch module (2)
storage system 2 SPs
private network connection
PowerEdge system 1 PowerEdge system 2
ISLs
ISLs
public network
storage system 1 SPs
2
1
