Hardware Installation

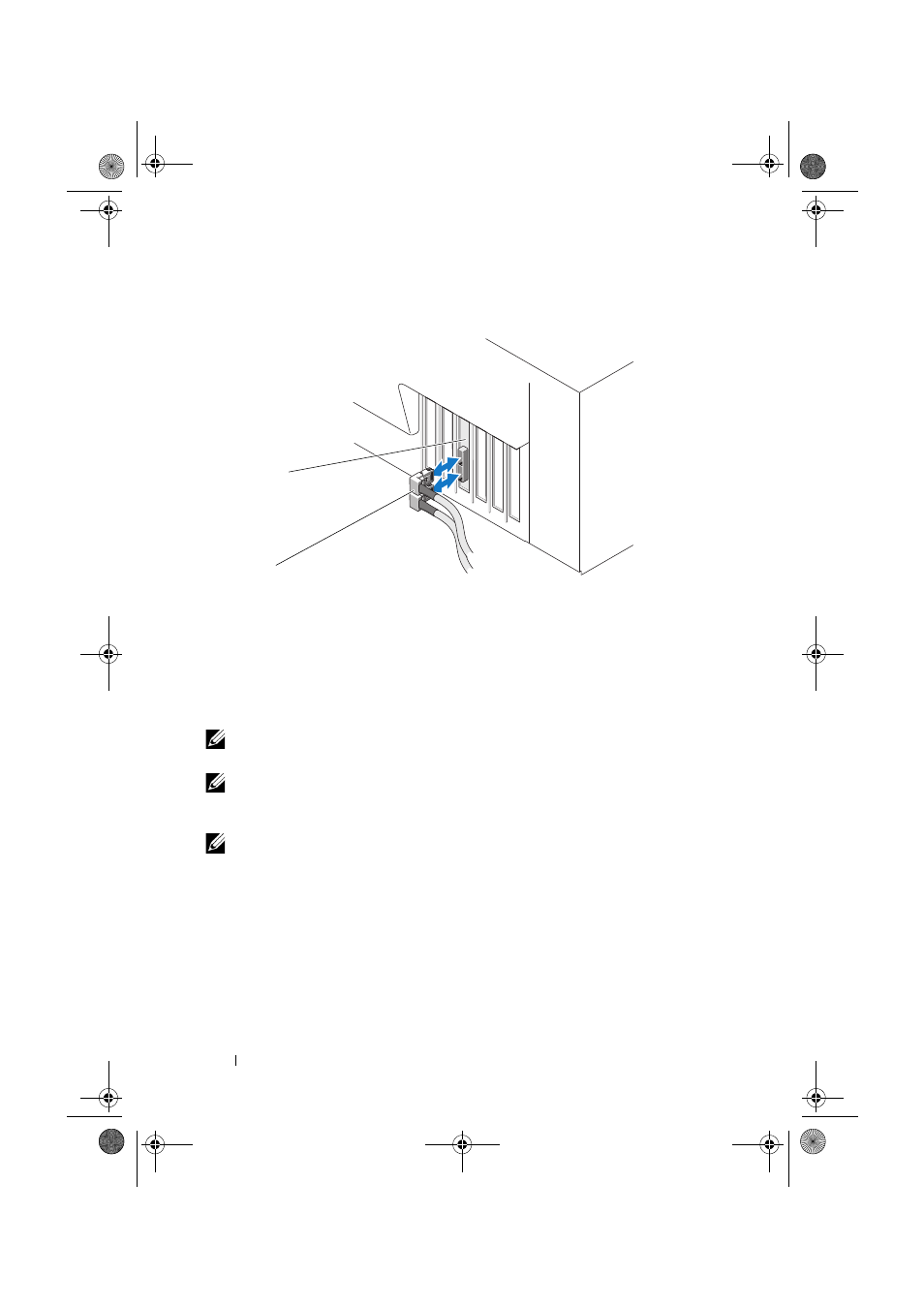

Figure 4-3. Connecting the Cable for 6Gbps SAS HBA
10 Replace the cover of the system. See your system’s Hardware Owner’s
Manual or the User’s Guide for more information on closing the system.
11 Reconnect the power cable(s) and network cables, and then turn
on the system.
NOTE:
Ensure that you do not connect a hard disk and tape drive to the
same PERC H200 card.
NOTE:
For information on connecting your PERC H200 card to a tape drive,
see your system’s Hardware Owner’s Manual on the Dell Support website
at support.dell.com/manuals.
NOTE:
Installing an operating system on a disk attached to the 6Gbps SAS HBA
or a tape drive is not supported.
1 6Gbps SAS HBA 2 Cable from the external enclosure
