Speaker
Dell™ Inspiron™ 910 Service Manual

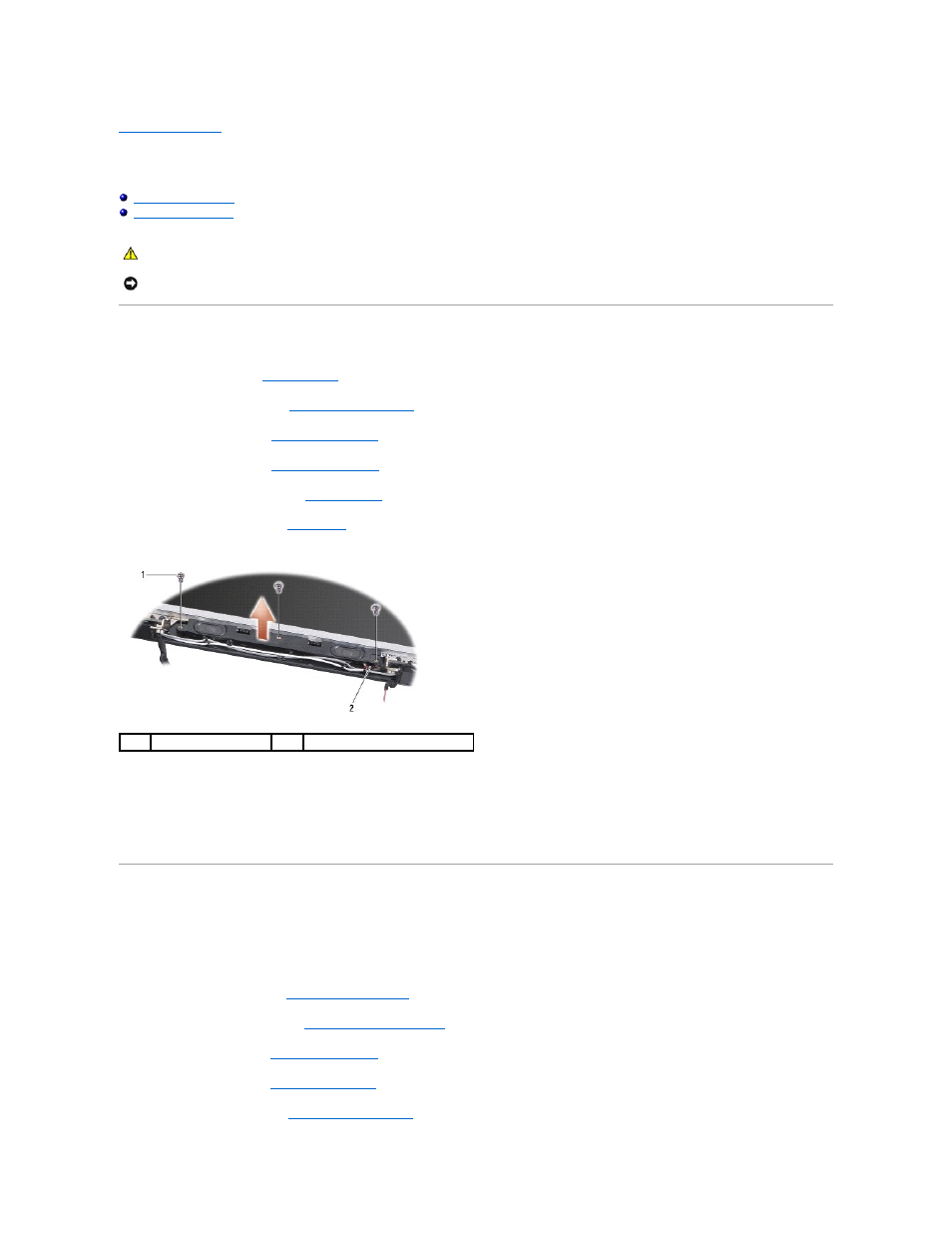

Removing the Speaker
1.
Follow the instructions in
Before You Begin
.
2.
Remove the module cover (see
Removing the Module Cover
).
3.
Remove the keyboard (see
Removing the Keyboard
).
4.
Remove the palm rest (see
Removing the Palm Rest
).
5.
Remove the display assembly (see
Display Assembly
).
6.
Remove the display bezel (see
Display Bezel
).
7.
Remove the three speaker screws from the display base.
8.
Make note of the speaker cable routing.
9.
Remove the speakers.
Replacing the Speaker
1.
Replace the speakers and the speaker cables.
2.
Replace the three speaker screws that secure the speakers to the display base.
3.
Replace the display bezel (see
Replacing the Display Bezel
).
4.
Replace the display assembly (see
Replacing the Display Assembly
).
5.
Replace the palm rest (see
Replacing the Palm Rest
).
6.
Replace the keyboard (see
Replacing the Keyboard
).
7.
Replace the module cover (see
Replacing the Module Cover
).
CAUTION:
Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
NOTICE:
To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such
as the back panel) on the computer.
1
screw (3)
2
speaker cable
