Using the RESET Button
Troubleshooting 4-7
4.3 USING THE RESET BUTTON
The RESET button shown in Figure 4-2 resets and re-initializes the 2E253-49R.

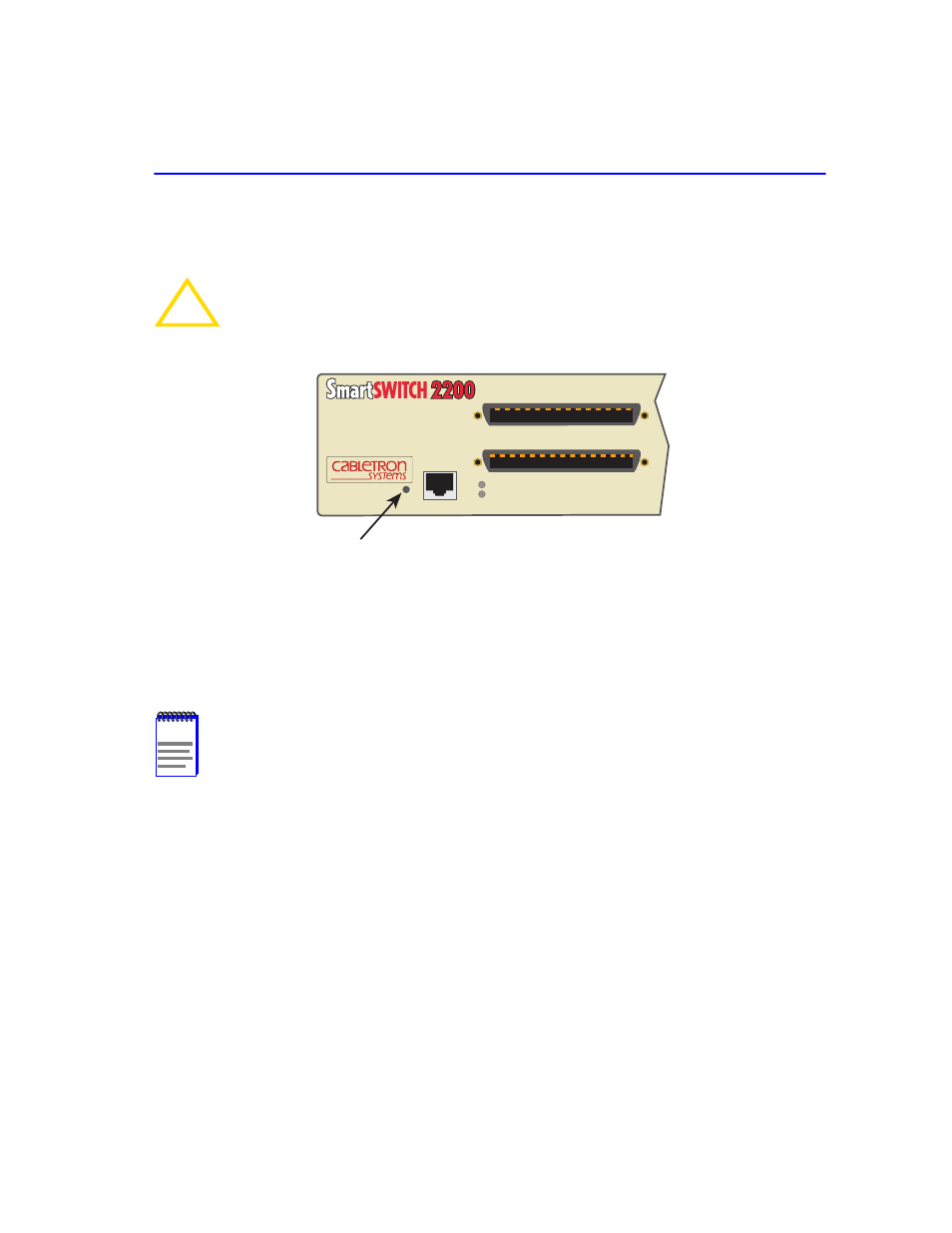

Figure 4-2 RESET Button
To reset the 2E253-49R processor, press and release the RESET button. The 2E253-49R goes
through a reset process for approximately 60 seconds. Additional downtime may result as the
device reenters the network.
!
CAUTION
Pressing the RESET button resets the device, and all current switching being performed
by the device is halted. A network downtime of up to two minutes will result from this
action.
NOTE NOTE NOTE NOTE
It is not recommended to press the RESET button while the device is already in reset
mode. If so, the device will enter an extended diagnostic procedure, which is
unnecessary tor normal operation. This extended diagnostic procedure takes much
longer than a minute.
2600-10
2E253-49R
COM
RESET
25 36
12 1
PWR
CPU
ETHERNET WORKGROUP SWITCH
RESET Button
