Connecting to the Network
Installation
3-9
To connect an RJ21, proceed as follows:
1.
Ensure that the device connected to the other end of the segment is powered ON.
2.
If using an RJ21 straight connector, plug it into the appropriate RJ21 port as shown in
or, if using the RJ21 right-angled adapter supplied with the device, insert it as shown
in
. The RJ21 right-angled adapter enables the cables to be dressed along the front of
the device and easily attached to the strain-relief bracket when using an RJ21 right-angled
connector.
.

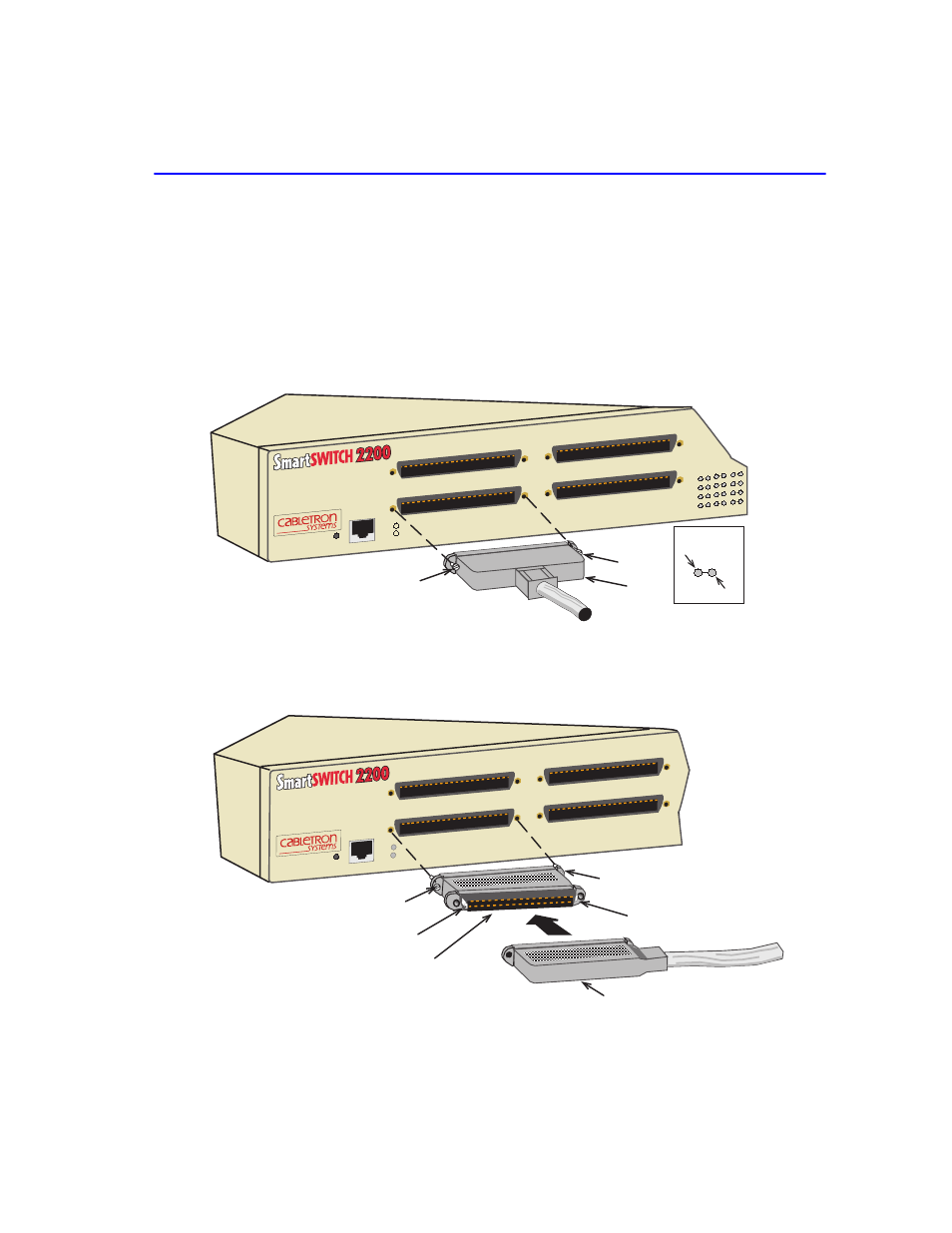

Figure 3-6
Straight Cable Connection
Figure 3-7
Connection Using the RJ21 Angle Adapter
2600-07
RJ21
Screw
Screw
Port 1
RX LED
TX
1
ETHERNET WORKGROUP
SWITCH
2E253-49R
COM
RESET
37
48
25
36
13
24
12
1
PWR
CPU
1
2
3
4
5
9
6
7
8
10
11
12
2600-08
ETHERNET WORKGROUP
SWITCH
2E253-49R
COM
RESET
37
48
25
36
13
24
12
1
RJ21 Angle Adapter
PWR
CPU
Screw
Screw
Clip
Clip
RJ21 Right-Angled
Connector
