Installing the Device
3-4 Installation

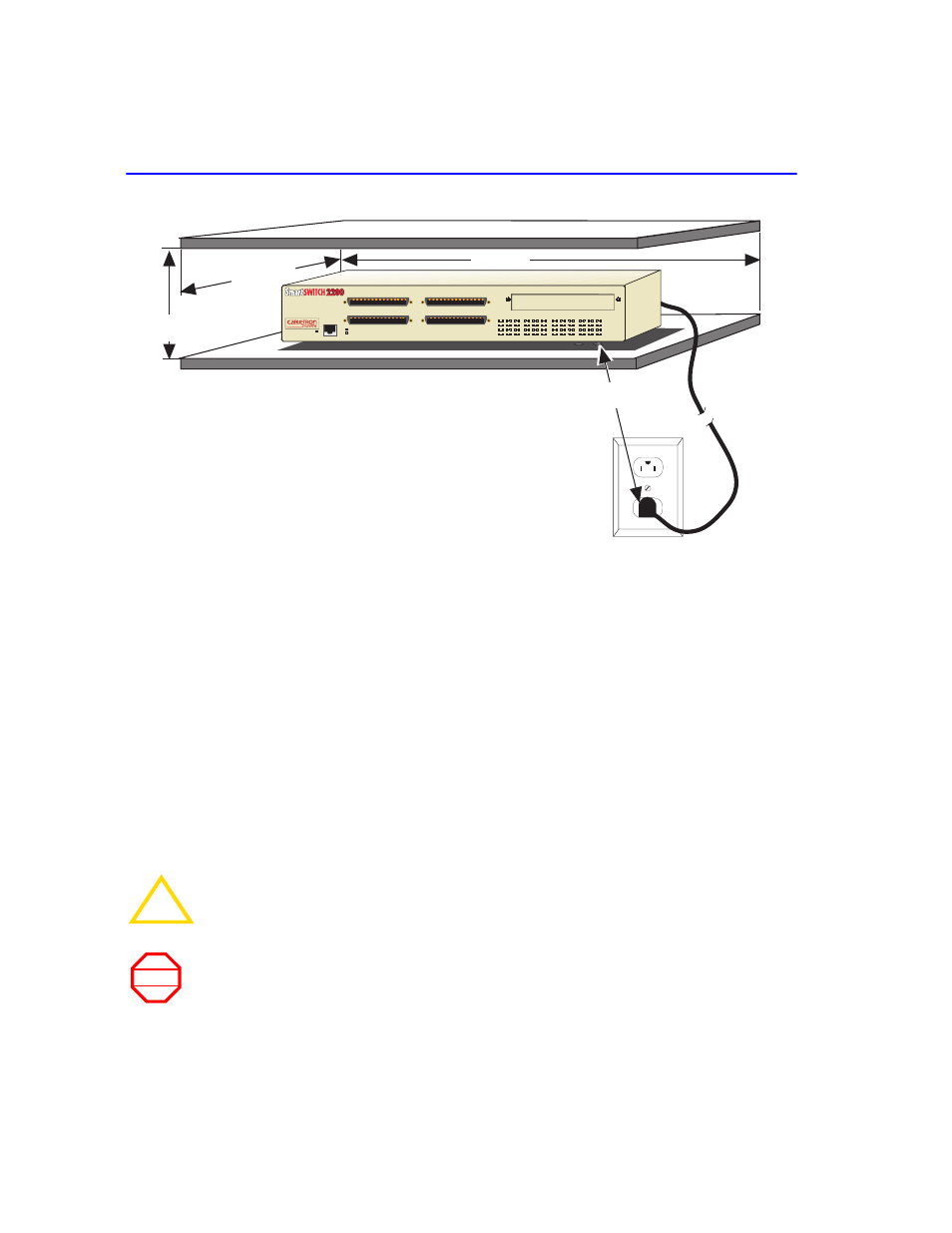

Figure 3-1 Tabletop or Shelf Installation
3.3.2 Rackmount Installation
To install the 2E253-49R in a 19-inch rack, Cabletron Systems includes a strain-relief bracket for
cable management and an accessory kit containing the rackmount brackets, and mounting screws
to attach the rackmount brackets and strain-relief bracket.
Guidelines for the Rackmount Installation
The installation site must be within reach of the network cabling and meet the requirements listed
below:
• An appropriate grounded power receptacle must be located within seven feet of the location.
• Maintain a temperature of between 5
°
C (41
°
F) and 40
°
C (104
°
F) at the installation site with
fluctuations of less than 10
°
C (18
°
F) per hour.
!
CAUTION
To ensure proper ventilation and prevent overheating, leave a minimum clearance space
of 5.1 cm (2.0 in) at the left, right, and rear of the 2E253-49R.
WARNING
Before installing the 2E253-49R into a rack, ensure that the rack supports the device(s)
without compromising the stability of the rack. Otherwise, personal injury and/or
equipment damage may result.
2600-02
A = 15 cm (6 in)
B = 57 cm (22.5 in)
C = 53 cm (21 in)
C
B
A
D
D = 213 cm (7 ft)
PWR
CPU
13
14
15
16
17
18
19
20
2
22
23
24
25
26
27
28
29
30
31
3
33
34
35
36
37
38
39
40
41
42
43
4
45
46
47
48
1
2
3
4
5 9
6
7
8
10
11
12
2E253-49R COM RESET
37 48 25 36
13 24 12 1
ETHERNET WORKGROUP SWITCH
