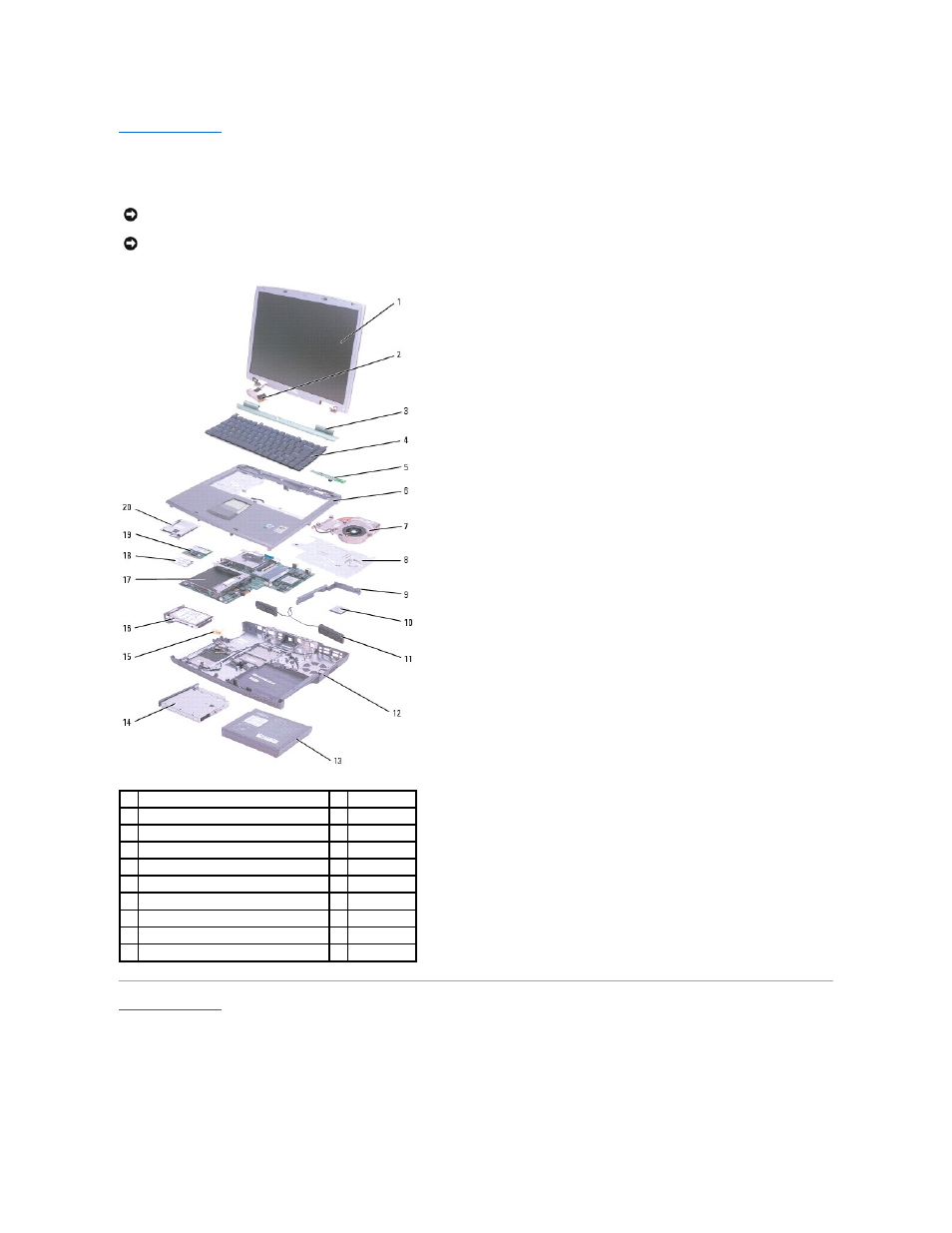

System Components
Dell™ Inspiron™ 5160 Systems Service Manual
Back to Contents Page
NOTICE: Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell is not
covered by your warranty.
NOTICE: Unless otherwise noted, each procedure in this document assumes that a part can be replaced — or if purchased separately — installed by
performing the removal procedure in reverse order.
1 display 11 speakers
2 display-feed flex cable 12 base plastics
3 hinge cover 13 battery
4 keyboard 14 optical drive
5 button board 15 left antenna
6 palm rest 16 hard drive
7 microprocessor thermal-cooling assembly 17 system board
8 EMI shield 18 modem
9 battery bay shield 19 Mini PCI card
10 microprocessor 20 video card
