module bay —

You can install devices such as an optical drive or a Dell TravelLite™ module in the module bay. For more information, see "

Using the Module

Bay

."



device latch release —

Releases the module bay device. See "

Using the Module Bay

" for instructions.



USB connectors



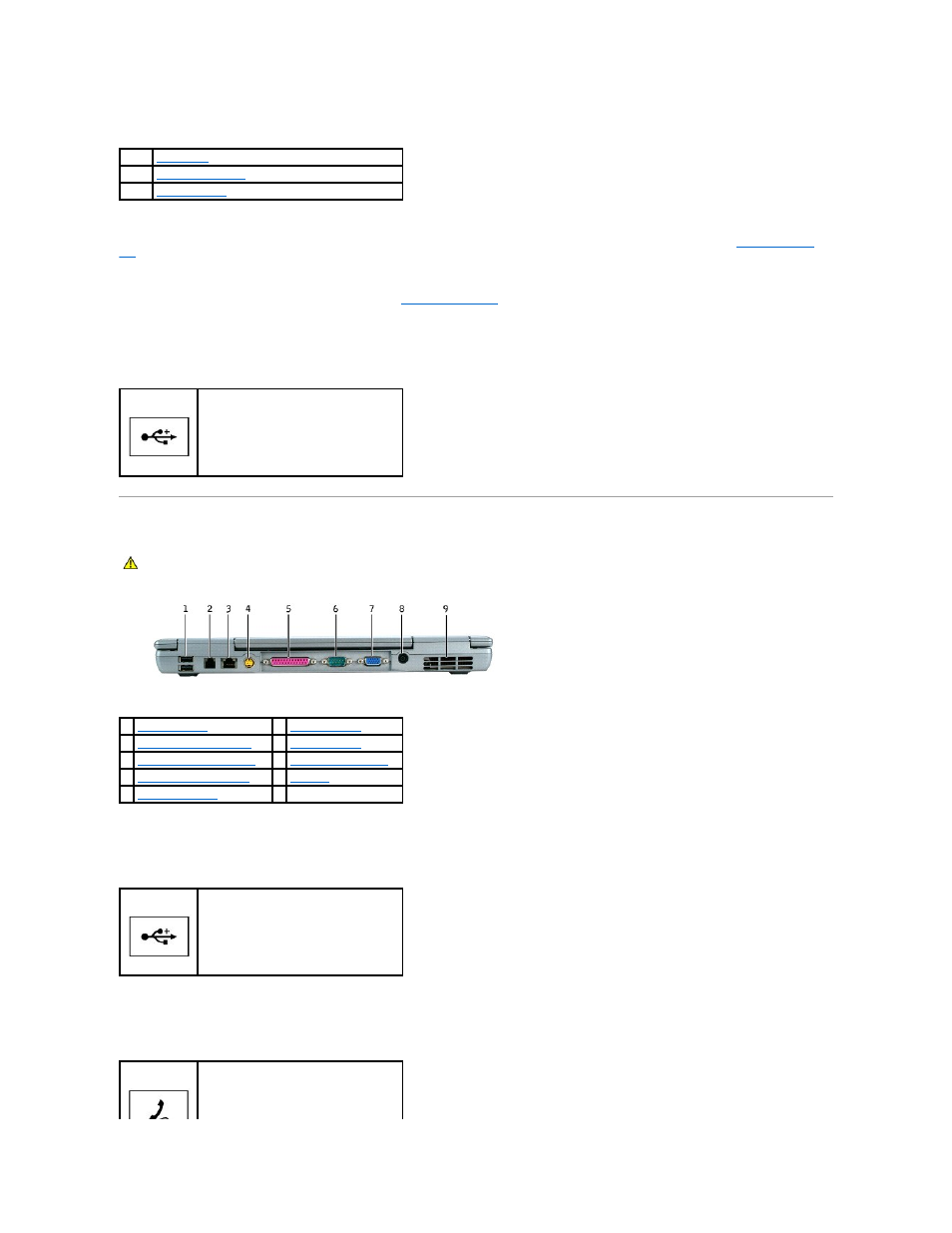

Back View







USB connectors





modem connector (RJ-11)



1

module bay

2

device latch release

3

USB connectors

(2)



Connect USB devices, such as a mouse,
keyboard, or printer. You can also connect
the optional floppy drive directly to a USB
connector using the optional floppy drive
cable.

CAUTION:

Do not block, push objects into, or allow dust to accumulate in the air vents. Do not store your computer in a low-airflow environment,

such as a closed briefcase, while it is running. Restricting the airflow can damage the computer or cause a fire.

1

USB connectors

(2)

6

serial connector

2

modem connector (RJ-11)

7

video connector

3

network connector (RJ-45)

8

AC adapter connector

4

S-video TV-out connector

9

air vents

5

parallel connector







Connect USB devices, such as a mouse,
keyboard, or printer. You can also connect
the optional floppy drive directly to a USB
connector using the optional floppy drive
cable.



If you ordered the optional internal modem,
connect the telephone line to the modem
connector.

For information on using the modem, see
