Using the Advanced Port Replicator
HINT: If you receive a
BIOS upgrade floppy disk
with your APR, use the
disk to upgrade your
computer before you use
the APR.
The advanced port replicator (APR) integrates your computer into a
desktop environment. The APR includes a NIC to connect your computer
to a network.
NOTICE: Do not attempt to lift the computer while it is connected to the
APR. Doing so will damage the docking connector.
Connecting External Devices to the APR
HINT: If the cable
connector from the
external device has
thumbscrews, be sure to
tighten them to ensure a
proper connection.

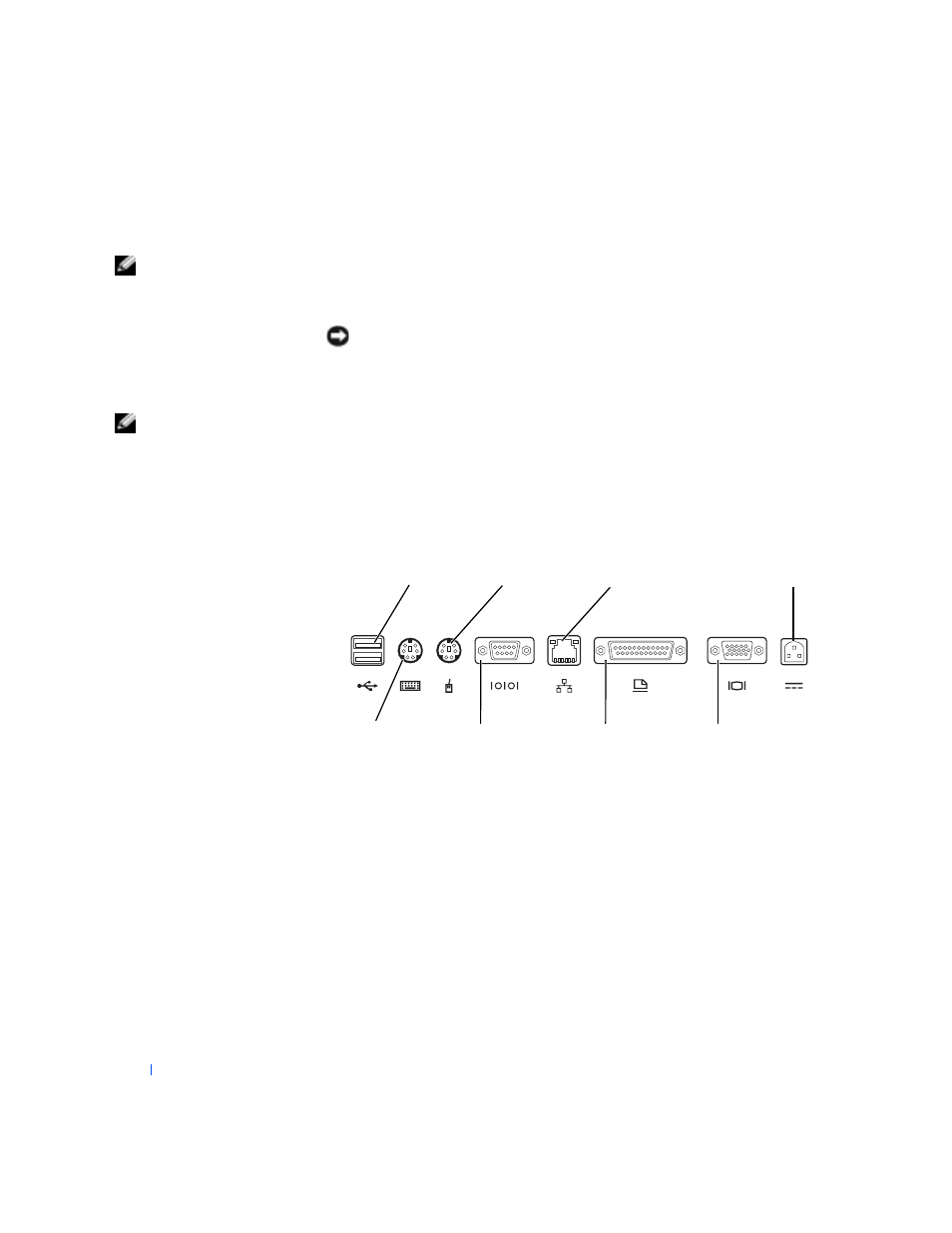

1 See the following illustrations for connector locations.
2 Connect the external devices to an electrical outlet, if applicable.
The I/O connectors on the back and side of the APR duplicate the primary
connectors on the back and side of your computer.
keyboard
connector serial
connector
USB
connectors (2)
parallel
connector
network adapter
connector
video
connector
mouse
connector AC adapter
connector
