USB Daughter Card
Dell™ Vostro™ 1710
Service Manual
Removing the USB Daughter Card
Replacing the USB Daughter Card
Removing the USB Daughter Card
CAUTION: Before you begin the following procedure, follow the safety instructions that shipped with your
computer.
1. Follow the instructions in Before Working on Your Computer .
2. Remove the hard drive cover. See Removing the Hard Drive for an illustration of the hard drive cover.
3. Remove the WLAN card (see Removing a WLAN Card ).
4. Remove the hinge cover (see Removing the Hinge Cover ).
5. Remove the keyboard (see Removing the Keyboard ).
6. Remove the display assembly (see Removing the Display Assembly ).
7. Remove the palm rest (see Removing the Palm Rest ).

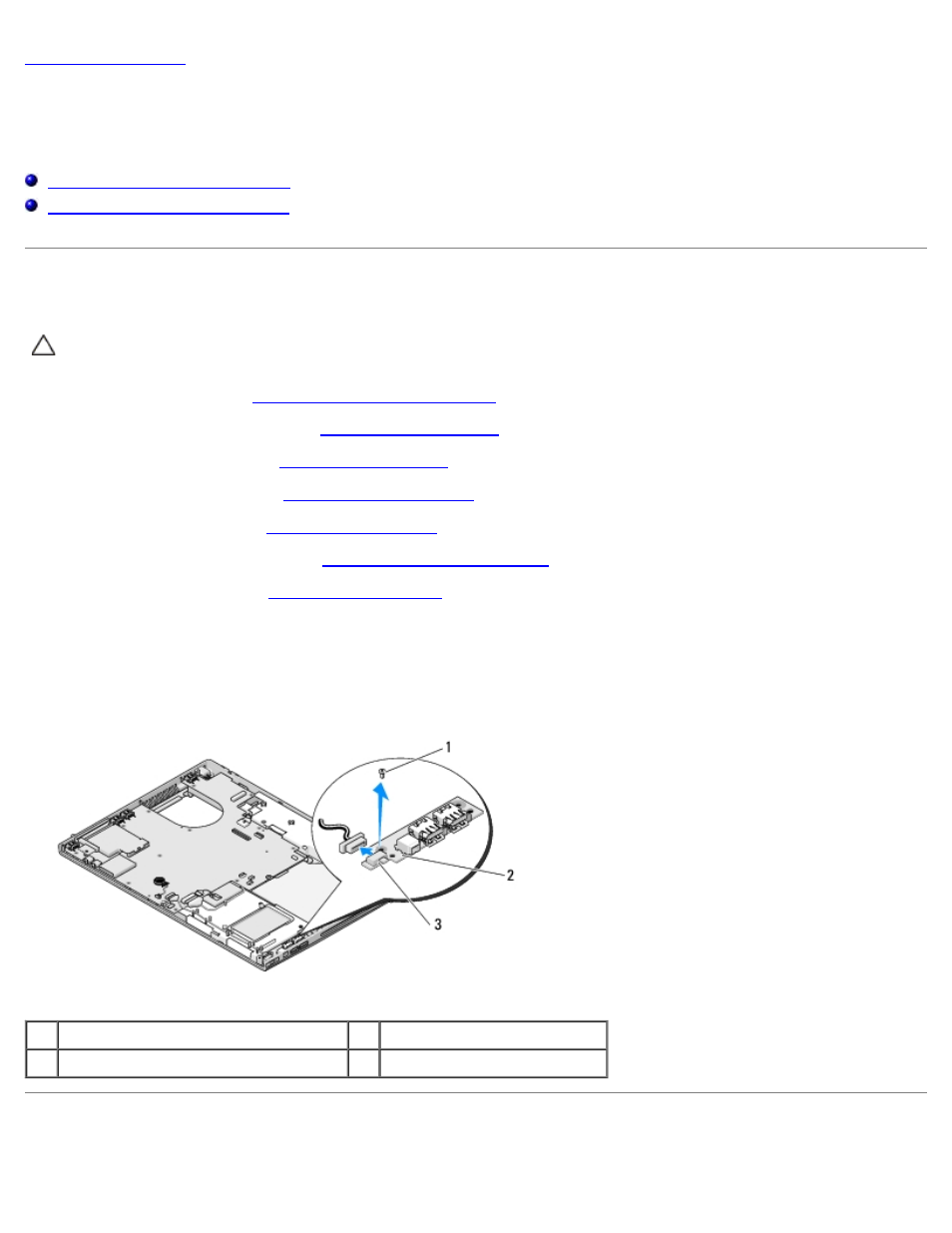

8. Remove the two M2.5 x 5-mm screws from the daughter card.
9. Disconnect the daughter-card connector from the daughter card.
10. Remove the daughter card from the computer base.
1 M2.5 x 5-mm screw (2) 2 USB daughter card
3 daughter-card connector
Replacing the USB Daughter Card
