Replacing the hinge cover – Dell Vostro 1710 (Early 2008) User Manual
Page 34

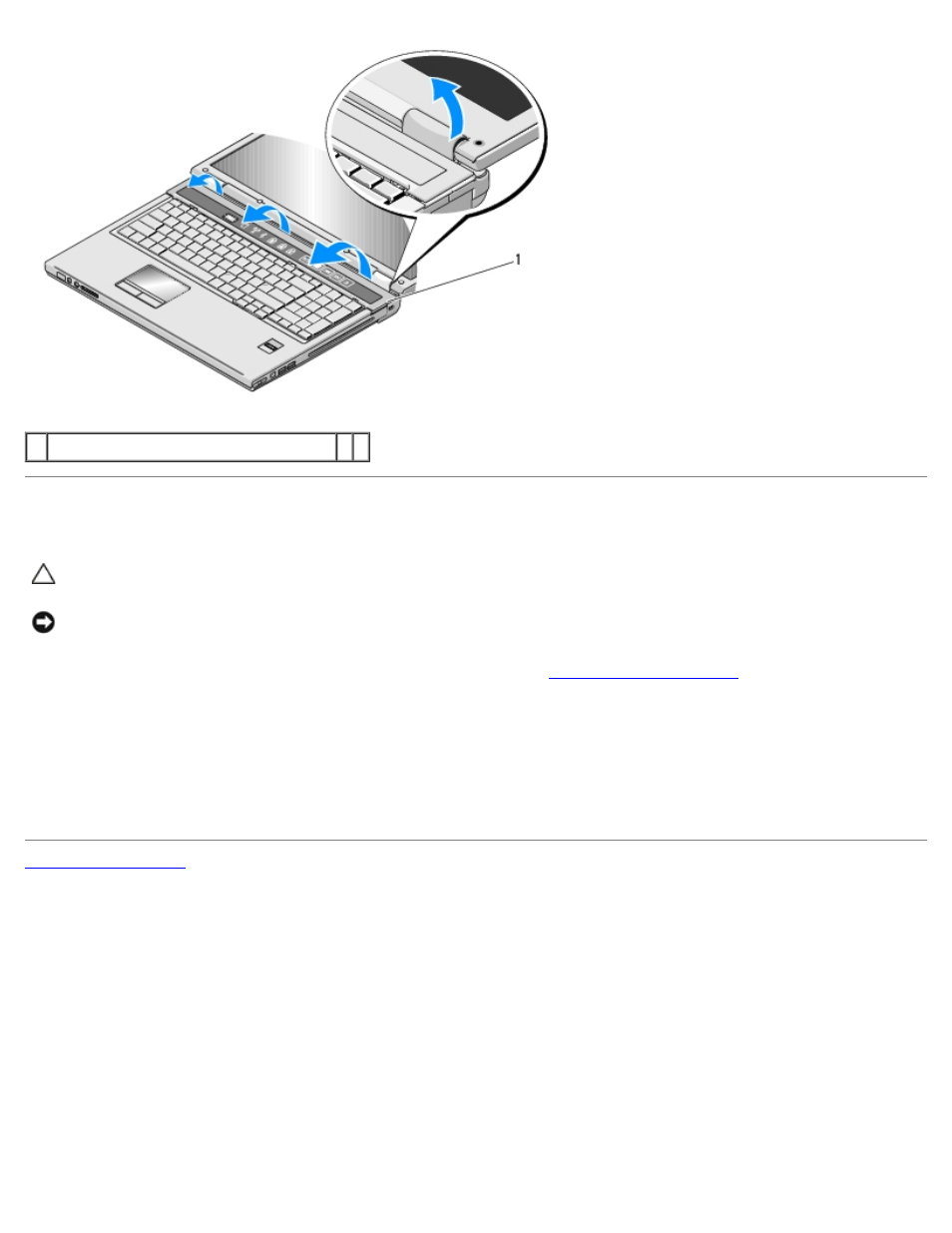

1 raised part of hinge cover on right side
Replacing the Hinge Cover
CAUTION:
Before you begin any of the procedures in this section, follow the safety instructions that
shipped with your computer.
NOTICE:
The hinge cover is fragile and can be damaged if extreme force is used. Exercise care when
replacing the hinge cover.
This procedure assumes that you have completed the removal procedure
.
1. Align the two tabs underneath both edges of the hinge cover with the corresponding notches in the computer.
2. Moving from left to right, press down until the hinge cover snaps into place.
3. Close the display and turn the computer to the back.
4. Press each hinge cover until it snaps into place.
