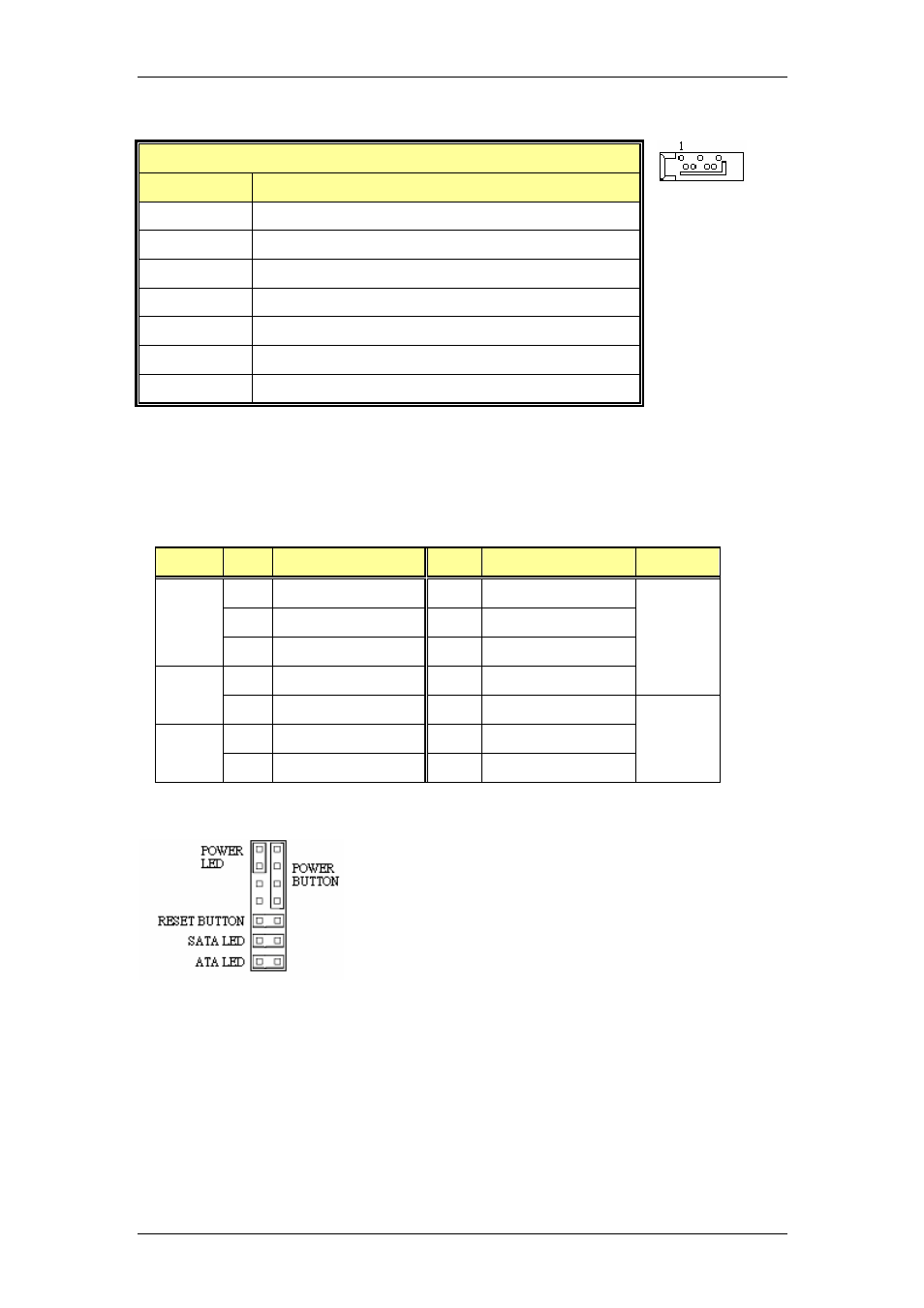

B.12 Serial ATA Connector
S_ATA1, S_ATA2, S_ATA3, S_ATA4: Serial ATA Connector
PIN DESCRIPTION
1 GND
2 S_TXP
3 S_TXN
4 GND
5 S_RXP
6 S_RXN
7 GND
B.13 External Switches and Indicators
PIN DESCRIPTION PIN DESCRIPTION
1 +5V 2 +5V
3 N/C 4 N/C
Power
LED
5 GROUND 6 N/C
7 PWRBTSW- 8 Speaker
Speaker
PWRB
TN 9 GROUND 10 N/C
11 +5V 12 Reset- HDDL
ED 13 HDLED- 14 GND
RESET
