CPEX Series CyberResearch
®
CPU Cards
14 ©Copyright 2005 CyberResearch, Inc.

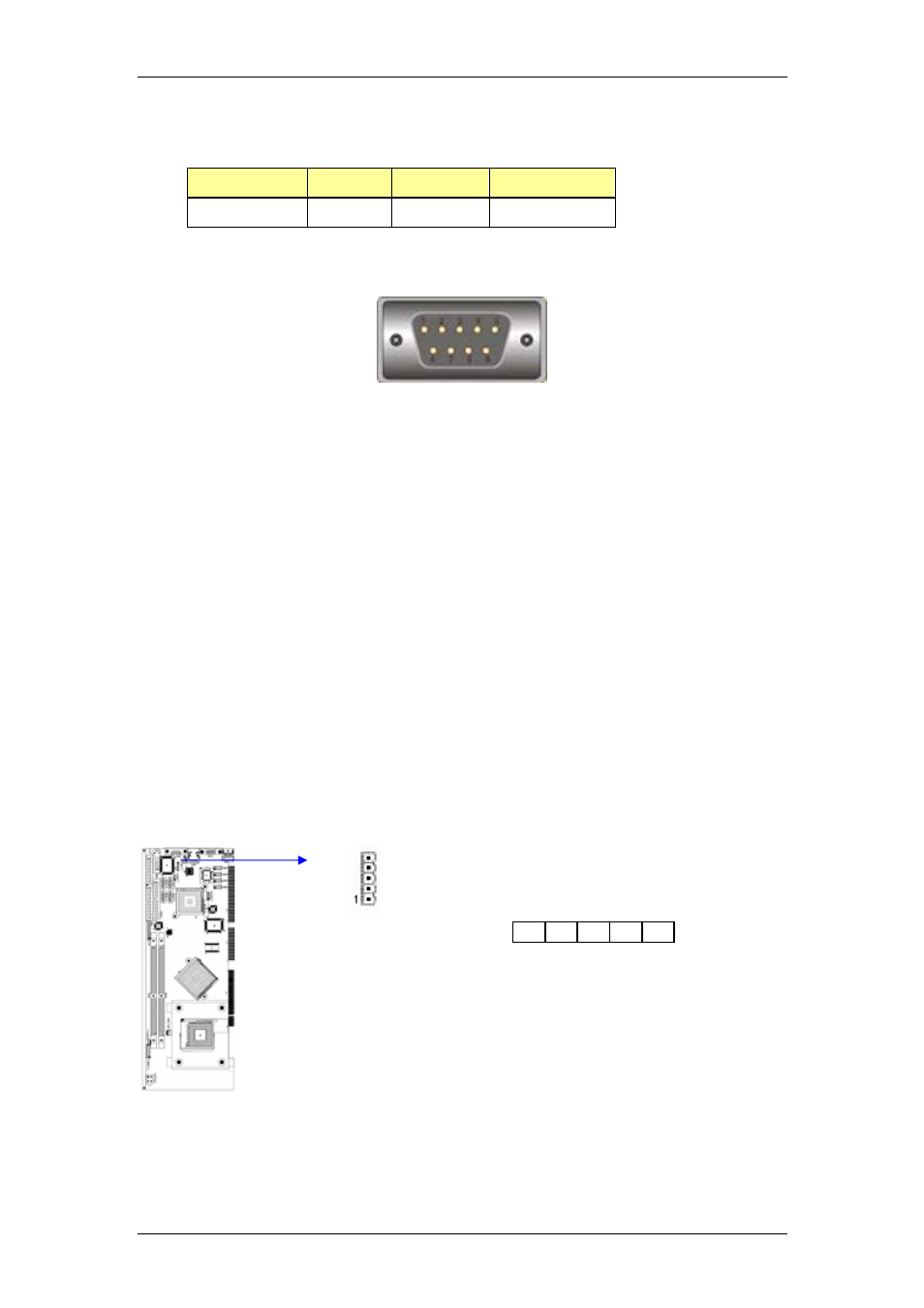

COM2: 9-pin external connector
Connector Ports Address Interrupt
COM2 COM2 2F8 IRQ3
1 5
9
•
COM2 : Serial Port Connector
2.5 IrDA Infrared Interface Port (IR)
The product has a built-in IrDA port which supports Serial Infrared
(SIR) or Amplitude Shift Keyed IR (ASKIR) interface. If you want to
use the IrDA port, you have to configure SIR or ASKIR model in the
BIOS under Peripheral Setup COM2.
Then the normal RS-232 COM 2
will be disabled.
IR1: IrDA connector
5 4 3 2 1
● ● ● ●
