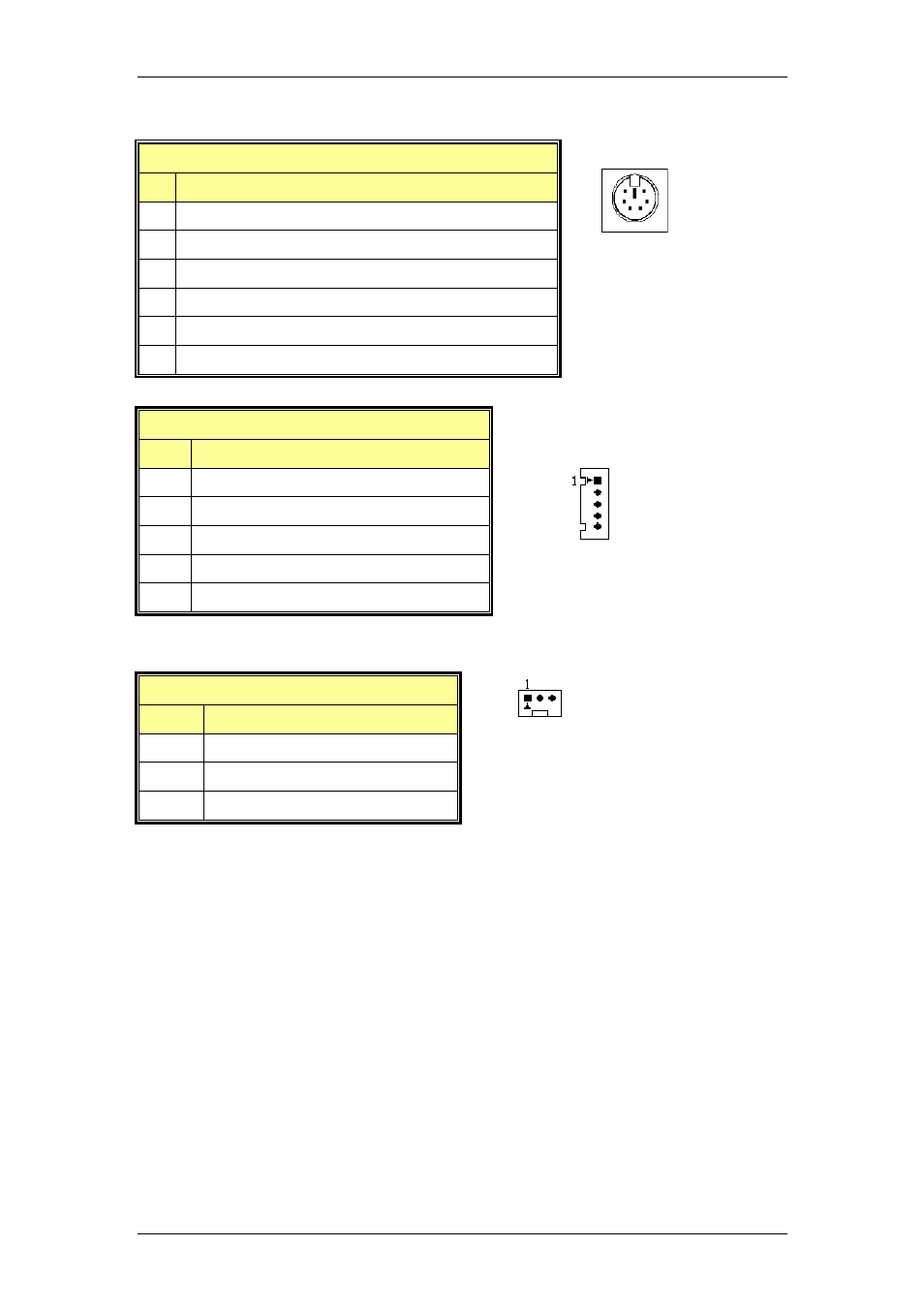

B.10 Keyboard/Mouse Connector
KB/MS: Mini DIN Keyboard/Mouse Connector
PIN DESCRIPTION
1 KEYBOARD DATA
2 MOUSE DATA
3 GND
4 +5V
5 KEYBOARD CLOCK
6 MOUSE CLOCK
KB: 5-pin Header Keyboard Connector
PIN DESCRIPTION
1 KEYBOARD CLOCK
2 KEYBOARD DATA
3 N/C
4 GND
5 +5V
B.11 Fan Connector
CPU_FAN, PWR_FAN: Fan Connector
PIN DESCRIPTION
1 GND
2 +12V
3 Rotation Signal
