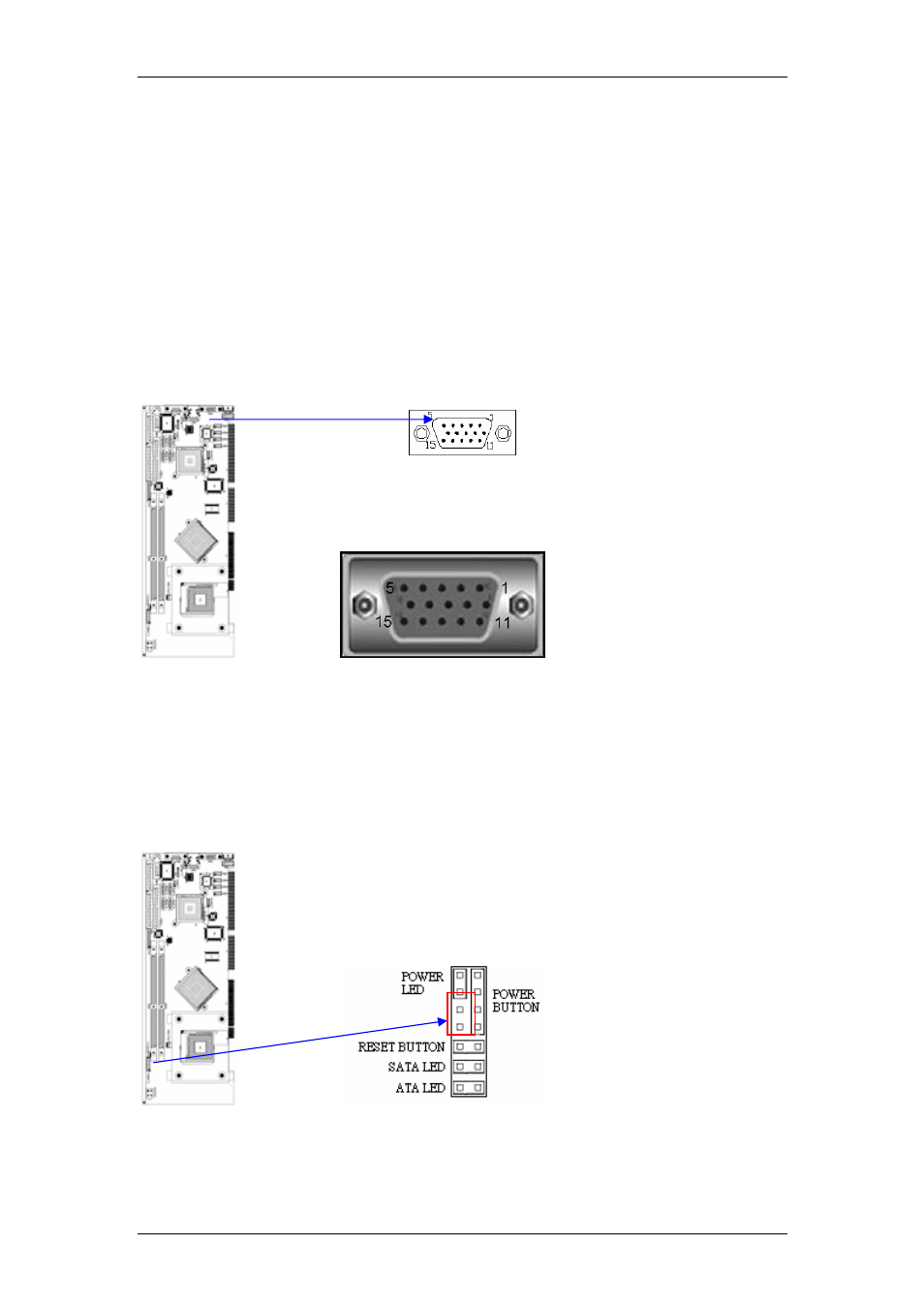

2.14 VGA Connector (VGA)
The CPEX series includes a VGA interface that can drive conventional CRT displays.
It is a standard 15-pin D-SUB connector commonly used for VGA.
•
VGA1: 15-pin Female Connector
2.15 ATX Power Button Connector (F_PANEL1)
Connect a power ON/OFF switch to this connector.
