Reserve battery – Dell Latitude Cpi User Manual
Page 55

Dell Latitude CP and CPi — Parts Removal and Replacement Guide
49
'
'
8 !
9!& !
) 9!& % '
To remove the reserve battery, follow these steps:
1.
Remove the palmrest assembly.
2.
Disconnect the reserve battery cable from connector JBAT1 on the
system board.
3.
Remove the reserve battery from the bottom case bracket.
a.
Tear the reserve battery free from the foam pad.
b.
Remove the remnants of the foam pad from the system board
assembly.
NOTE: When replacing the reserve battery, first connect the reserve battery
cable to the system board. Then position the reserve battery on the hard-disk
drive bay so there is minimal slack in the cable.

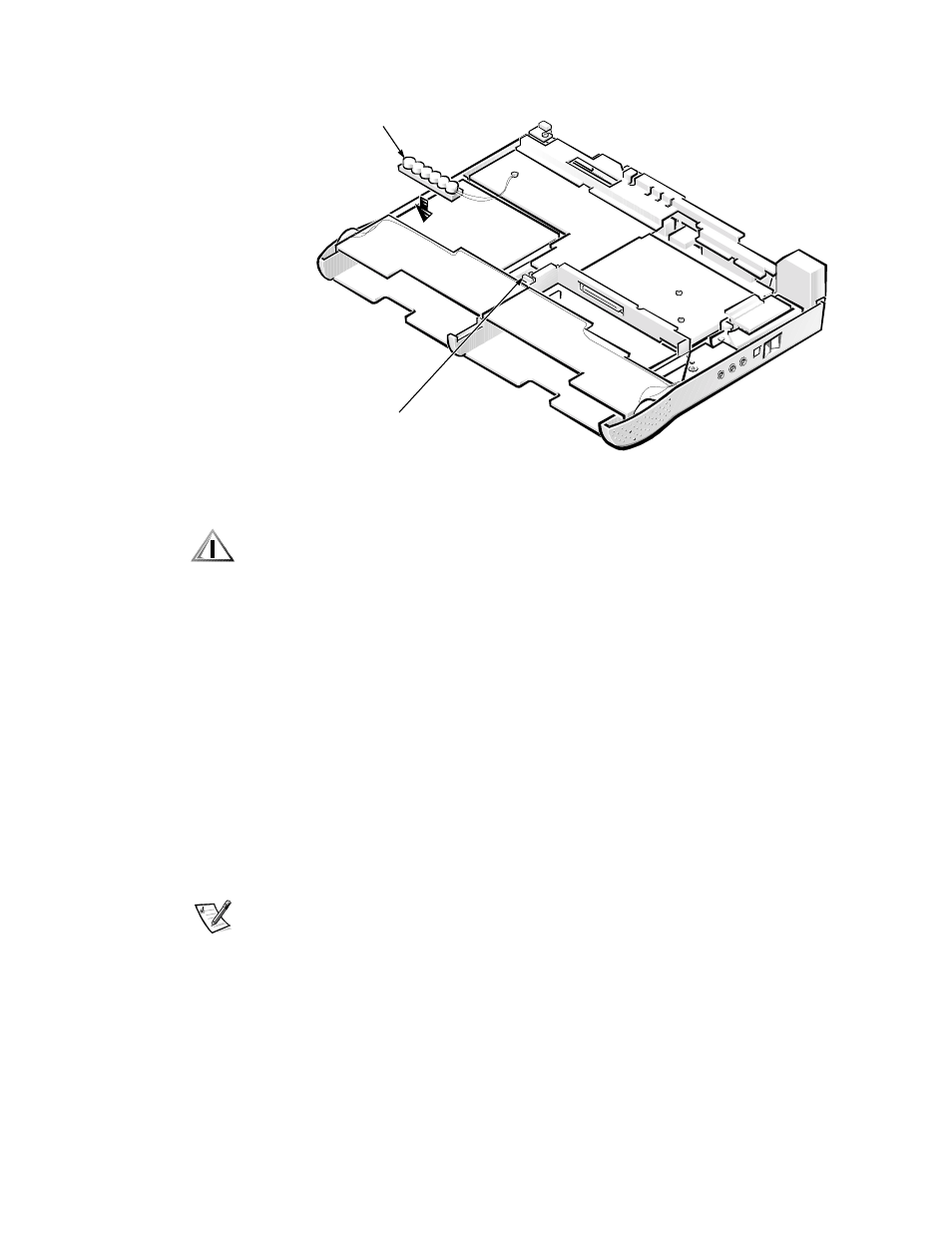

reserve battery
reserve battery cable
connector (JBAT1)
