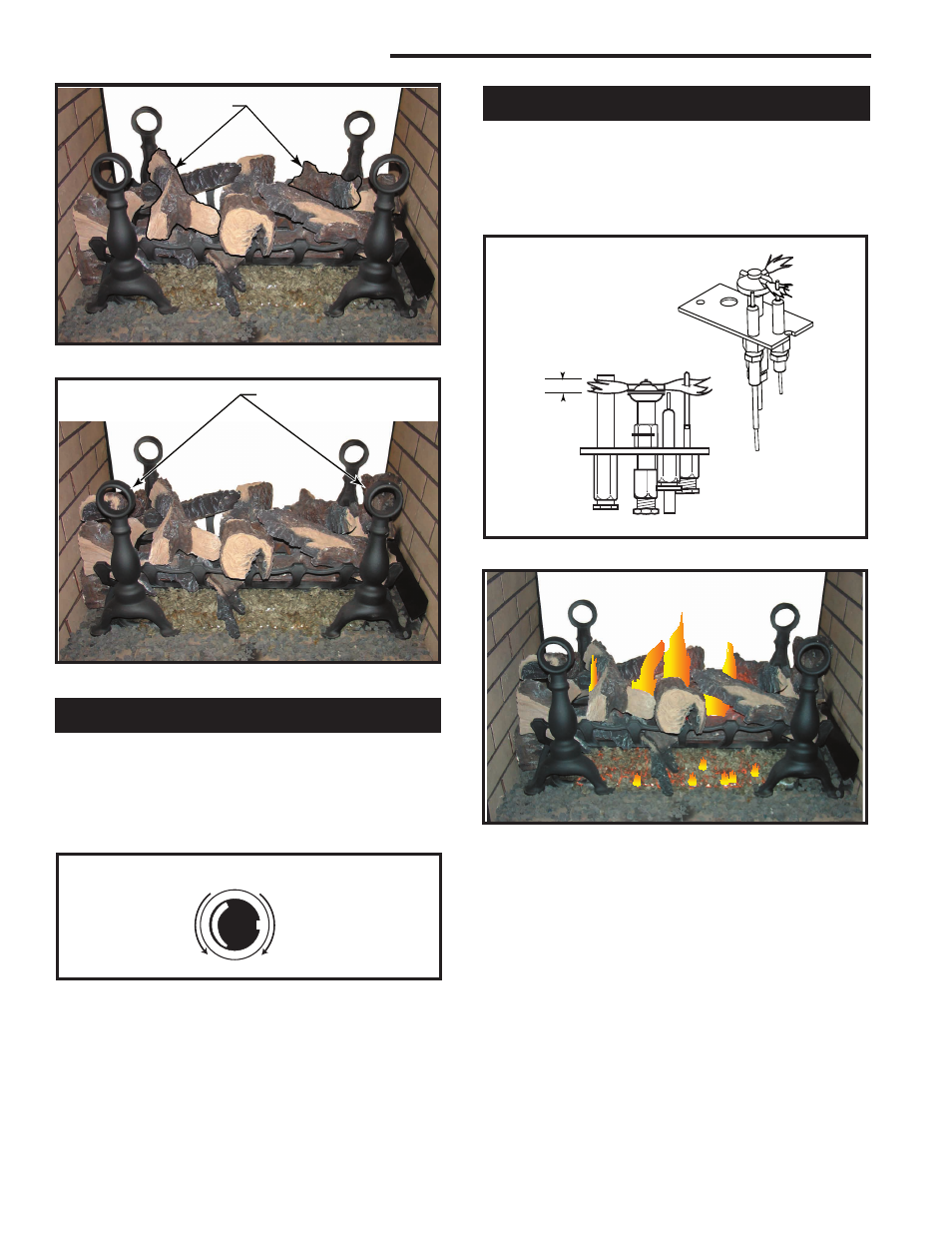

It is important to periodically perform a visual check of
the pilot and burner flames. Compare them to Figures
54 and 55.
If the flame patterns appear abnormal contact a
qualified service provider for service and adjustment.
Flame Characteristics
LO
HI
Turn
counterclockwise
to increase
flame height
Turn clockwise
to lower
flame height
FP390
FLAME ADJUSTMENT KNOB
11/21/96
SIT 820 Valve
Fig. 53 Flame adjustment knob for SIT valve.
Flame & Temperature Adjustment
RN/RP & EN/EP Models
For units equipped with ‘HI/LO’ valves the flame
adjustment is accomplished by rotating the ‘HI/LO’
adjustment knob located near the center of the gas
control valve. (Fig. 53)
SIT Top Convertible
SIT EN/EP
FP1229a
Fig. 54 Correct pilot flame appearance.
FP1229a
Pilot flames
4/03
3/8" - 1/2"
�����
���������������
����
Log Front
Right
LG431
Fig. 51 Position log front right.
�����
�������
������������������
����
Log Front Upper Right
LG433
Fig. 52 Position log front upper right.
�����
�����������������
����
LG433
Fig. 55 Correct burner flame appearance.
