166
Removing and Installing Parts
Processor
CAUTION:
Before you begin any of the procedures in this section, follow the
safety instructions located in the Product Information Guide.
Removing the Processor
1 Follow the procedures in "Before You Begin" on page 103.
2 Remove the computer cover (see "Removing the Computer Cover" on
page 105).
CAUTION:
Despite having a plastic shield, the heat sink assembly may be very
hot during normal operation. Be sure that it has had sufficient time to cool before
you touch it.
3 Remove the processor fan/heat sink assembly from the computer (see
"Removing the Processor Fan/Heat Sink Assembly" on page 164).
NOTICE:
Unless a new heatsink is required for the new processor, reuse the
original heat sink fan assembly when you replace the processor.

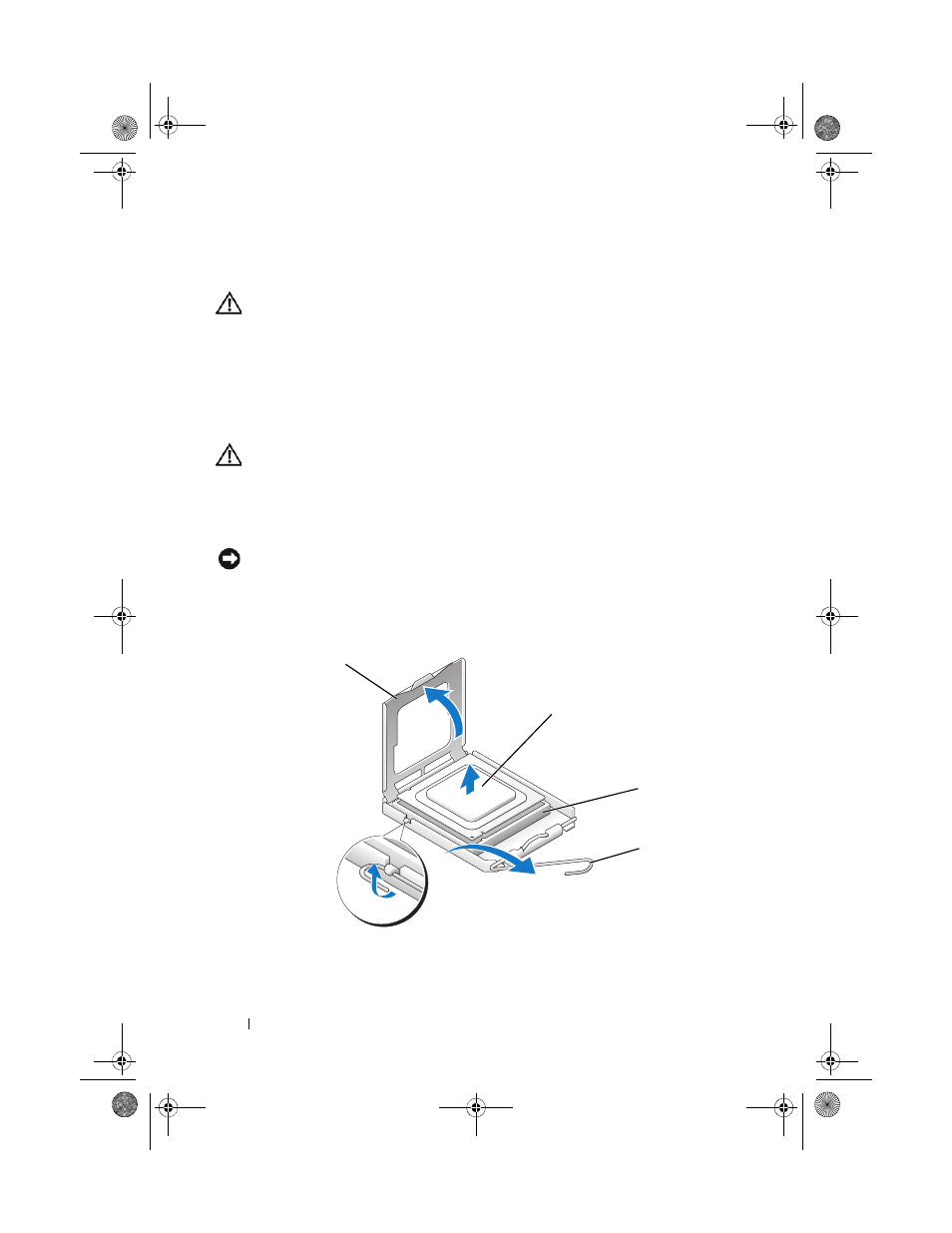

4 At the processor, place your finger upon the hook end of the release lever,
then push down and out to release it from the tab that secures it.
1 processor cover 2 processor
3 socket 4 release lever
1
2
3
4
