Removing and Installing Parts
137
Drives
Your computer supports a combination of these devices:
• Up to two serial ATA hard drives
• One optional floppy drive or an optional Media Card Reader
• One CD or DVD drive
Recommended Drive Cable Connections
• Connect serial ATA hard drives to connectors labeled "SATA0" or "SATA1"
on the system board.
• Connect serial ATA CD or DVD drives to connectors labeled "SATA4" or
"SATA5" on the system board.
NOTE:
SATA 4 and SATA 5 are not supported on Inspiron 530sb/530sd.

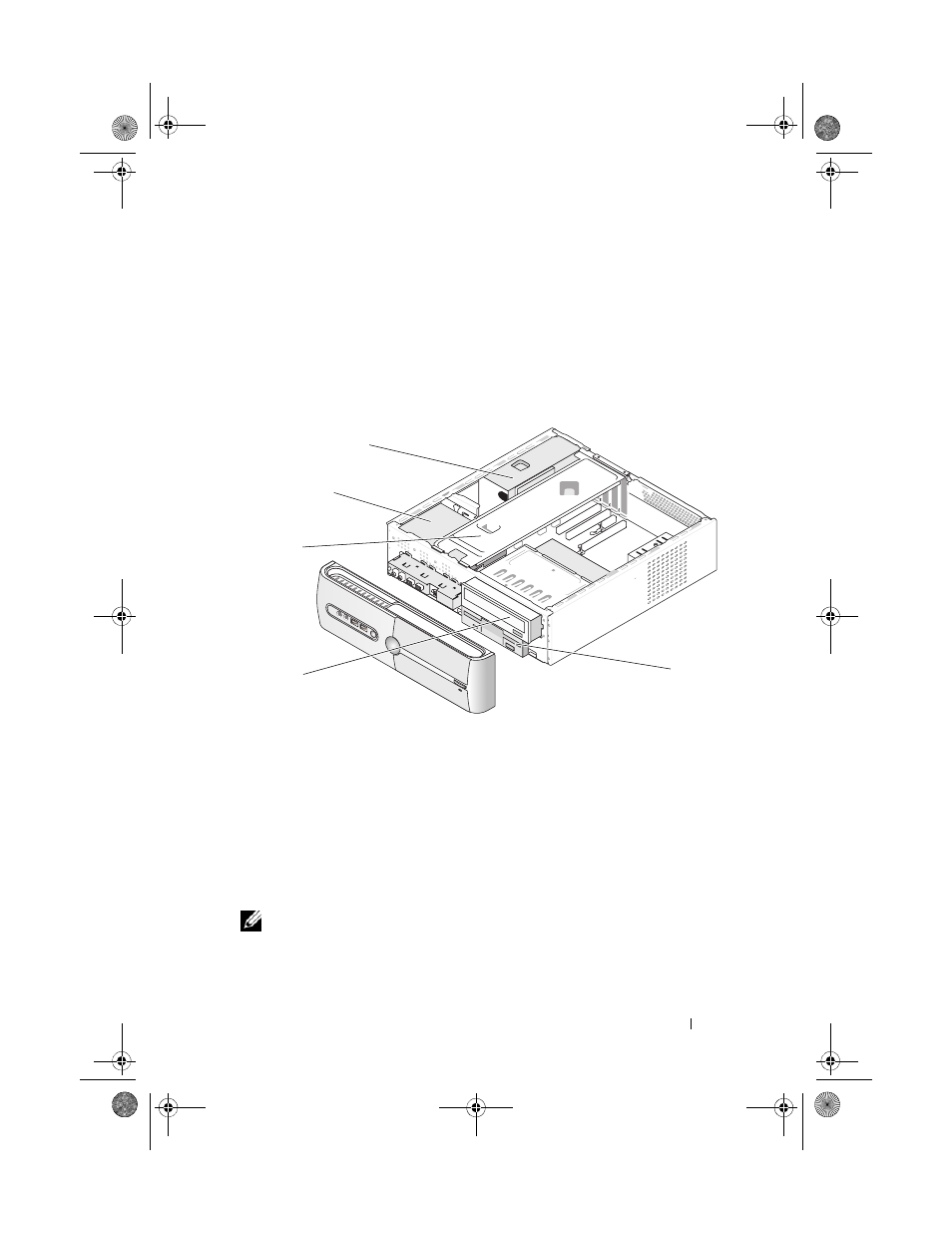

1 power supply 2 hard drive 3 support bracket
4 CD or DVD drive 5 floppy drive or Media Reader
