Speakers
Dell™ Studio™ 1569 Service Manual
Before working inside your computer, read the safety information that shipped with your computer. For additional safety best practices information, see the
Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
Removing the Speakers
1.
Follow the procedures in
Before You Begin
.
2.
Remove the battery (see
Removing the Battery
).
3.
Remove the power button panel (see
Removing the Power Button Panel
).
4.
Remove the keyboard (see
Removing the Keyboard
).
5.
Remove the palm rest (see
Removing the Palm Rest
).
6.
Remove the optical drive (see
Removing the Optical Drive
).
7.
Remove one screw from the left speaker and two screws from the right speaker.
8.
Disconnect the speaker cable from the USB/audio board connector.
9.
Make a note of the speaker cable routing and remove the speakers from the computer base.
Replacing the Speakers
1.
Follow the procedures in
Before You Begin
.
2.
Place the speakers in the computer base.
CAUTION:
Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell™
is not covered by your warranty.
CAUTION:
To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal
surface.
CAUTION:
To help prevent damage to the system board, remove the main battery (see
Removing the Battery
) before working inside the
computer.

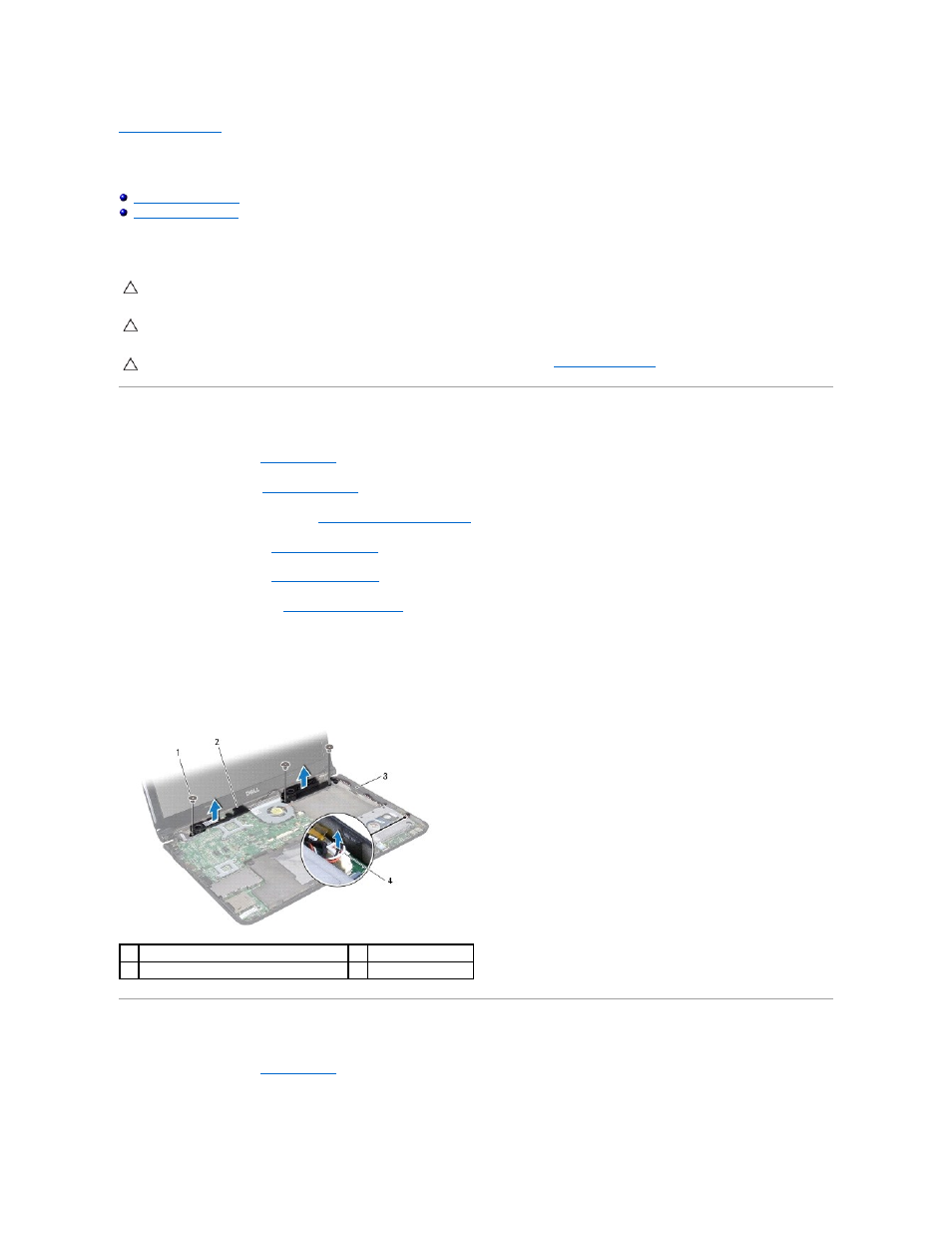

1
screws (3)
2
speakers (2)
3
speaker cable routing guides
4
speaker cable
