cable
modem Steady amber light indicates data collision.
LAN 1
LAN 2
LAN 3
LAN 4 Local Area
Network Steady green light indicates the connection is active and transfer rate is at 100Mbps.
Steady greenish amber light indicates the connection is active and transfer rate is at
10Mbps.
Table 1. Dell TrueMobile 2300 Wireless Broadband Router LEDs
Back to Top

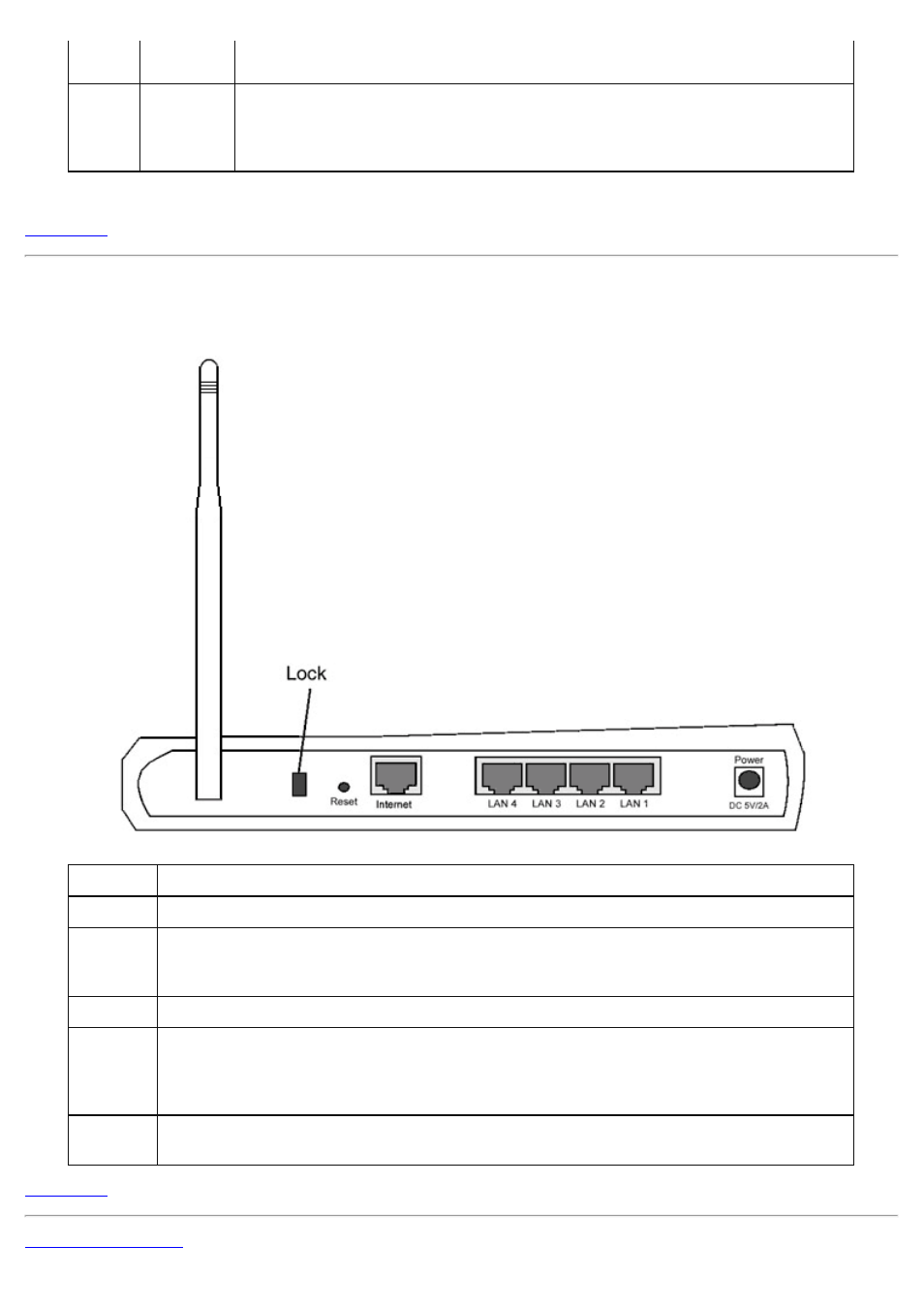

Back Panel
Connector Description
Lock Accept locking devices for protecting the device from theft.
Reset Use an object, such as a stretched paper clip, to press the button for at least 3 seconds. Power
LED will be off for a short time and then light up again. You can release the button now to to reset
the device to its factory-default settings.
Internet Accept an RJ-45 connector for network cabling.
LAN 1
LAN 2
LAN 3
LAN 4 Accept an RJ-45 connectors for connecting up to 4 PCs to the gateway's 4-port switch.
Power Connect the power adapter to this Power port, and then plug the other end of the power cable into
a power outlet.
