System Components
Dell™ Latitude™ D600 Service Manual
Back to Contents Page
CAUTION:
Many repairs may only be done by a certified service technician. You should only perform troubleshooting and simple repairs as
authorized in your product documentation, or as directed by the online or telephone service and support team. Damage due to servicing that is not
authorized by Dell is not covered by your warranty. Read and follow the safety instructions that came with the product.
NOTICE:
Unless otherwise noted, each procedure in this document assumes that a part can be replaced by performing the removal procedure in
reverse order.

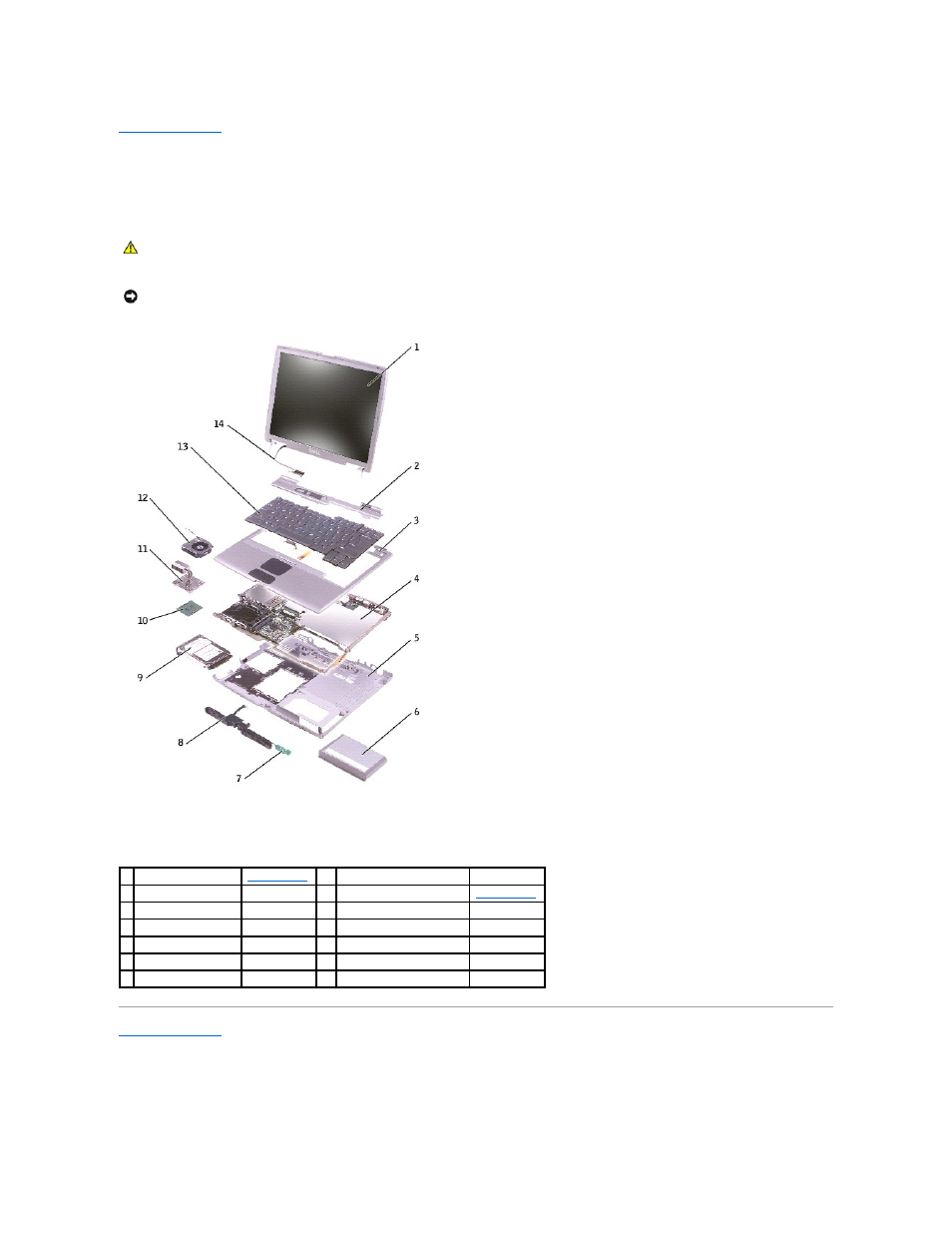

1 display assembly
See MINI RSL
8
speakers
2N406
2 center control cover
8M659
9
hard drive
See MINI RSL
3 palm rest
6M859
10 modem
Y0231
4 system board
U0996
11 thermal cooling assembly
2N403
5 computer base
F1727
12 fan
4R197
6 battery
0R160
13 keyboard
D1005
7 reserve battery
D1004
14 display cable
6M871
