Modem
Dell™ Latitude™ D600 Service Manual
1. Follow the instructions in " Preparing to Work Inside the Computer ."
2. Remove the keyboard .
3. Remove the display assembly .
4. Remove the palm rest .
5. Remove the M2 x 3-mm screw.
6. Disconnect the modem cable from the modem.
7. Pull up on the pull-tab to disconnect the modem from the system board connector.
CAUTION: Before performing the following procedures, read the safety instructions in your System Information Guide.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such
as the back panel) on the computer.

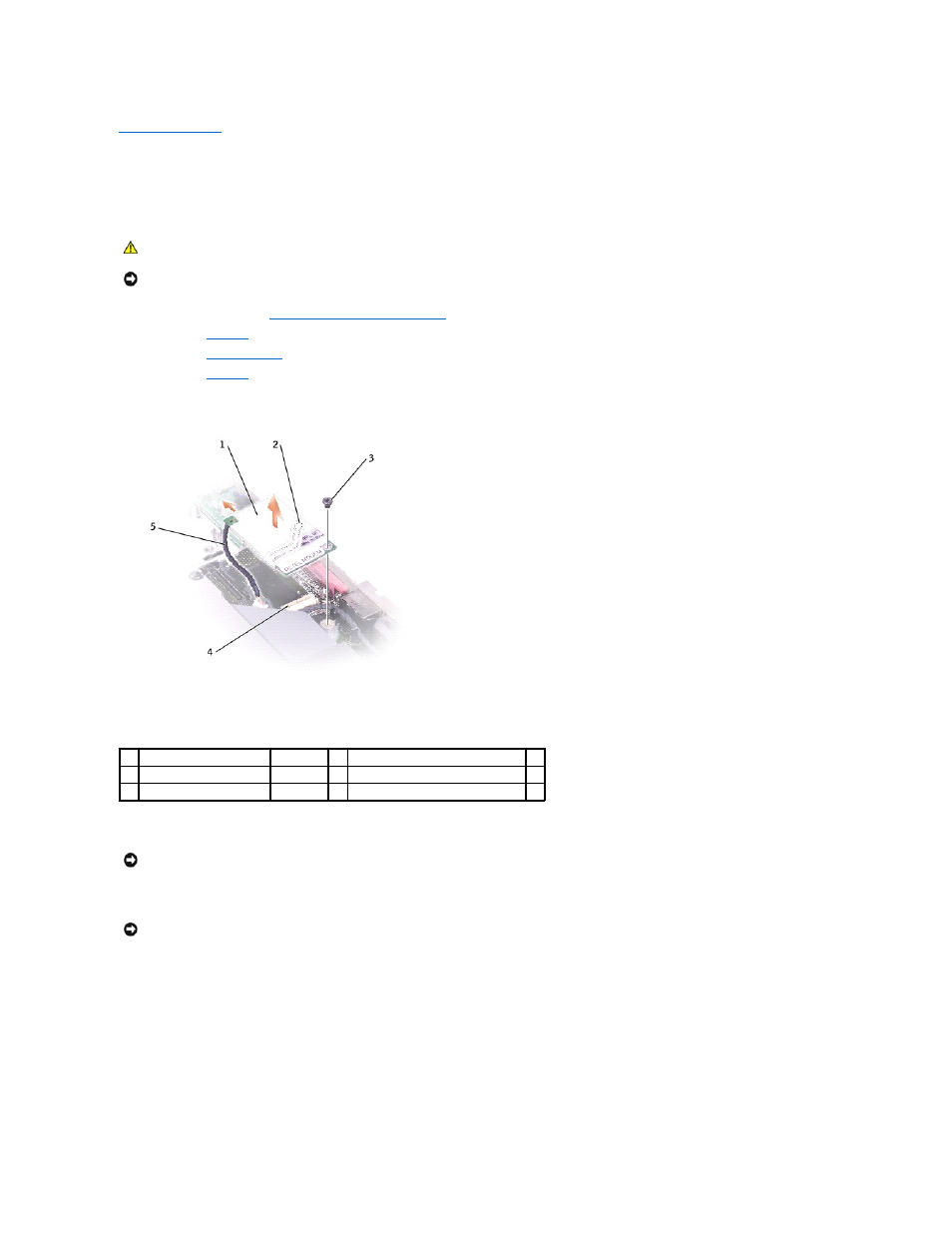

1 modem Y0231 4 system board connector
2 pull-tab 5 modem cable
3 M2 x 3-mm screw 4270E
NOTICE: Do not disconnect the modem cable from the system board.
NOTICE: Ensure that the modem cable is routed correctly when you replace the modem.
