4-36

Dell Latitude LM Systems Service Manual

I/R Device

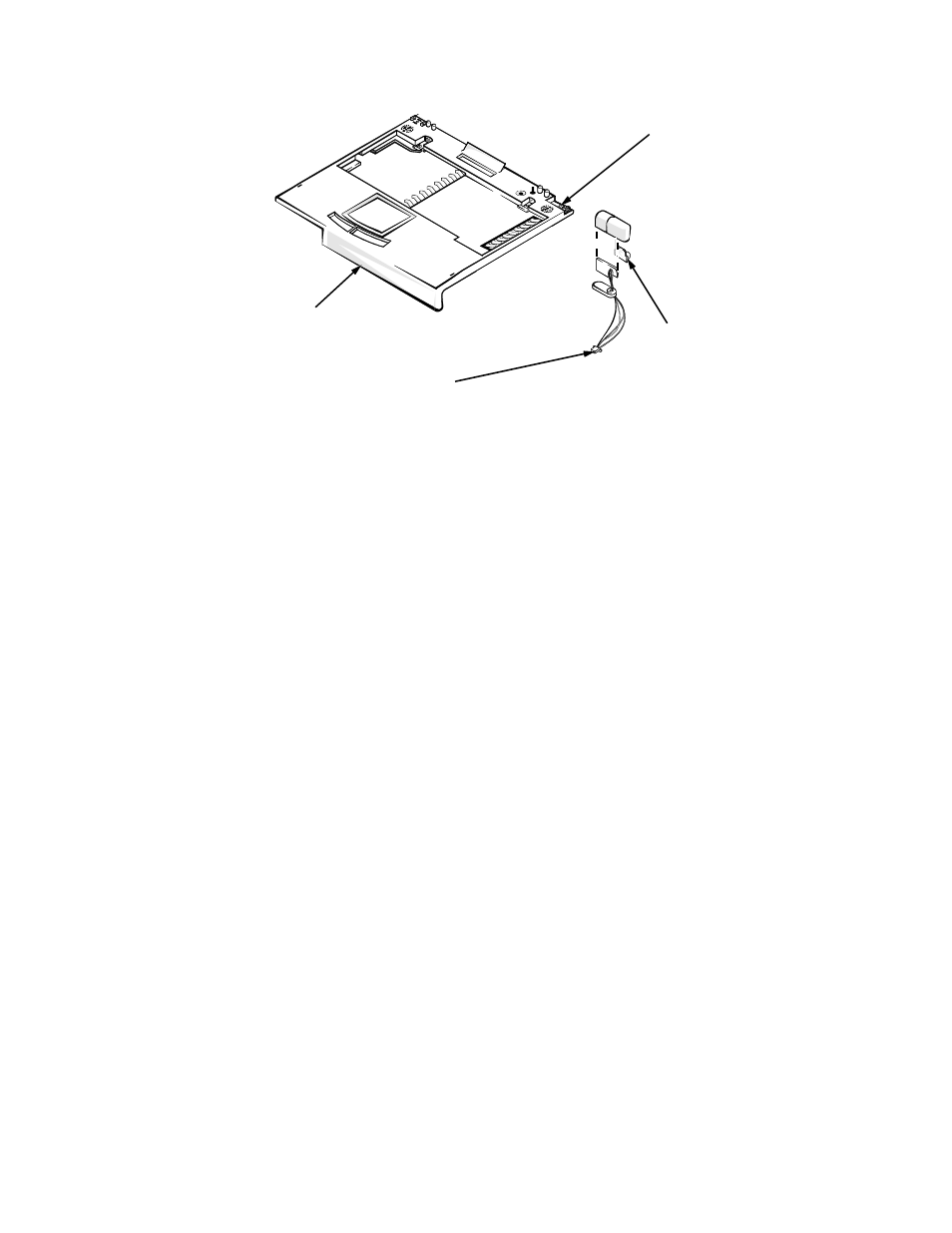

Figure 4-29. I/R Device Removal

To remove the infrared (I/R) device, follow these steps:

1. Remove the top assembly.

See “Top Assembly” found earlier in this section.

2. Disconnect the I/R device connector from the status display board.

3. Dislodge the I/R device from the recess on the top assembly.

Thread the I/R connector and wires through the opening on the top
assembly.

4. Remove the I/R device from the top assembly.

top
assembly

I/R connector

recess

I/R lens
