4-34 Dell Latitude LM Systems Service Manual
Speakers

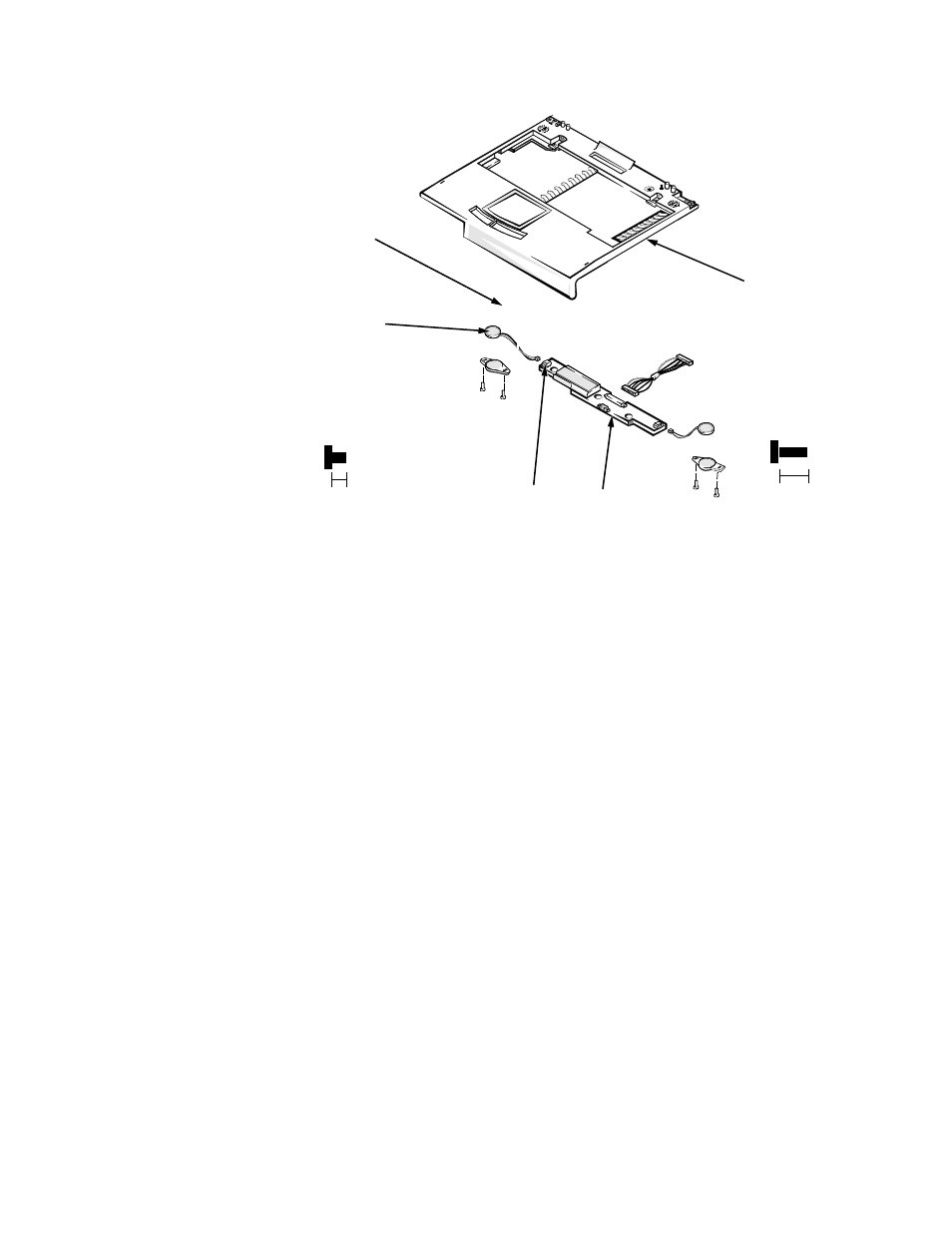

Figure 4-27. Speakers Removal
To remove the speakers, follow these steps:
1. Remove the top assembly.
See the previous section, “Top Assembly.”
2. Remove speaker screws S5, S6, S22, and S23.
Remove the plastic housing holding the speakers.
3. Disconnect the speaker connectors from both ends of the status display
board.
4. Remove the pieces of plastic tape holding the connector wires to the top
assembly.
5. Remove the speakers from the top assembly.
S5
(screws S22 and S23
are 6 mm)
S6
plastic housing (2)
speaker (2)
speaker
connector
status display
board
top
assembly
6 mm
(screws S5 and S6
are 3 mm)
3 mm
S22
S23
