Page 66
4-30
Dell Latitude LM Systems Service Manual
K
eyboard
This section provides the removal procedure for the keyboard. Also, it includes
the removal procedure for the heat sink.

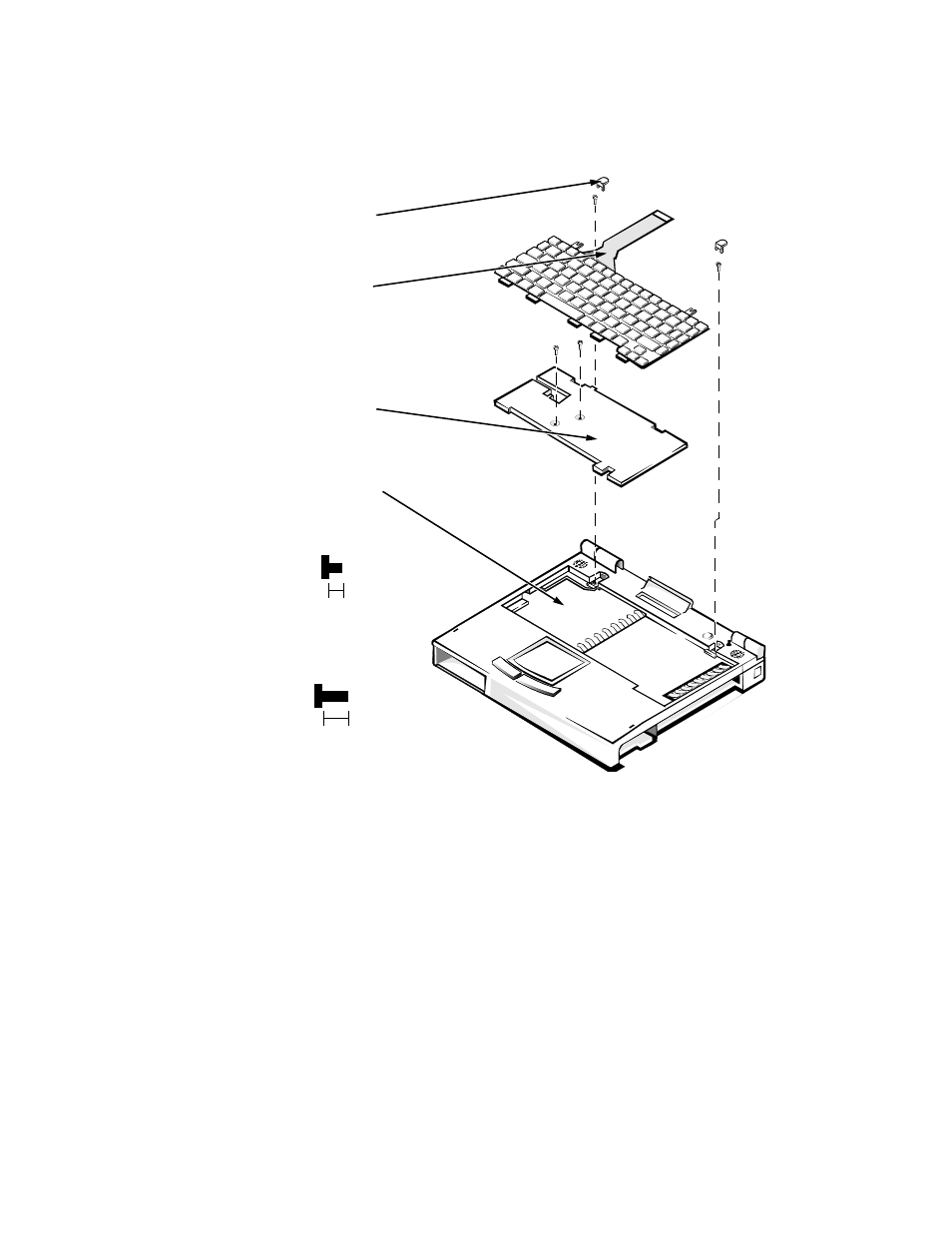

Figure 4-25. Keyboard Removal
To remove the keyboard, follow these steps:
1. Open the computer.
2. Remove the keyboard screw covers.
3. Remove keyboard screws S1 and S2.
Lay the keyboard back against the LCD assembly or a prop to avoid detach-
ing the keyboard cable.
screw
covers (2)
S1
S2
S4
S3
heat sink
keyboard
cable
main
board
(screws S1 and S2
are 3 mm)
(screws S3 and S4
are 5.5 mm)
5.5 mm
3 mm
