Back bezel, Back bezel -29 – Dell Latitude LM User Manual
Page 65
Removing and Replacing Parts
4-29
Back Bezel

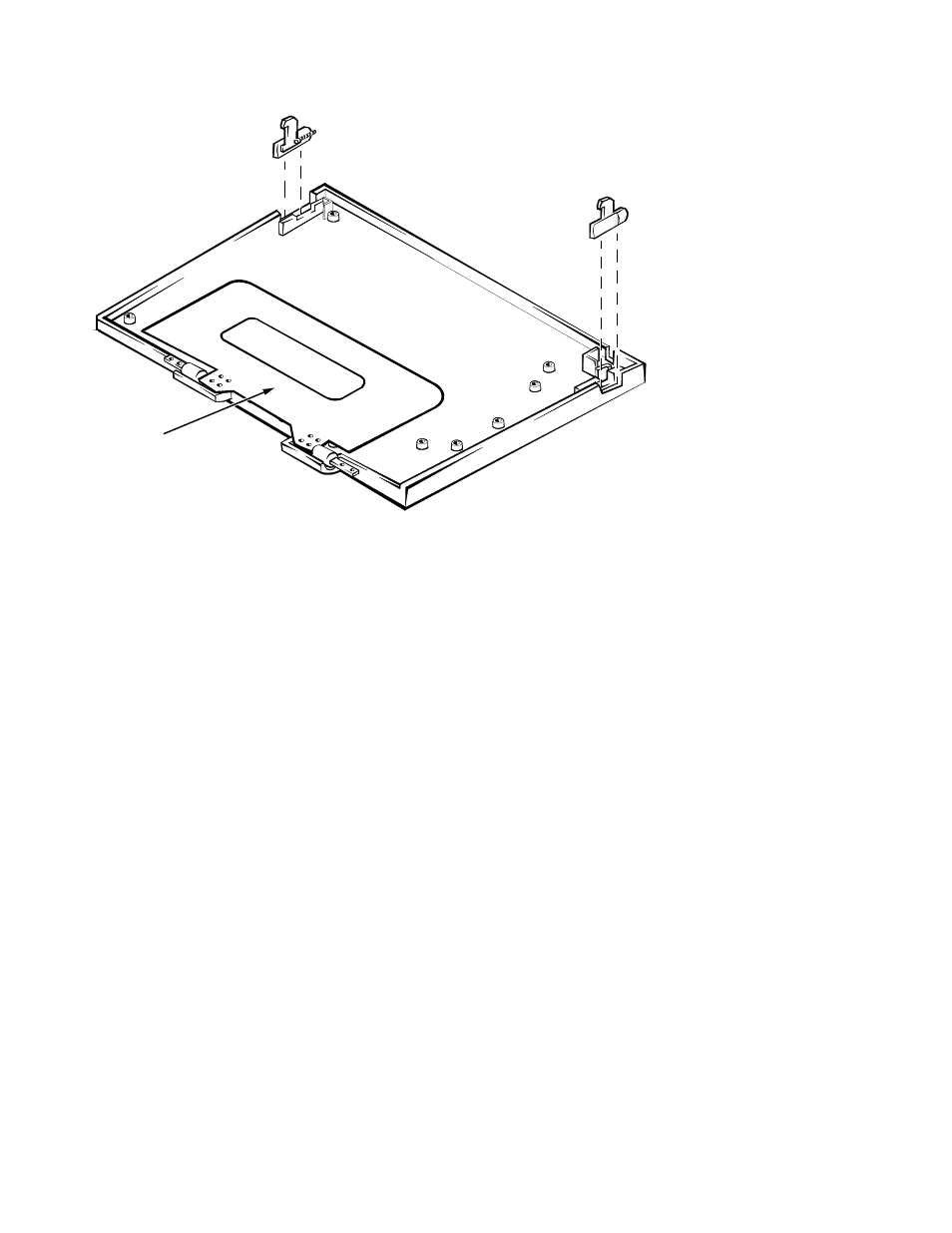

Figure 4-24. Back Bezel Removal
To remove the back bezel, follow these steps:
1. Remove the front bezel.
See “Front Bezel” found earlier in this section.
2. Remove the LCD panel.
See “LCD Panel” found earlier in this section.
NOTE: Be careful when removing any part of the LCD flex cable.
3. Remove the inverter board.
See “Inverter Board” found earlier in this section.
4. Remove the latches.
See “LCD Assembly Latches” found earlier in this section.
5. Remove the power/suspend indicator.
See the previous subsection, “Power/Suspend Indicator.”
back bezel
