Removing and Replacing Parts 4-35
Status Display Board

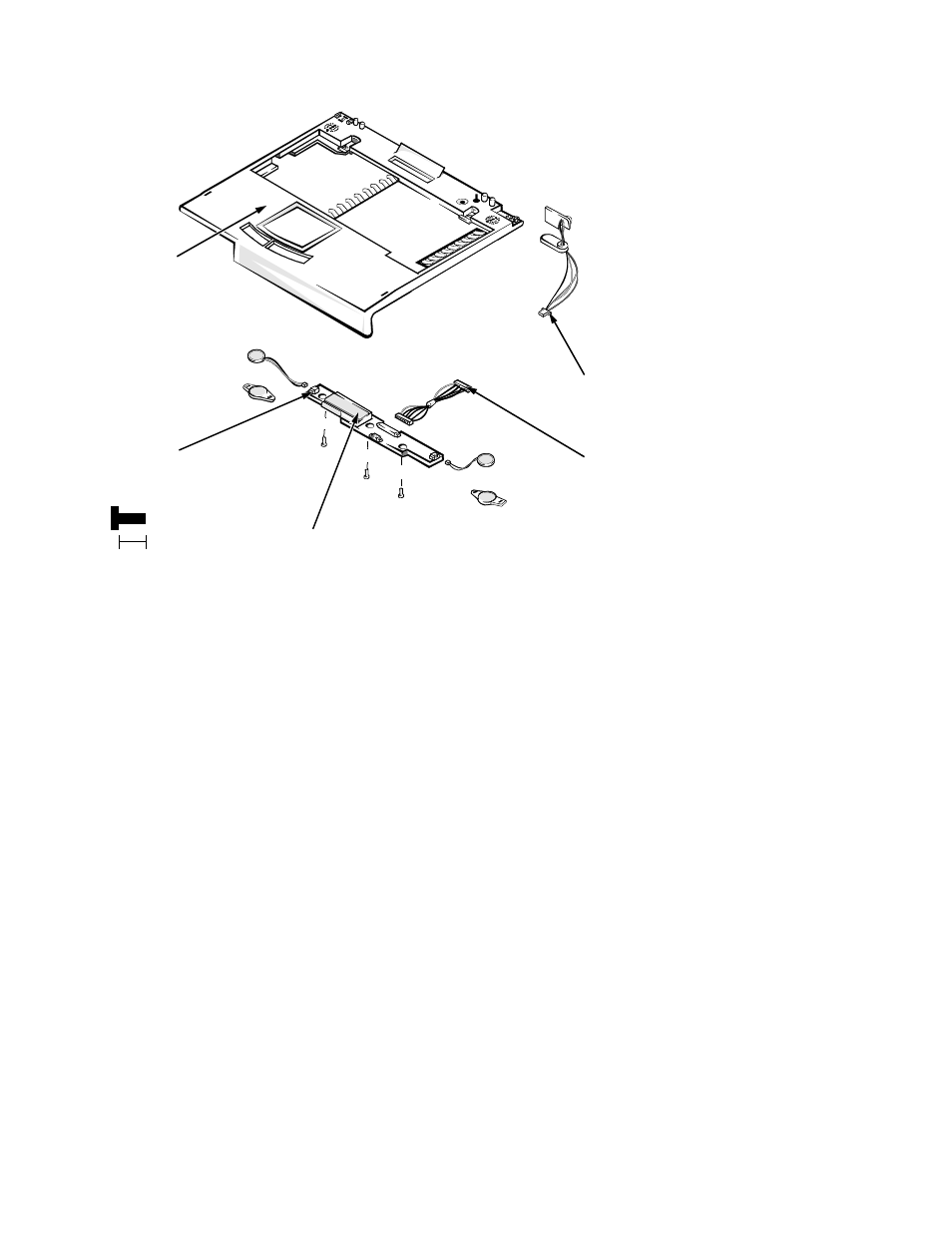

Figure 4-28. Status Display Board Removal
To remove the status display board, follow these steps:
1. Remove the top assembly.
See “Top Assembly” found earlier in this section.
2. Remove status-display board screws S7, S8, and S9.
3. Disconnect the two speaker connectors and the infrared device connec-
tor from the status display board.
4. Disconnect the status display board connector from the main board.
The connector wire assembly is held in place by a metal hook located on the
I/O bracket.
5. Remove the status display board from the top assembly.
status display
board
(screws S7–S9
are 6 mm)
speaker
connector (2)
infrared
device
connector
status-
display
board
connector
S7
S8
S9
top assembly
6 mm
