Video Card and Thermal Cooling Assembly
Dell™ Inspiron™ 9200
Removing the Video Card and Thermal Cooling Assembly
Replacing the Video Card and Thermal Cooling Assembly
Removing the Video Card and Thermal Cooling Assembly
1.
Follow the instructions in "
Before Working Inside Your Computer
."
1.
Remove the
hinge cover
.
2.
Remove the
keyboard
.
3.
Remove the
display assembly
.
4.
Remove the
palm rest
.
5.
Loosen the four captive screws from the video card and thermal cooling assembly.
6.
Gently pull up the video card and thermal cooling assembly from the system board.
Replacing the Video Card and Thermal Cooling Assembly
1.
Carefully re-align the video card over the connector on the system board and press down.
CAUTION:
Before performing the following procedures, read the safety instructions in your Product Information Guide.
NOTICE:
To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such
as the back panel) on the computer.
NOTE:
If you ordered a video card with your computer, it is already installed.
NOTE:
The video card thermal cooling (heat sink) is part of the video card assembly.

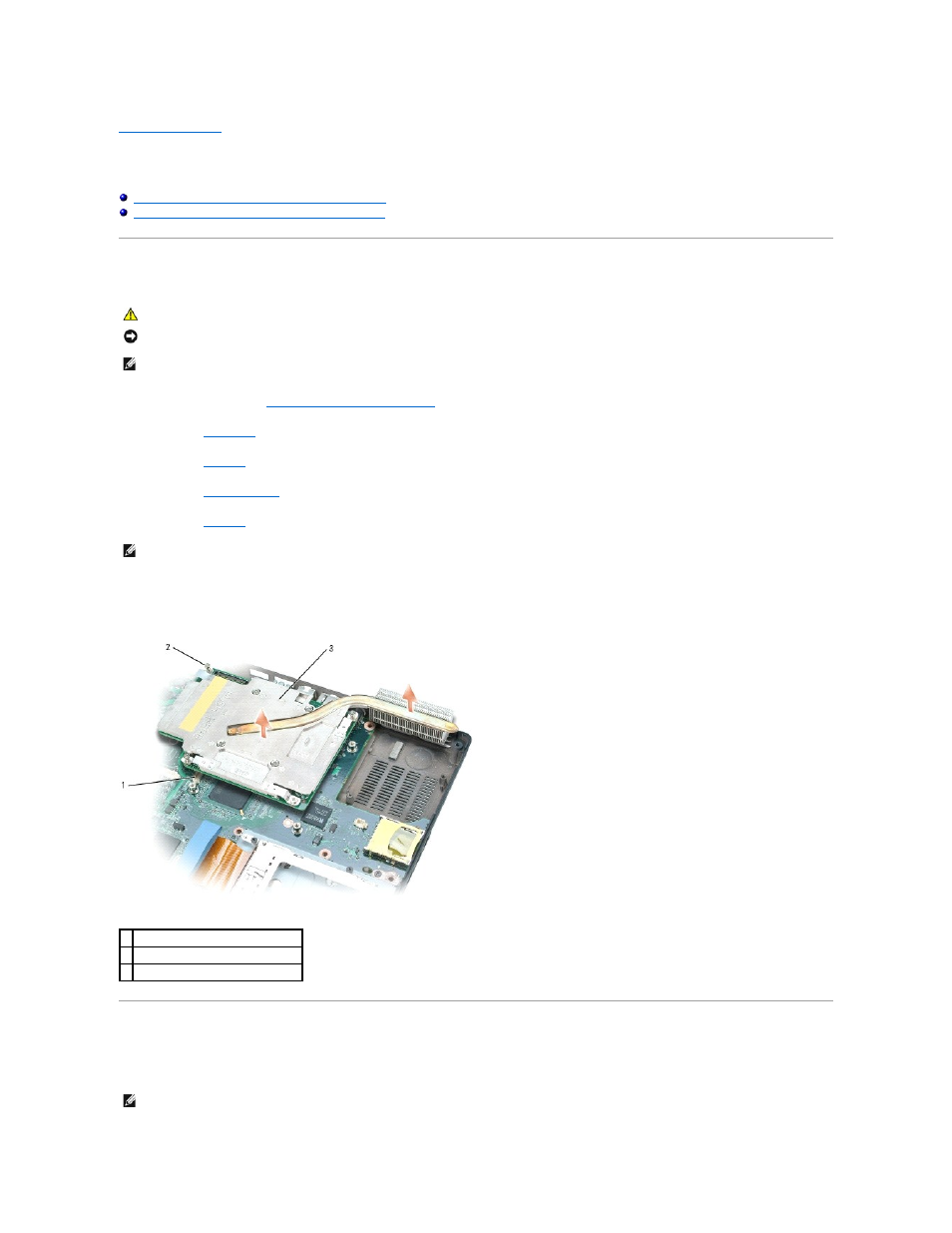

1 system board connector
2 M2.5 x 6-mm screws (4)
3 video card/thermal cooling assembly
NOTE:
The video card and thermal cooling assembly is labeled "PRESS HERE."
