Subwoofer
Dell™ Inspiron™ 9200
Removing the Subwoofer
If you ordered a subwoofer with your computer, it is already installed. To remove and replace a subwoofer:
1.
Follow the instructions in "
Before Working Inside Your Computer
."
1.
Remove the
hinge cover
.
2.
Remove the
keyboard
.
3.
Remove the
display assembly
.
4.
Remove the
palm rest
.
5.
Loosen the two captive screws that secure the subwoofer in place.
6.
Remove the subwoofer connector from the system board.
7.
Connect the cable to the subwoofer connector.
8.
Replace the battery in the battery bay.
Replacing the Subwoofer
1.
Reconnect the subwoofer cable to the system board.
CAUTION:
Before performing the following procedures, read the safety instructions in your Product Information Guide.
NOTICE:
To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such
as the back panel) on the computer.

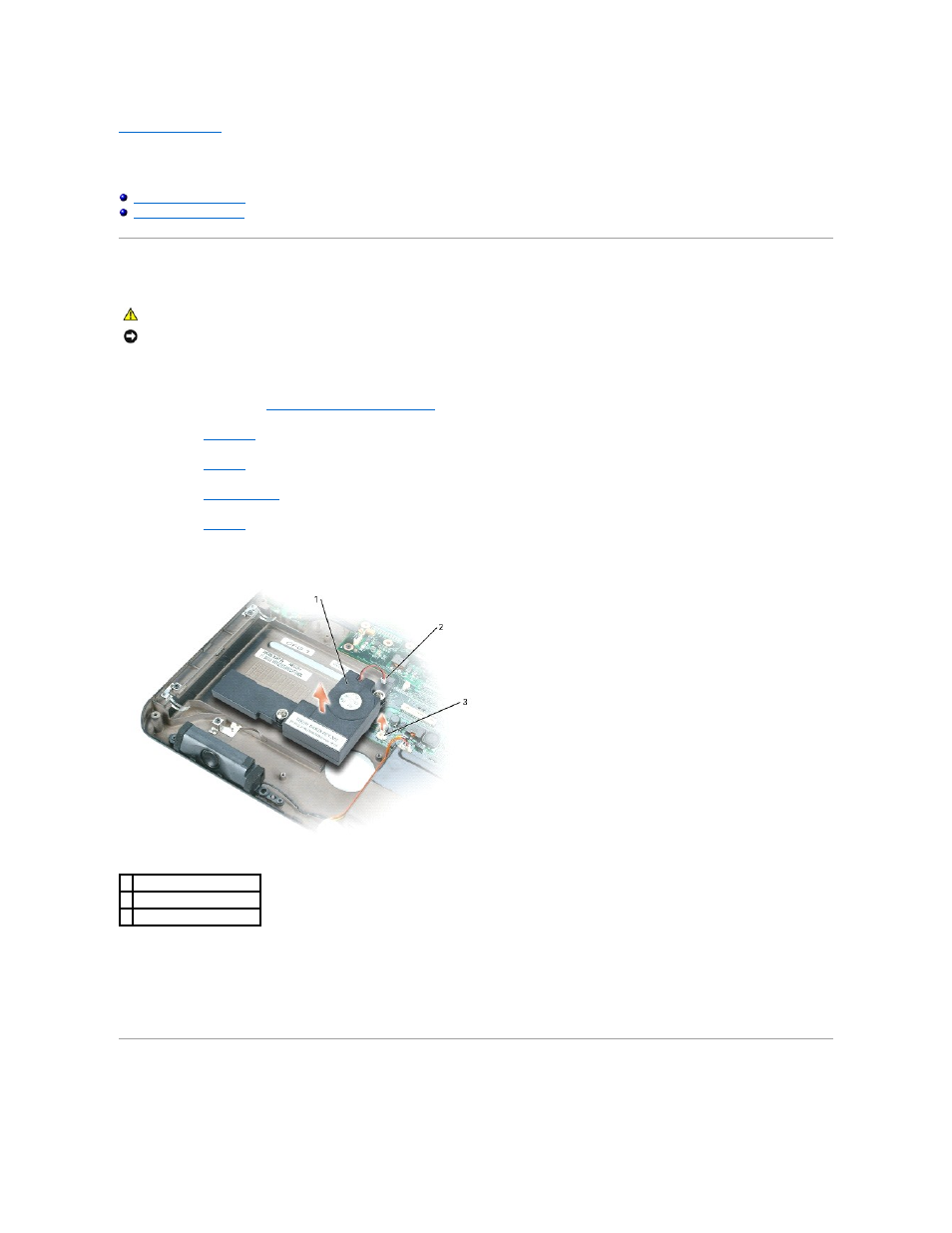

1 subwoofer
2 subwoofer cable connector
3 system board connector
