USB Port Board
Dell™ Inspiron™ 9200
Removing the USB Port Board
1.
Follow the instructions in "
Before Working Inside Your Computer
."
2.
Remove the
hinge cover
.
3.
Remove the
keyboard
.
4.
Remove the
display assembly
.
5.
Remove the
palm rest
.
6.
Remove the connector from the system board, then remove the M2.5 x 5-mm screw and lift the board up and out of the computer.
Replacing the USB Port Board
1.
Insert the USB port board under the small lip on the bottom panel at the back of the board and over the pin on the front side of the board.
2.
Reinstall the M2.5 x 5-mm screw securing the board.
3.
Insert the connector into the system board.
4.
Perform the steps to Remove the USB port board in reverse.
5.
Replace the
palm rest
.
CAUTION:
Before you begin any of the procedures in this section, follow the safety instructions located in the Product Information Guide.
NOTICE:
To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such
as the back panel) on the computer.
NOTICE:
To avoid damaging the system board, you must remove the main battery before you begin working inside the computer.

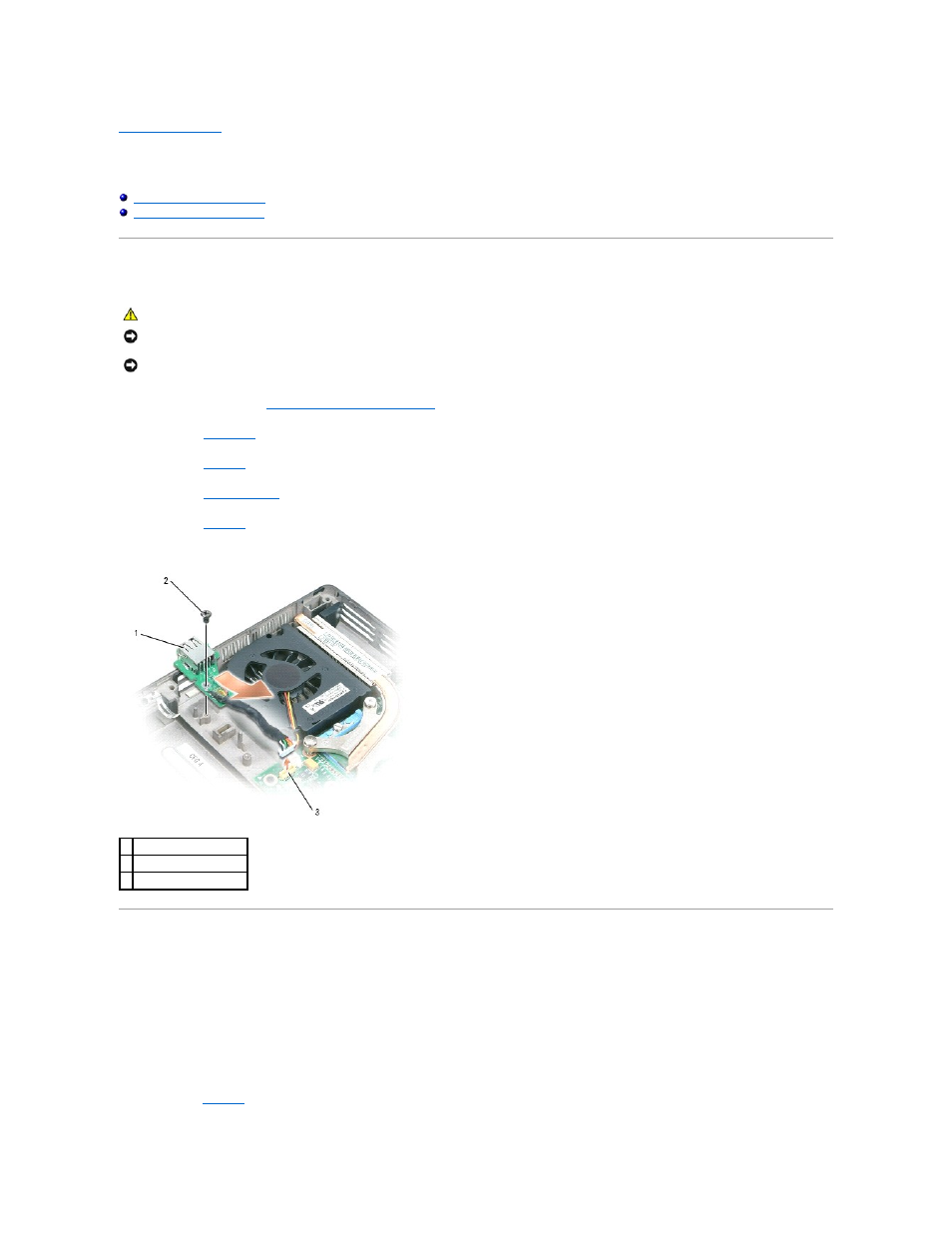

1 USB port board
2 M2.5 x 5-mm screw (1)
3 system board connector
