Coin Cell Battery
Dell™ Inspiron™ 9200
Removing the Coin Cell Battery
Replacing the Coin Cell battery
Removing the Coin Cell Battery
1.
Follow the instructions in "
Before Working Inside Your Computer
."
2.
Remove the
hinge cover
.
3.
Remove the
keyboard
.
4.
Remove the existing coin cell battery:
a.
Disconnect the battery cable connector from the system board.
b.
Press the release latch on the side of the coin-cell battery compartment, and lift up the battery.
Replacing the Coin Cell battery
1.
Install the replacement battery:
a.
Insert the battery at a 30-degree angle under the release latch with the positive side up, and then push the battery into place.
b.
Connect the battery cable to the connector on the system board.
2.
Replace the
keyboard
.
3.
Replace the
hinge cover
.
CAUTION:
Before you begin any of the procedures in this section, follow the safety instructions located in the Product Information Guide.
NOTICE:
To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such
as the back panel) on the computer.
NOTICE:
To avoid damaging the system board, you must remove the main battery before you begin working inside the computer.

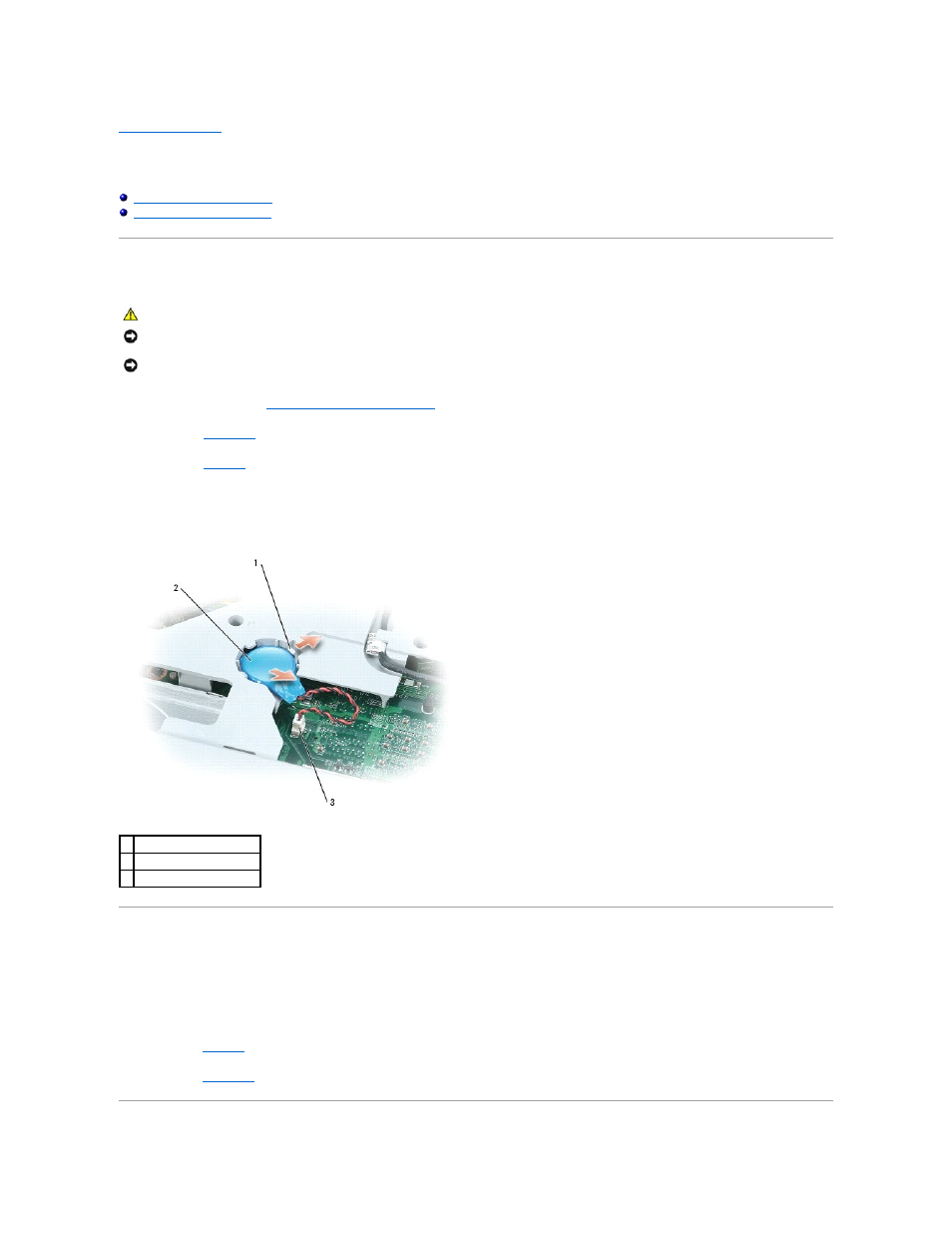

1 release latch
2 coin cell battery
3 battery cable connector
