A Tour of Your Computer
17
AIR
VENT
—
The computer uses fans to create airflow through the vents, which prevents the computer
from overheating.
CAUTION:
Do not block, push objects into, or allow dust to accumulate in the air vents. Do not store
your computer in a low-airflow environment, such as a closed briefcase, while it is running. Restricting
the airflow can damage the computer or cause a fire.
AUDIO
CONNECTORS
I E E E 1 3 9 4
CONNECTOR
—
Connects devices supporting IEEE 1394 high-speed transfer rates, such as
some digital video cameras.
HARD
DRIVE
—
Stores software and data.
P C C
ARD
SLOT
—
Supports one PC Card, such as a modem or network adapter. The computer ships with
a plastic blank installed in the slot. For more information, see the
Dell Inspiron Help file. To access the help

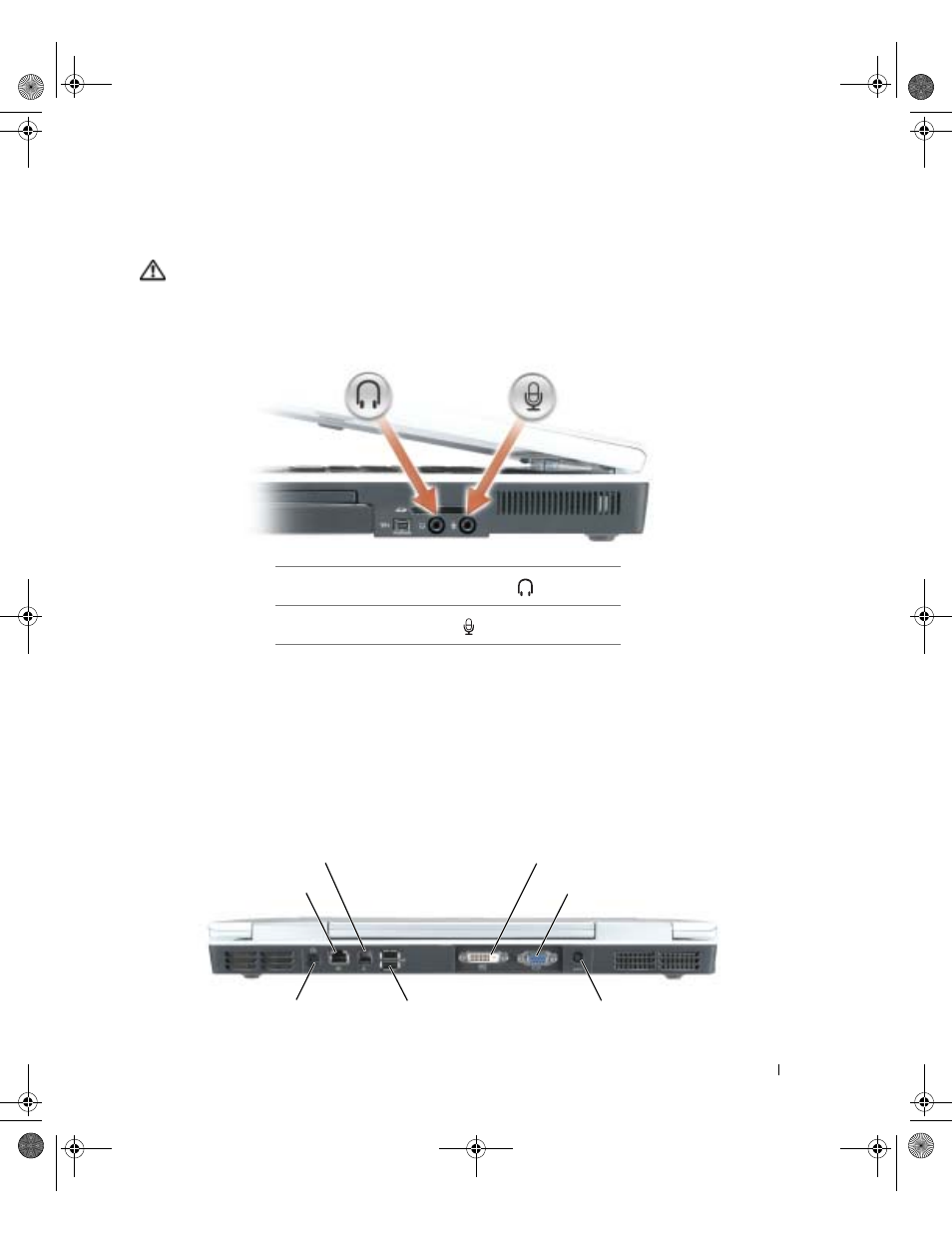

Back View
Attach headphones or speakers to the
connector.
Attach a microphone to the
connector.
video connector
network connector (RJ-45)
AC adapter connector
USB connectors (2)
modem connector (RJ-11)
S-video TV-out connector
DVI-D connector
