Dell Inspiron X200 - Manual (Page 25)

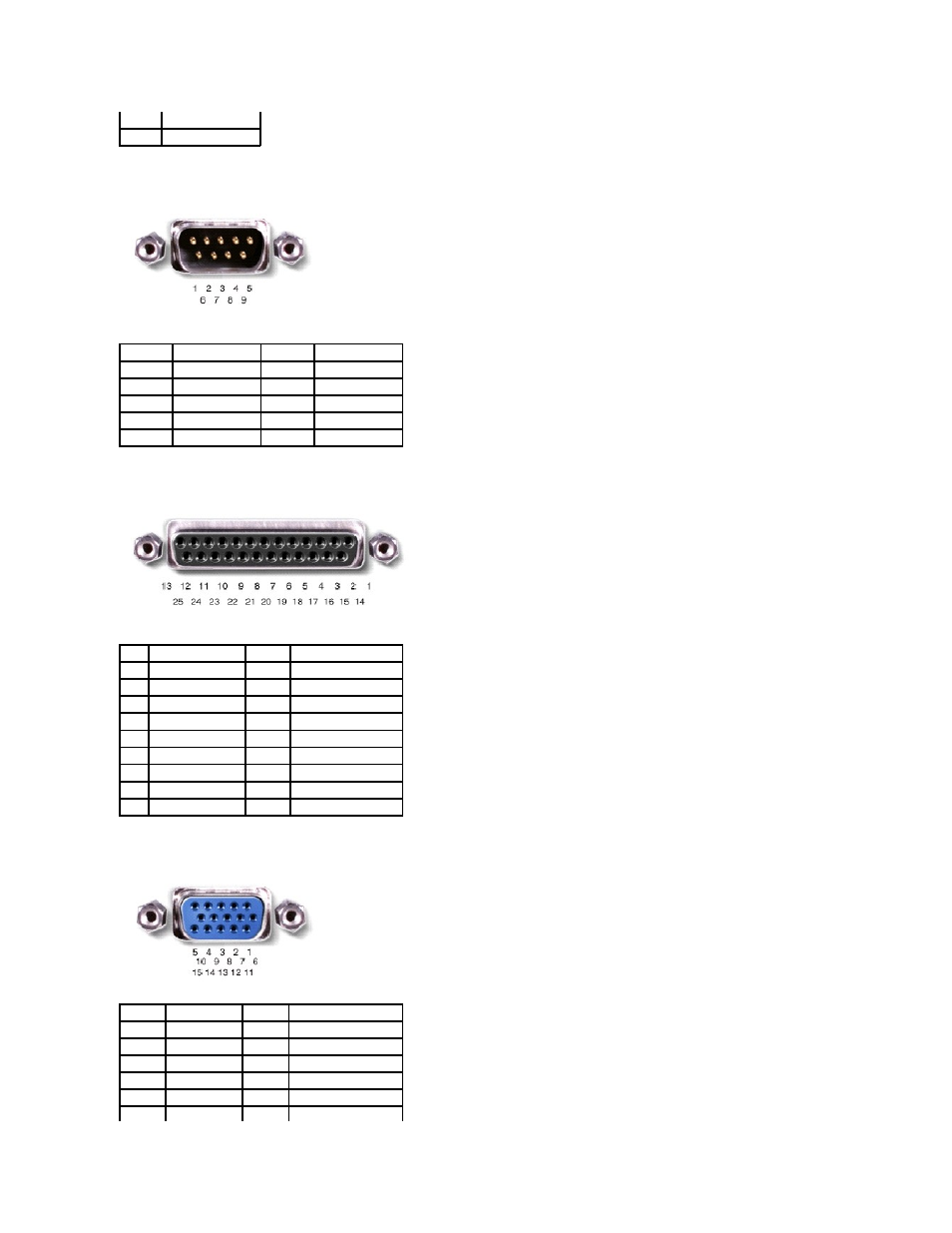

Serial Connector
Parallel Connector
Video Connector
3 TPA-
4 TPA-
Pin Signal Pin Signal
1 DCD 6 DSR
2 RXDA 7 RTS
3 TXDA 8 CTS
4 DTR 9 RI
5 GND
Pin Signal Pin Signal
1 STRB#/5V 10 ACK#/DRV#
2 PD0/INDEX# 11 BUSY/MTR#
3 PD1/TRK0# 12 PE/WDATA#
4 PD2/WP# 13 SLCT/WGATE#
5 PD3/RDATA# 14 AUTOFD#
6 PD4/DSKCHG# 15 ERROR#/HDSEL#
7 PD5F 16 INIT#/DIR#
8 PD6F 17 SLCT_IN/#STEP#
9 PD7F 18-25 GND
Pin Signal Pin Signal
1 RED 9 CRT_VCC
2 GREEN 10 GND
3 BLUE 11 NC
4 NC 12 DAT_DDC2
5 GND 13 HSYNC
6 GND 14 VSYNC
