Modem
Dell™ Latitude™ 120L Service Manual
Removing the Modem
1.
Follow the instructions in
Before Working Inside Your Computer
.
2.
Remove the hinge cover. See
Removing the Hinge Cover
.
3.
Remove the optical drive. See
Removing the Optical Drive
.
4.
Remove the keyboard. See
Removing the Keyboard
.
5.
Remove the coin-cell battery. See
Removing the Coin-Cell Battery
.
6.
Remove the display assembly. See
Removing the Display Assembly
.
7.
Remove the palm rest. See
Palm Rest
.
8.
Remove the two M2 x 3-mm screws that attach the modem to the system board.
9.
Pull up on the pull-tab to disconnect the modem from the connector on the system board.
10.
Disconnect the modem cable from the modem.
Replacing the Modem
CAUTION:
Before you begin the following procedure, see the safety instructions in the Product Information Guide.
NOTICE:
To prevent damage to the system board, remove the main battery before working inside the computer. See
Before Working Inside Your
Computer
.
CAUTION:
To prevent static damage to components inside your computer, discharge static electricity from your body before you touch any of
your computer's electronic components. You can do so by touching an unpainted metal surface.

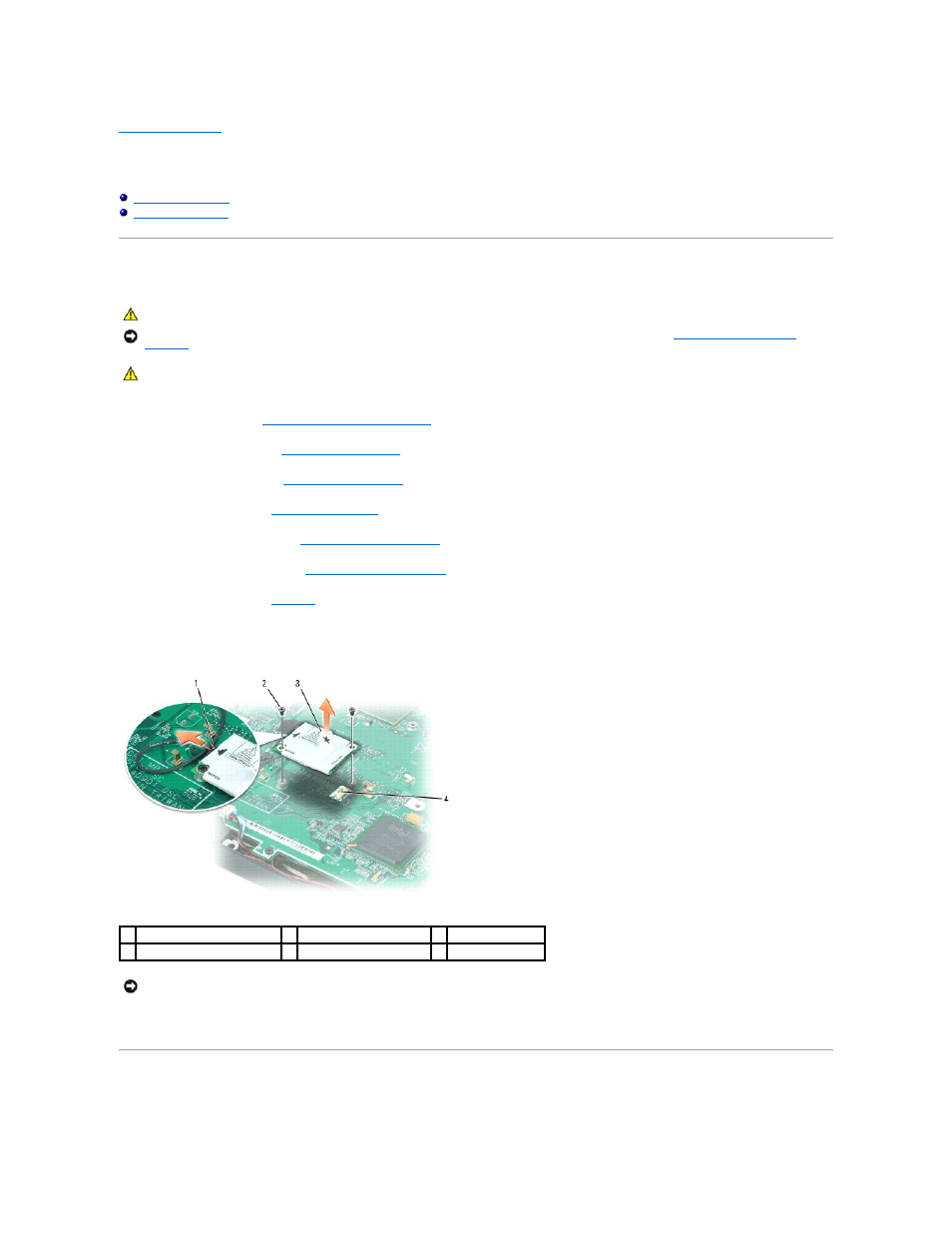

1 modem cable
2 M2 x 3-mm screws (2)
3 modem pull-tab
4 system board connector
NOTICE:
Do not disconnect the modem cable from the system board.
