98
Adding and Replacing Parts
3 Remove the existing modem:
a Remove the screw securing the modem to the system board, and set it aside.
b Pull straight up on the attached pull-tab to lift the modem out of its connector on the system
board, and disconnect the modem cable.
4 Install the replacement modem:
a Connect the modem cable to the modem.
NOTICE:
The connector is keyed to ensure correct insertion. If you feel resistance, check the connector and
realign the card.
b Align the modem with the screw holes and press the modem down into the connector on the
system board.
c Replace the screw that secures the modem to the system board.
5 Replace the modem cover.

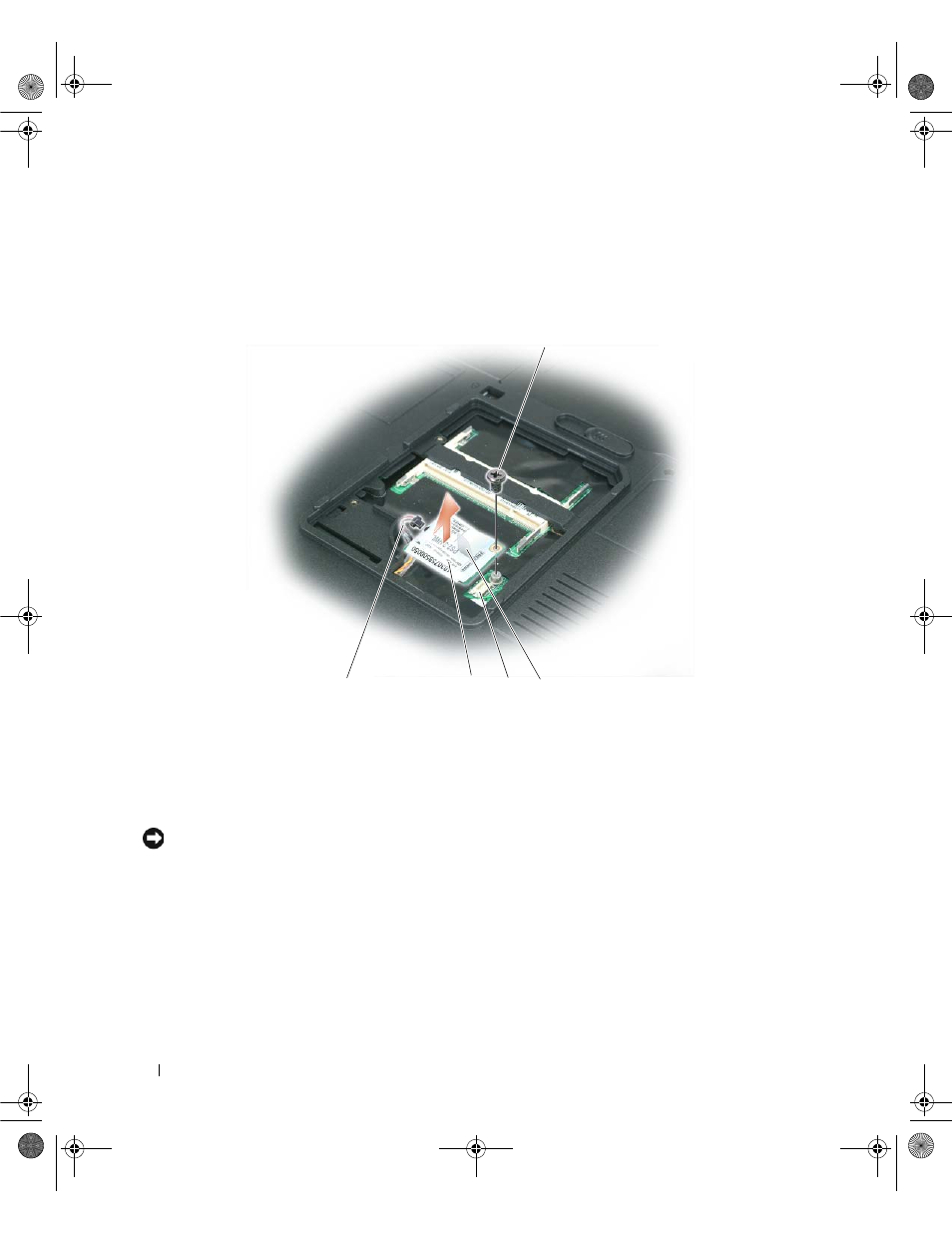

1 modem screw 2 modem pull-tab 3 modem connector on system
board
4 modem 5 modem cable
1
2 4 3 5
