106
Adding and Replacing Parts
NOTICE:
To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically
touching an unpainted metal surface (such as a connector on the back of the computer).
NOTICE:
To help prevent damage to the system board, you must remove the battery from the battery bay before
you begin working inside the computer.
1 Follow the procedures in "Before You Begin" on page 89.
2 Remove the hinge cover. See "Hinge Cover" on page 99.
3 Remove the six screws securing the display (two on the top, two on the bottom, and two on the back).
4 Disconnect the antenna cables from the Mini-Card.
5 Loosen the captive grounding-wire screw.
6 Disconnect the display cable, using the pull-tab.
7 Dislodge the display cable from the display cable channel.

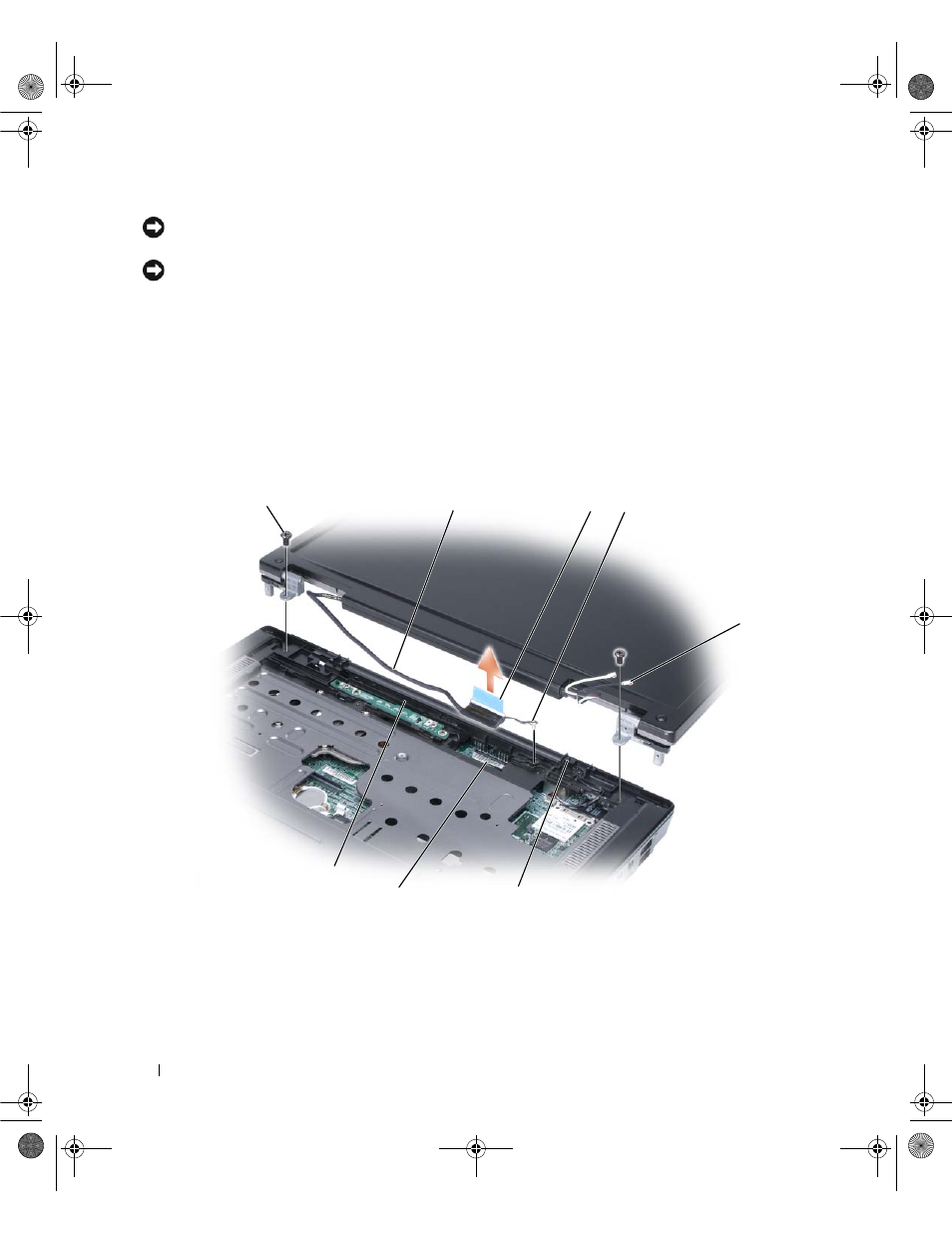

1 screws (2) 2 display cable 3 display cable pull-tab
4 grounding-wire screw 5 antenna cables (2) 6 standby switch
7 display cable connector on
system board 8 display cable channel
2 3
5
1 4
7
8
6
