Dell Latitude 131L User Manual
Page 96
96
Adding and Replacing Parts
NOTE:
If the memory module is not installed properly, the computer may not boot properly. No error message
indicates this failure.

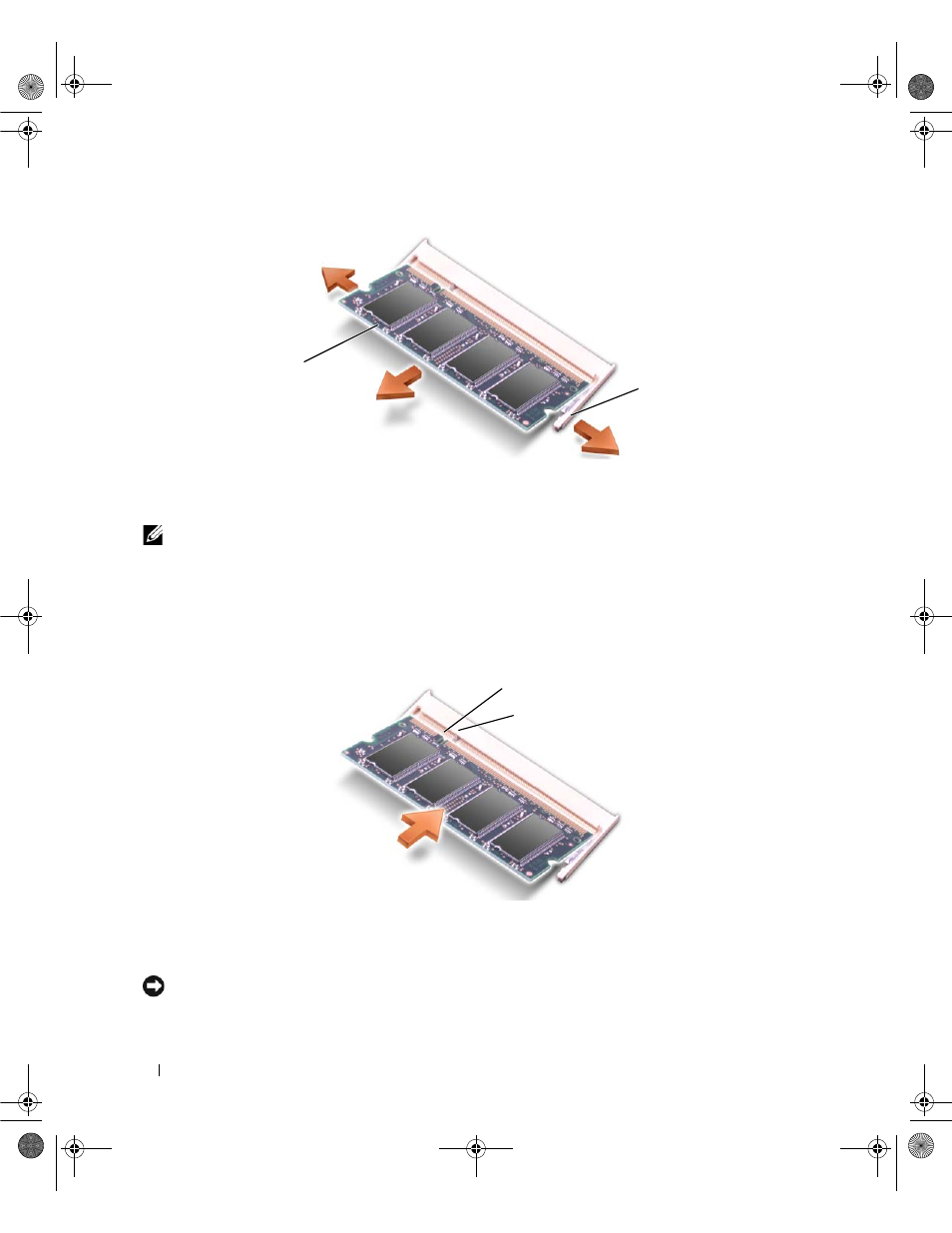

4 Ground yourself and install the new memory module:
a
Align the notch in the module edge connector with the tab in the connector slot.
b
Slide the module firmly into the slot at a 45-degree angle, and rotate the module down until it
clicks into place. If you do not feel the click, remove the module and reinstall it.
5 Replace the memory module cover.
NOTICE:
If the cover is difficult to close, remove the module and reinstall it. Forcing the cover to close may
damage your computer.
1
memory module
2
securing clips
(2 per connector)
1
notch
2
tab
1
2
1
2
book.book Page 96 Wednesday, April 4, 2007 7:31 AM
