32
NOTE: Use thread sealant compatible with propane gas
on all threaded piping connections.
1. Disconnect electrical connection.
2. Shut off main gas supply and disconnect kettle from
supply line.
3. Remove main kettle CONSOLE COVER.
4. Remove PLUG and SPRING.
5. Remove GAS ORIFICE and “O” RING.
6. Replace first with new “O” RING and then GAS
ORIFICE.
7. Replace SPRING and PLUG.
8. Replace main kettle CONSOLE COVER.
9. Reconnect electrical supply.
Conversion Parts Required
KGL-40
Part No. Description Quantity
KE95591 Conversion Label 1
KE54420-1 Air Intake Washer 1
KE53403-5 Gas Orifice 1
FA05002-29 “O” Ring 1
KGL-60 to 100
Part No. Description Quantity
KE95591 Conversion Label 1
KE54420-1 Air Intake Washer 1
KE53403-7 Gas Orifice 1
FA05002-29 “O” Ring 1

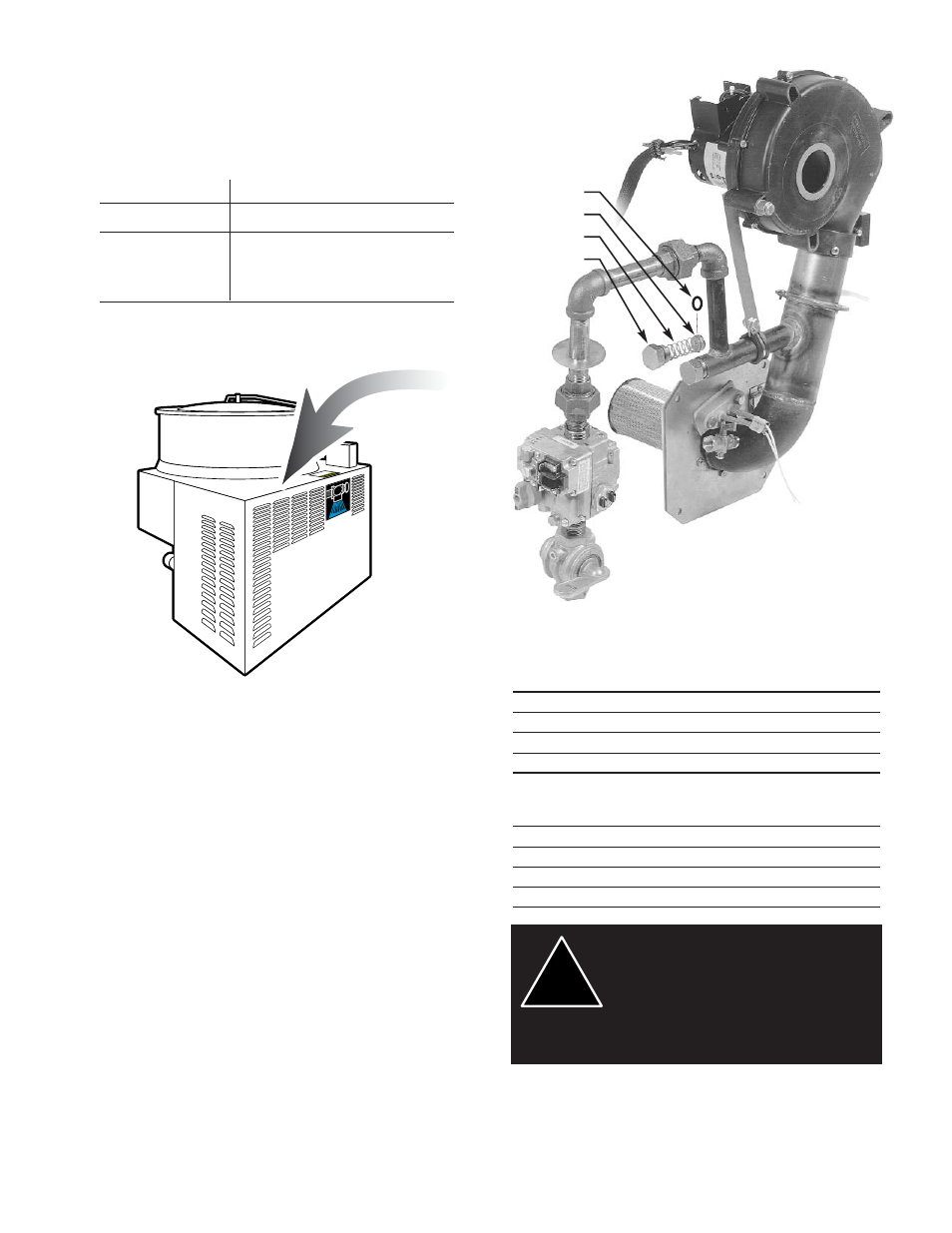

FIELD CONVERSION
INSTRUCTIONS
Natural Gas to Propane Gas
CONSOLE COVER
NOTE: Changing the gas type
requires a new Rating Label be affixed
to the unit.
When ordering conversion parts, it is
essential to provide both the Model #
and the Serial # of the unit in order to facilitate
completion of this label in the factory.
!
Kettles BTU's per Gas Water # of
Hour Type Column Orifices
KGL-40, 140000 Natural Gas 3.5 1
KGL-40-T, 140000 Propane 3.5 1
KGL-60 to 100,
KGL-60-T to 80-T,
190000 Natural Gas 3.5 1
KGL-40-TSH,
190000 Propane 3.5 1
KGL-40-F to 60-F,
KGL-40-SH to 60-SH,
PLUG
SPRING
GAS ORIFICE
“O” RING
