24
Dell™ PowerEdge™ 4210 Installation Guide
Routing Cables
The 42-U rack offers several features that simplify cable routing
(see Figure 1-11).
• Four cable-routing channels in each rack flange allow you to route power
distribution unit (PDU) power cables to the systems mounted in the rack.
• Cable clips mounted on the frame uprights keep cables out of the way and
help prevent cords from becoming tangled.

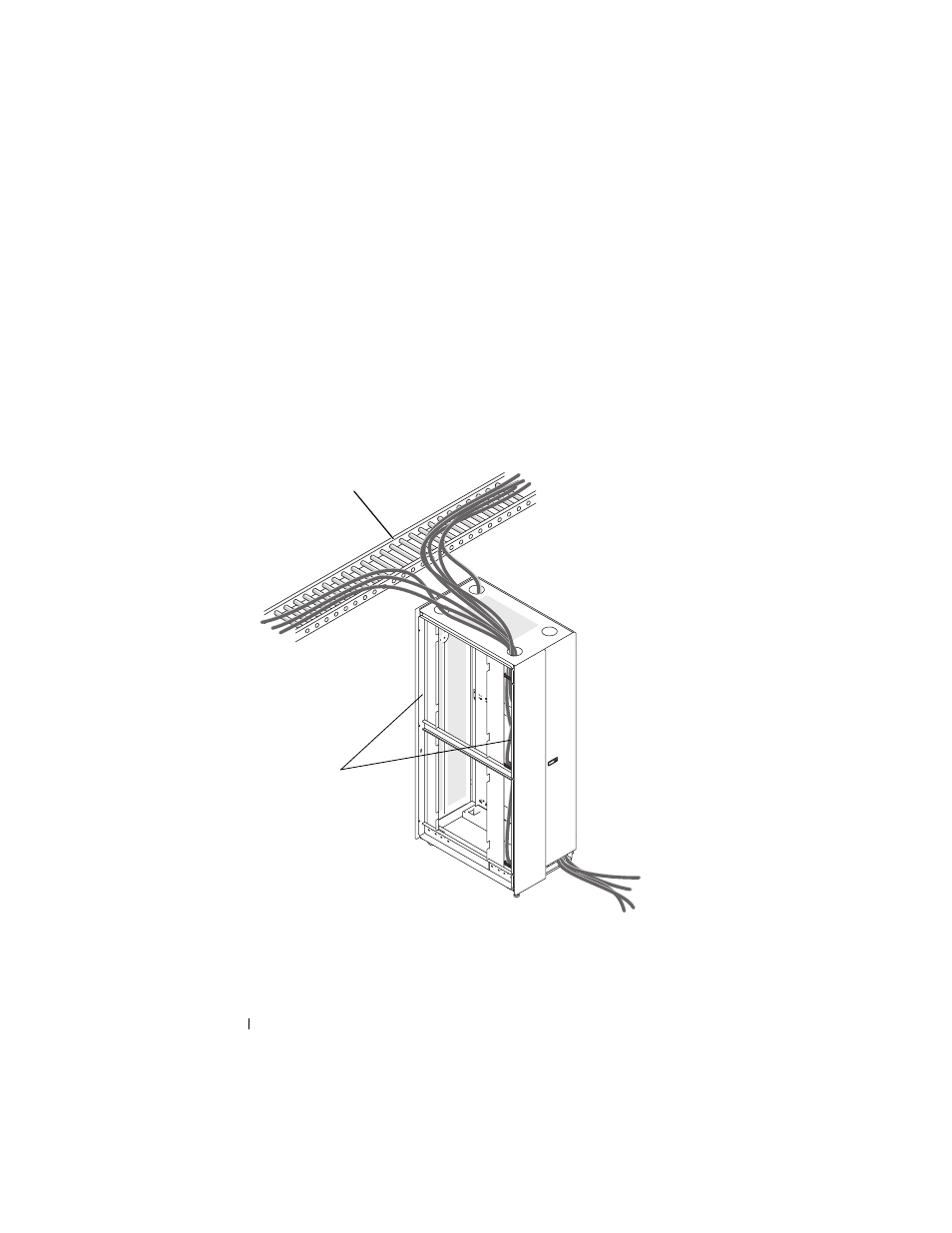

Figure 1-11. Cable-Routing Options
1 cable-routing channels (4) 2 cable raceway
3 cable exit route
2
1
