Rack Installation Guide
13

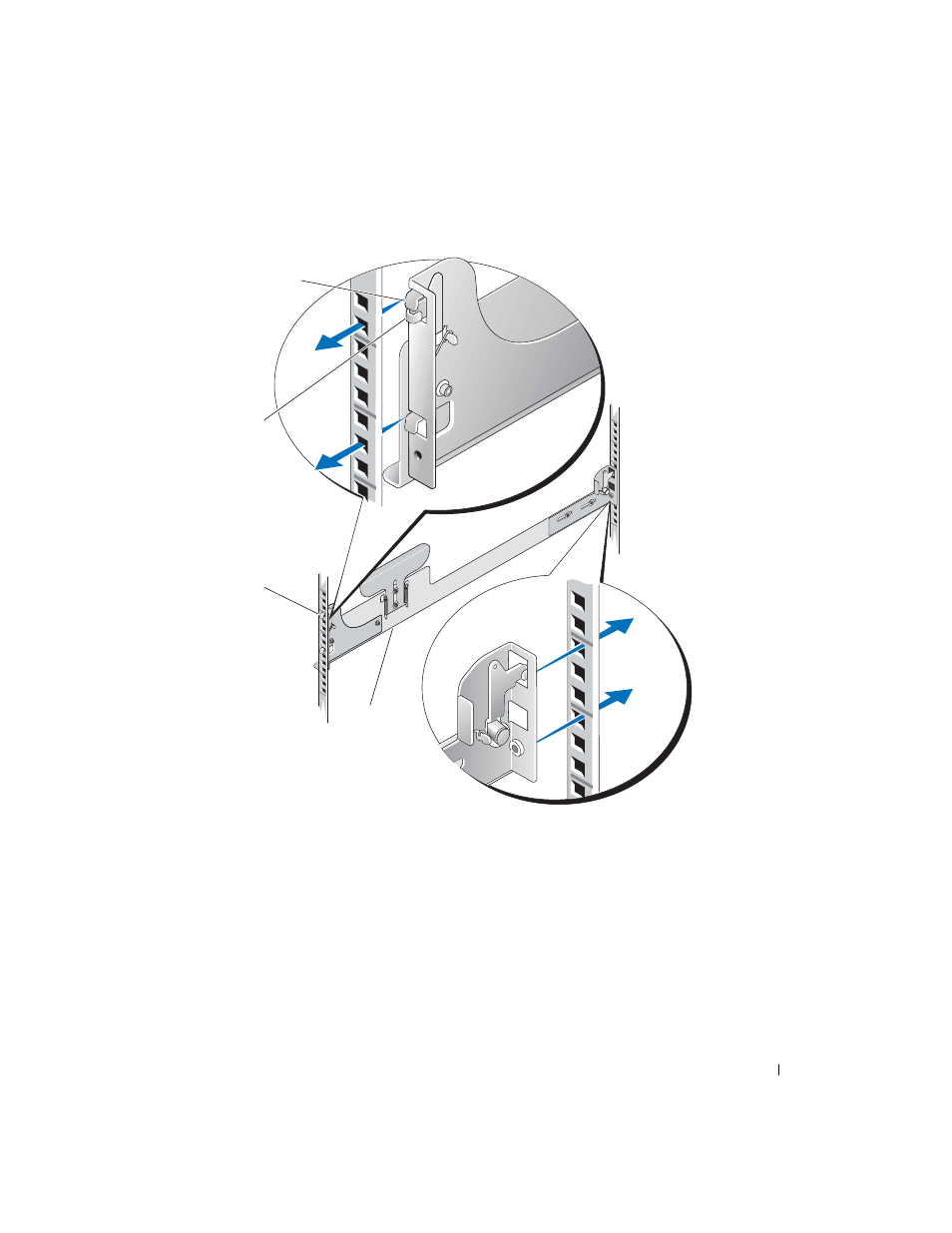

Figure 1-5. Installing the RapidRails Mounting Rails
Installing the VersaRails Mounting Rails
1 At the front of the rack cabinet, position one of the VersaRails mounting rails so that its mounting-
bracket flange fits between the marks (or numbered location) on the vertical rails (see Figure 1-6).
The six holes on the front of the mounting-bracket flange should align with the holes between the
marks you made on the front vertical rail.
2 Install two 10-32 x 0.5-inch flange-head Phillips screws in the mounting-bracket flange's top-
and bottom-holes to secure the mounting rail to the front vertical rail.
1 Mounting hooks 3 Front of rack
2 Blue tab 4 Mounting rail
3
4
1
2
