Rear vision camera, Warning, 26 english – Clarion compact disc User Manual
Page 20: Monitoring the rear vision camera, Connecting an external monitor
26
English
Owner
’s Guide
Note:
•
Use this camera as an auxiliary means to check-
ing obstacles.

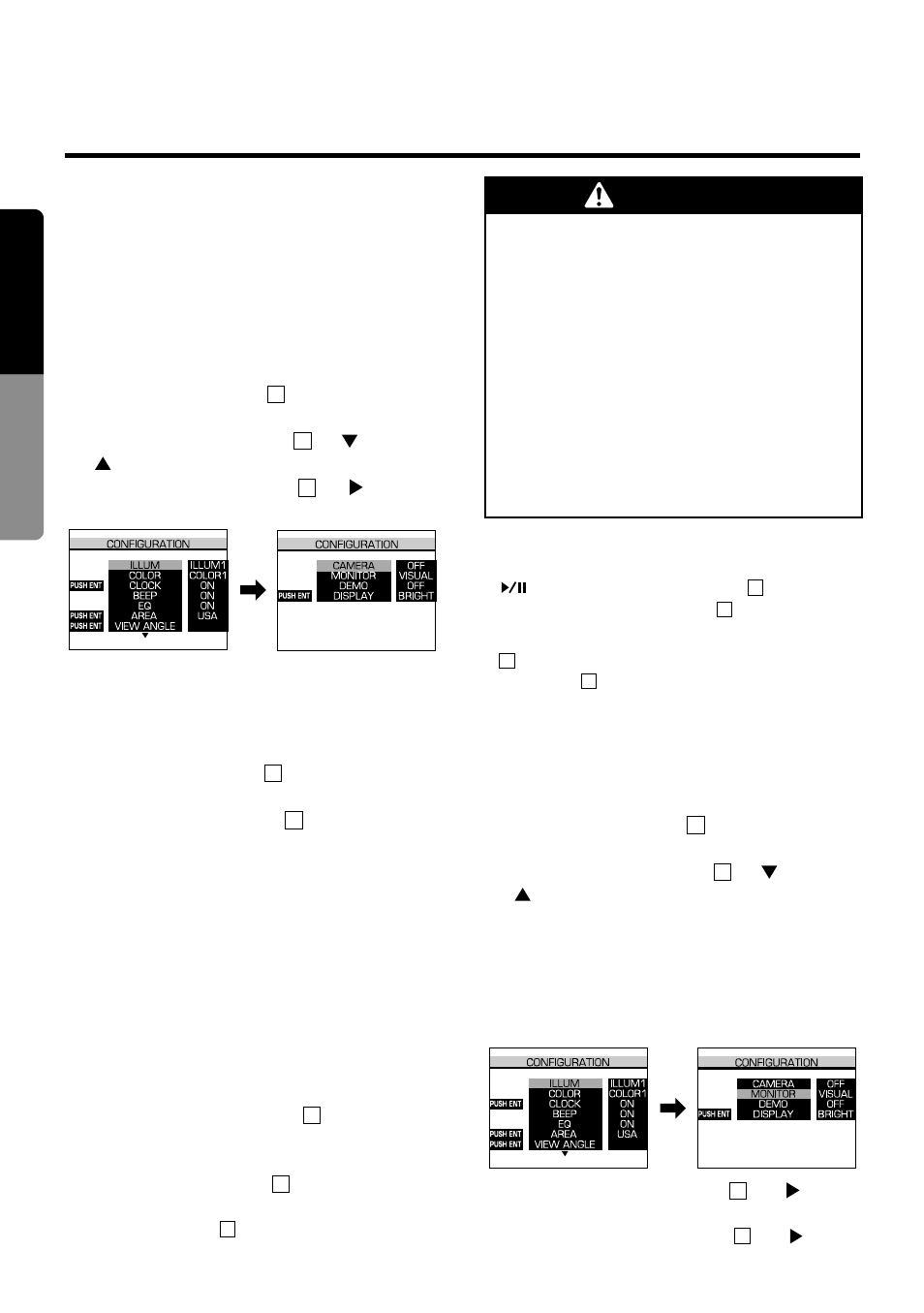

Monitoring the rear vision camera
The rear vision camera can be connected to this
unit.
For the power supply of the camera, mount the
power box sold separately (CCA-147-501).
1) Press the ADJ button
to select the CON-
FIGURATION display.
2) Slide the Up/Down button
to
(down) or
(up) to move the cursor to “CAMERA.”
3) Slide the Up/Down button
to
(right) to
change “OFF” to “ON.”
Note:
•
When “CAMERA” in the CONFIGURATION dis-
play is turned on, the setting can be switched even
if the camera has not been connected.
4) Press the ADJ button
to return to the pre-
vious mode.
5) Press the VISU button
to switch to the
camera mode.
Note:
•
When you shift into the reverse gear, the rear
vision camera is automatically turned on.
*
To cancel the rear vision camera, change “ON” to
“OFF” of the “CAMERA” in step 3) above.
Listening to a CD or cassette tape in
rear vision camera mode (monitor lock)
You can listen to a CD or cassette tape while
monitoring the rear vision camera.
1) Press the FUNC button
to select the
mode you want to listen to (CD, tape, or
radio).
2) Press the VISU button
to monitor the rear
vision camera.
*
The L indicator
lights.
Note:
•
When the monitor lock function is on, pressing the
(center) of the ENT button
to mute the
sound causes the L indicator
to flash.
*
To cancel the monitor lock, press the VISU button
. The mode returns to the previous one and the
L indicator
goes off.
Connecting an external monitor
An output terminal for an external monitor is pro-
vided on the back of the unit to connect an exter-
nal monitor.
1) Press the ADJ button
to select the CON-
FIGURATION display.
2) Slide the Up/Down button
to
(down) or
(up) to move the cursor to “MONITOR.”
3) Slide the Up/Down button
to
(right)
and switch “AUDIO” to “VISUAL.”
*
Slide the Up/Down button
to
(right)
11
11
11
10
9
7
9
11
9
7
12
7
10
11
11
10
Rear Vision Camera
THIS PRODUCT IS NOT INTENDED FOR
VIEWING TELEVISION BROADCASTS OR
VIDEO TAPES OR FOR PLAYING VIDEO
GAMES. Such uses of this product may
distract the driver or interfere with the dri-
ver’s safe operation of the motor vehicle
and may violate state law. CLARION DIS-
CLAIMS ANY LIABILITY FOR ANY BODILY
INJURY, INCLUDING FATALITIES, OR
PROPERTY DAMAGE THAT MAY RESULT
FROM ANY SUCH UNINTENDED USES OR
FROM ANY IMPROPER USE OF THIS
PRODUCT.
WARNING
