Operators instructions
CleverLevel switch, LBFS

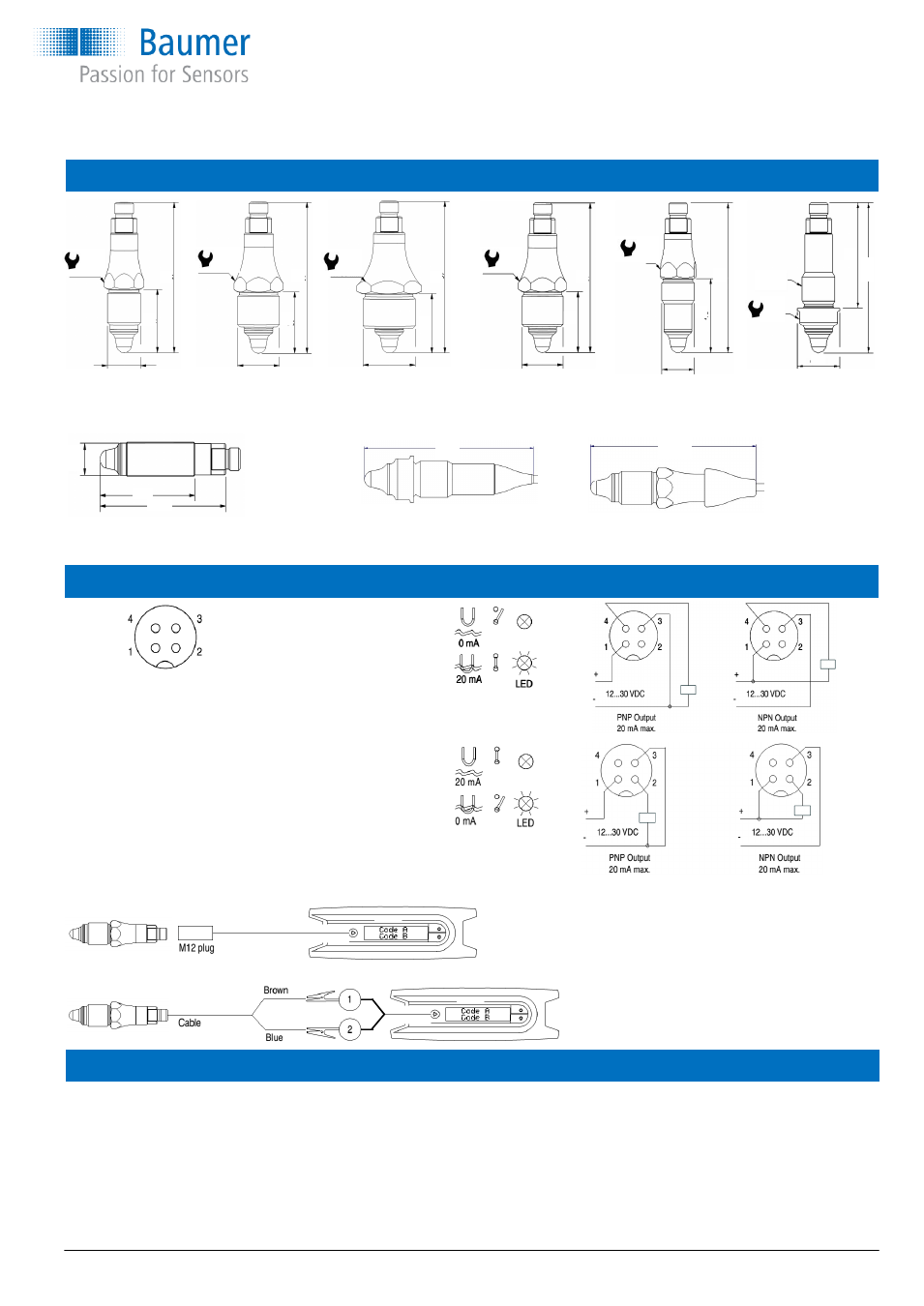

Dimensions
27
G½ ISO 228/1 G¾ ISO 228/1 G1 ISO 228/1 ¾” NPT G½ hygienic G½ reverse
LBFS-xx1xx.x LBFS-xx2xx.x LBFS-xx3xx.x LBFS-xx6xx.x LBFS-xx4xx.x LBFS-xx5xx.x
M18×1 Cable version Cable version
LBFS-xx1xx.x LBFS-x2xxx.x LBFS-x25xx-x
22 36 27
22
G½
68
97
22
48
97 97 97 97
97
Ø27
40 38 39 41
M
1
8
×1
87
65
91 103
Electrical connections
Function M12 plug Cable
+ VDC 1 Brown
NC 2 White
- VDC 3 Blue
NO 4 Black
Normally open (NO)
Normally Closed (NC)
Connecting the FlexProgrammer, 9701
Disconnect the power supply before
connecting the FlexProgrammer 9701
to the level switch LBFS
Using Teach-In
Sophisticated settings for Teach-In as well as output type, diagnostics, data logging, tag no. and damping can be configured using
the FlexProgrammer 9701, either via Level Switch LBFS or programmed as stand alone.
FlexProgrammer 9701 stand alone menu
Press  and  simultaneously (the vertical arrows) to enter the
FlexProgrammer menu containing e.g. Teach-In and Auto zero functionalities.
Press  or  to browse the menu
Press  to access current menu point
Press  to return to previous menu
