Touch screen programming the CombiView™ , type DFON
Operators instructions
CombiView™, type DFON
www.baumer.com

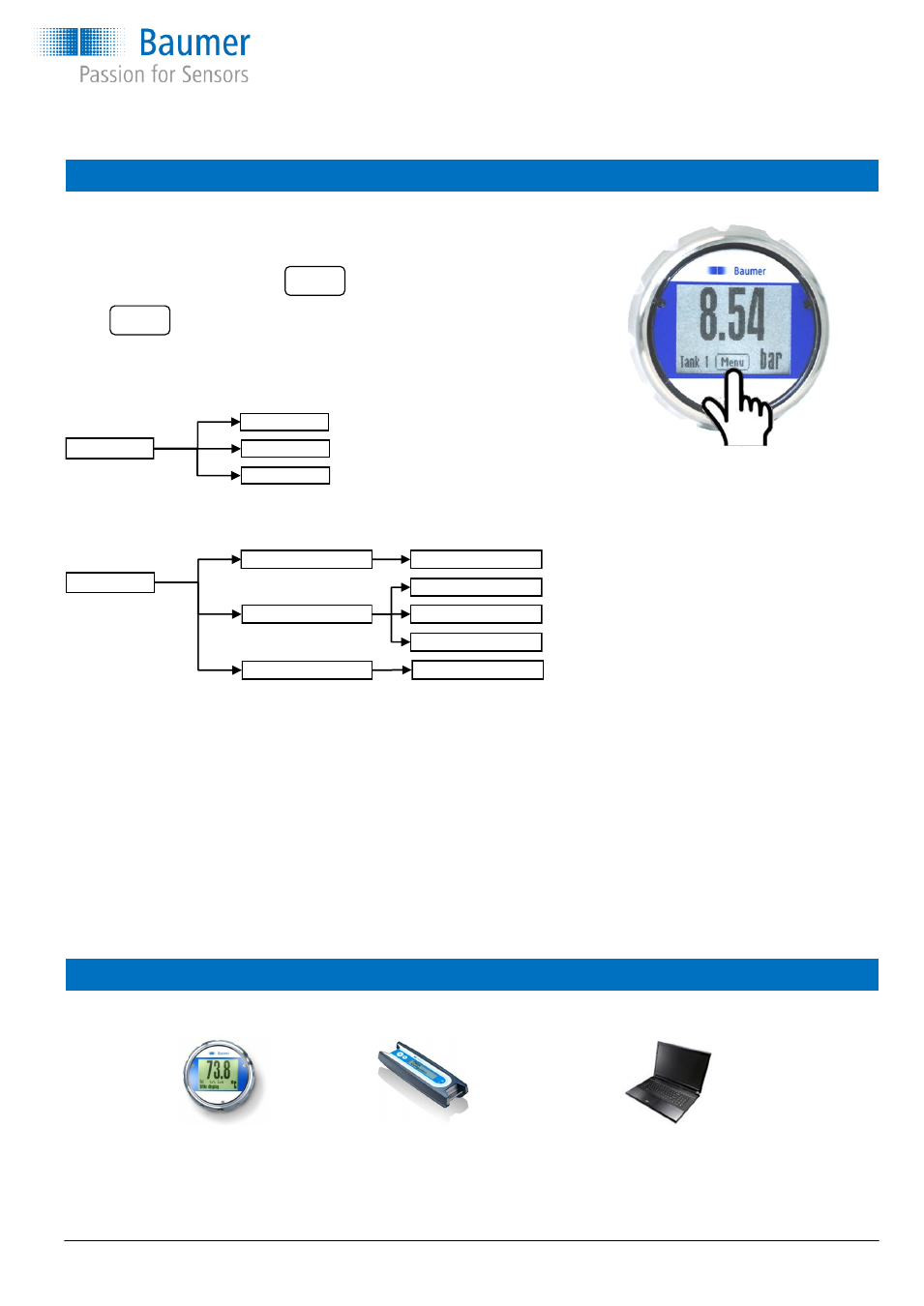

Programming CombiView™, type DFON using the touch screen on the display
Tap on the display screen and the button will appear in the bottom.
Press
and the display may start with one out of two possible selections.
With traditional 4…20 mA loop configuration (connected to pin 1 and 2 on the display)
With a transmitter communicating with the DFON via UnitCom ribbon cable
Instrument name> menu
Enabling the user to set up the connected transmitter
Display menu
Enabling the user to program the DFON display
Data display mode
Enabling the user to program the connected transmitter. The programmed values will also be valid for the DFON display.
(Ignoring whatever setup already set on the display)
Only programming of background colours and relays must be done under “Display menu” / “Configuration”.
Data display mode will communicate with the transmitter digitally, which is more accurate than using the 4…20 mA communica-
tion.
For programming configuration please see page 4
Guidance on programming of DFON display using FlexProgram on your PC and the FlexProgrammer hardware tool will not be
described here. A full manual for this is available on Baumer home page.
Please see or download the instruction from below internet address:
www.baumer.com → download → product documentation → assembly instructions/Operation instructions/Manuals → Programming the DFON
Operators instructions: 11112759 Page 3 / 8
MENU
MENU
Display menu
Configuration
Display setup
Diagnostics
Display menu
Instrument name menu
Display setup
Data display mode
Instrument name menu
Instrument name menu
Instrument name menu
Instrument name menu
Instrument name menu
Programming the CombiView™, type DFON with the FlexProgram and FlexProgrammer
