Example of Application
LSP Output
21.6...20 mA
Set point 100% = 20 mA
20...4 mA
Set point 0% = 4 mA
2.4 mA
4...2.4 mA
21.6 mA

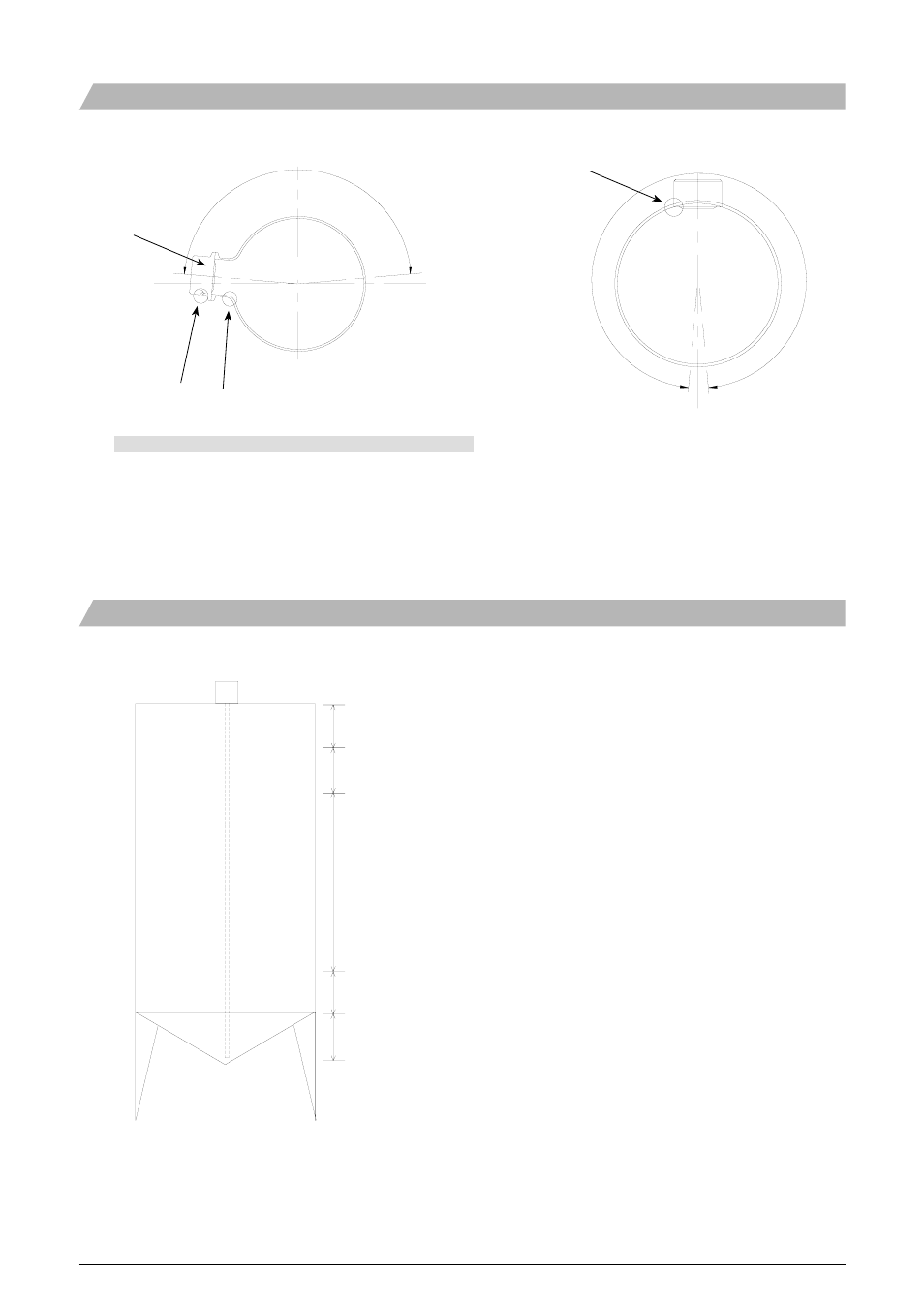

Mounting of 3A Approved Products
Max. ± 85°
Max. ± 175°
5)
1)
2)
3)
4)
Installation of 3A approved products:
1) Use only a 3A approved counter part.
2) The inspection hole should be visible and drained.
3) Mount the instrument in a self drained position.
4) Level the inner surface of the pipe with the counter part.
5) Weldings should be grinded to Ra= 0.8
Refer to the data sheet “Accessories” for O-rings, gaskets and other
accessories.
The LSP 051 and LSP 056 are approved by 3A providing it is mounted
in a 3A approved counter part and installed according to the guidelines
given in the installation manual.
The 3A approved products fulfi ll the FDA demands and follow the
EHEDG guidelines regarding design, materials and fi nishing.
Refer to the 3A marked counter parts in the data sheet “Accessories”.
