Reverse the orientation of the load cell shaft by rotating the gauge 180 degrees. Press DIRECTION to invert
the display. Then attach weight fixtures. The following screens will step through the same procedure as with
the compression direction. Proceed in the same manner.

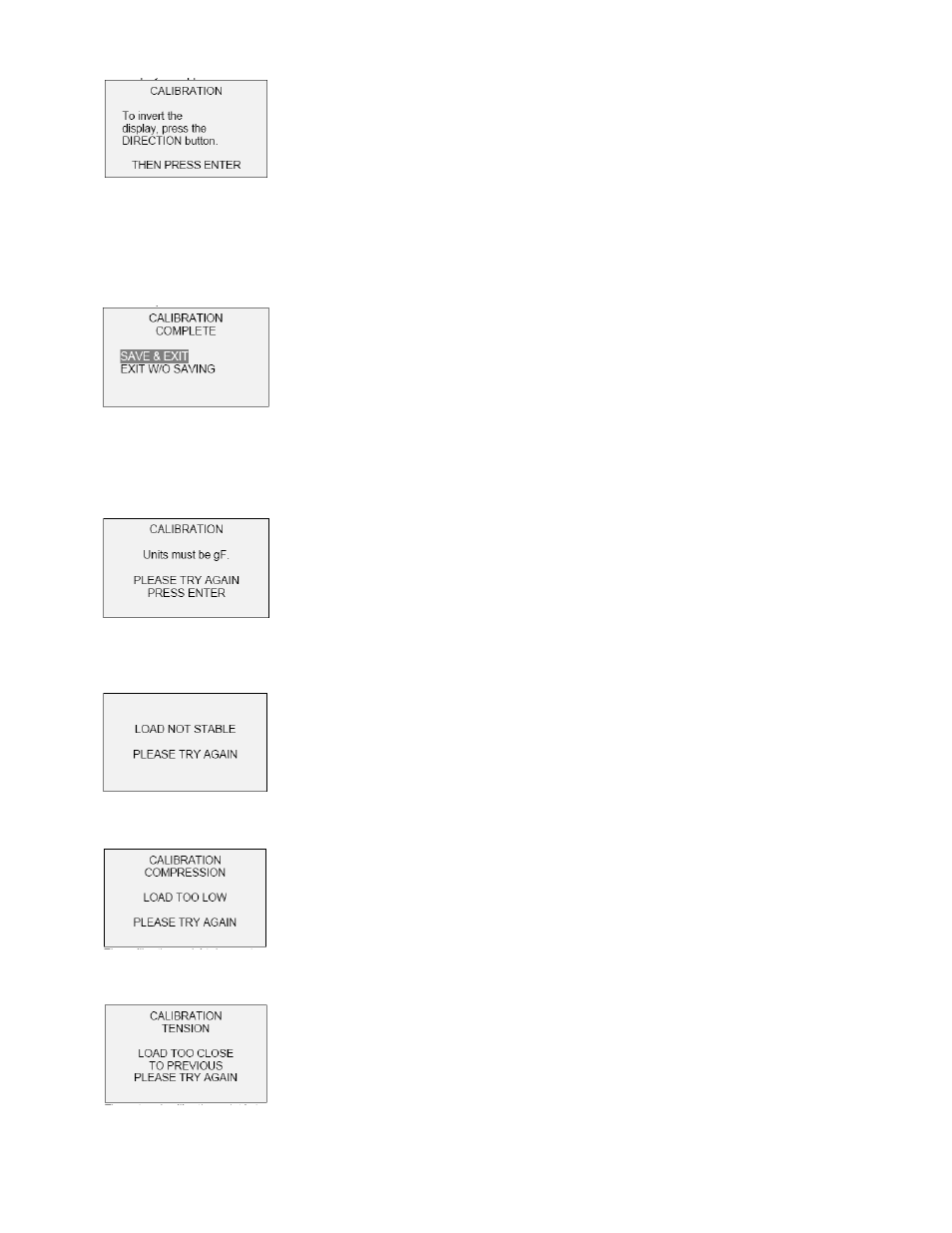

13. At the completion of the tension calibration, the display will appear as follows:
To save the calibration information, select “SAVE & EXIT”. To exit without saving the data select
“EXIT W/O SAVING”.
14. Any errors are reported by the following screens:
Displayed at the start of calibration if a disallowed unit is selected.
Ensure that the load is not swinging, oscillating, or vibrating in any manner. Then try again.
The calibration weight does not match the set value.
The entered calibration point is too close to the previous point.
