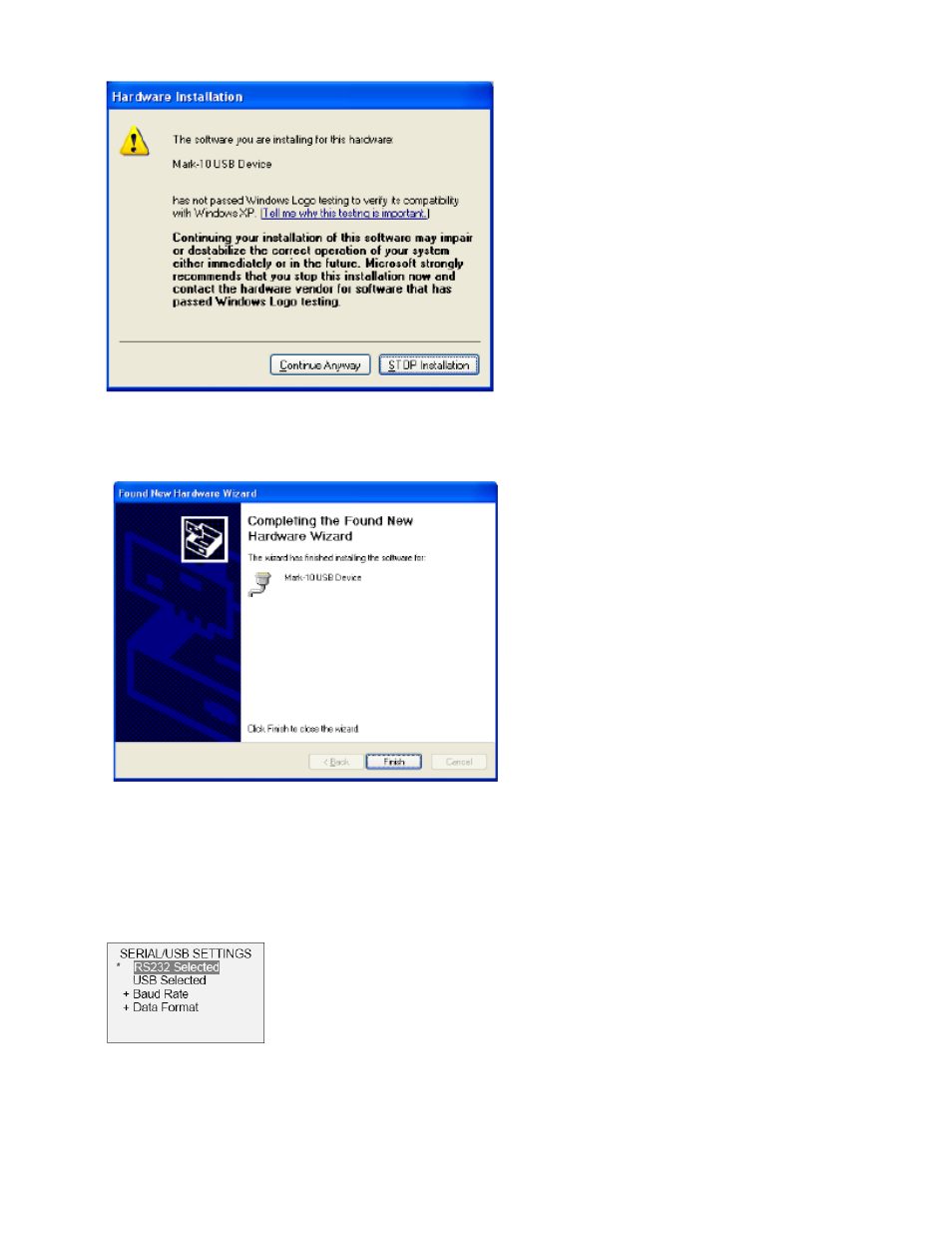

Click “Continue Anyway”.

8. The next, and final, screen appears as follows:

Click “Finish”. The USB device is now installed and ready to use. The COM port number assigned by
Windows may be identified in Device Manager, or in the communication application being used, such as
MESURgauge or HyperTerminal.

9.2 Serial / USB

To set up RS-232 and USB communication, select Serial/USB Settings from the menu. The screen appears
as follows:

Select either RS-232 or USB input (output is always simultaneous through both the USB and RS-232 ports).
RS-232 must be selected when communicating through a test stand controller. When communicating from
the gauge directly to a PC or data collector, either RS-232 or USB can be selected as required. Configure
the baud rate and data format as required for the application. Default values are as follows:
